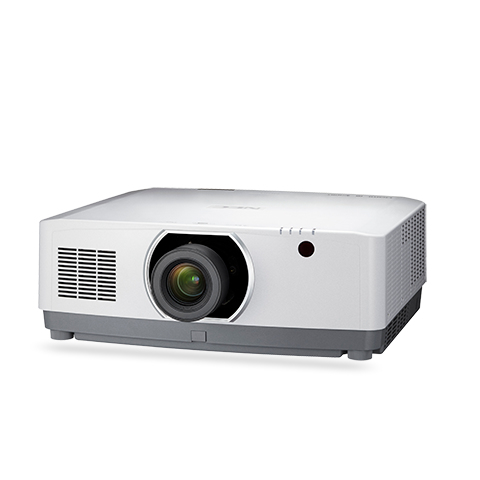

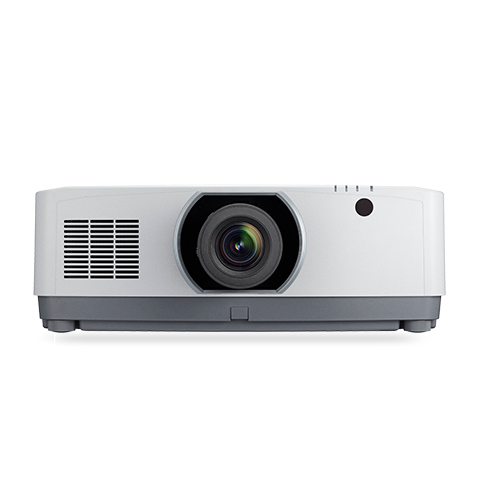

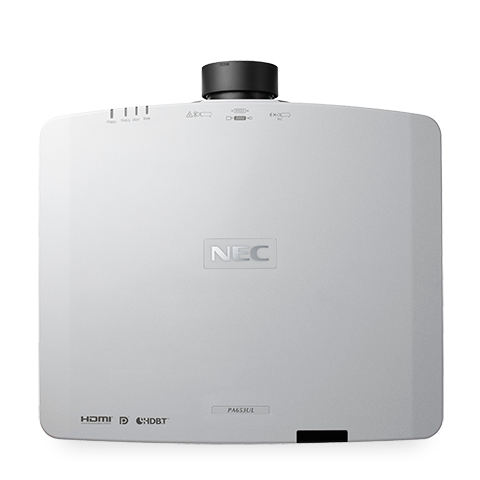

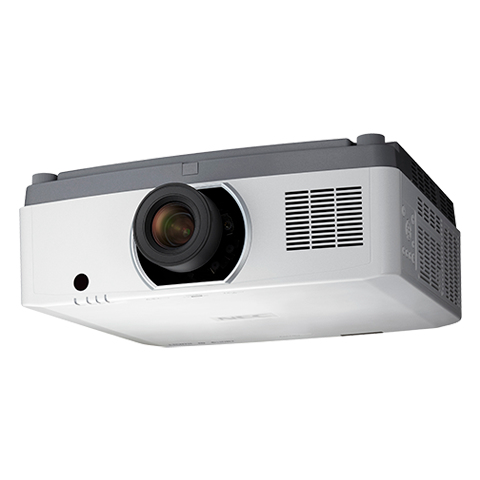

NEC NP-PA653UL data projector Large venue projector 6500 ANSI lumens LCD DCI 4K (4096x2160) White

NEC NP-PA653UL data projector Large venue projector 6500 ANSI lumens LCD DCI 4K (4096x2160) White

Model NP-PA653ULEAN 805736065169

51 specifications
  • TypeLarge venue projector
  • Weight18.2 kg
  • ColourWhite
  • Projector brightness6500 ANSI lumens
  • Service life of light source20000 h
  • Throw ratio0.79 - 1.11:1
See all specifications

Overview

Type
Large venue projector
Weight
18.2 kg
Colour
White
Projector brightness
6500 ANSI lumens
Service life of light source
20000 h
Throw ratio
0.79 - 1.11:1
Brand
NEC
Model
NP-PA653UL
Part number
NP-PA653UL
EAN / UPC
805736065169
Also known as
NEC NP-PA653UL data projector Large venue projector 6500 ANSI lumens LCD DCI 4K (4096x2160) White

Specifications

51 specifications in 13 groups

Projector

Projector brightness6500 ANSI lumens
Projection technologyLCD
Projector native resolutionDCI 4K (4096x2160)
Screen size compatibility1270 - 12700 mm (50 - 500")
Projection distance0.74 - 20.9 m
Contrast ratio (dynamic)2500000:1
Horizontal scan range15 - 153 kHz
Vertical scan range24 - 120 Hz
Keystone correction, horizontal-40 - 40°
Keystone correction, vertical-40 - 40°

Light source

Service life of light source20000 h

Lens system

Throw ratio0.79 - 1.11:1
Horizontal lens shift range-0.3 - 0.3°
Vertical lens shift range-0.1 - 0.5°

Video

Analog signal format systemNTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM
Full HDYes
Supported graphics resolutions640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1400 x 1050 (SXGA+), 1600 x 1200 (UXGA), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA)
Supported video modes480i, 480p, 576i, 576p, 720p, 1080i, 1080p

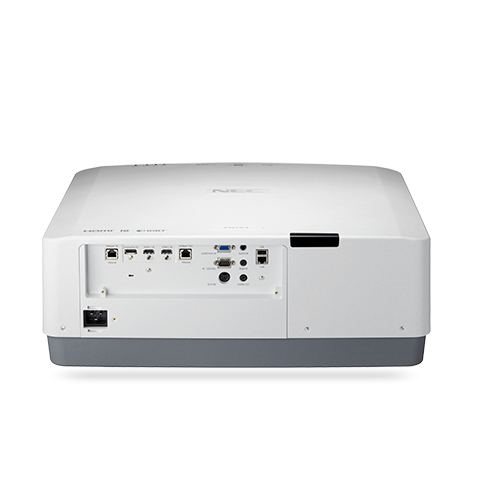

Ports & interfaces

VGA (D-Sub) ports quantity1
HDMI ports quantity2
DisplayPorts quantity1
HDBaseT portYes
USB 2.0 ports quantity1
Serial interface typeRS-232
Remote (IR) output1

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1

Features

HDCPYes
Projection modesCeiling, Front, Rear
Composite syncYes
Separate H/V syncYes
CertificationUL60950-1: 2nd edition, FCC Part15 Subpart B(ANSI C63.4.2014), CAN/CSA C22.2 No.60950-1-07,2nd Edition,2014, ICES-003 Issue6(ANSI C63.4:2014)

Design

Product typeLarge venue projector
Product colourWhite
PlacementDesktop

Power

Power sourceAC
Power consumption (typical)672 W
Power consumption (standby)0.64 W
Power consumption (PowerSave)0.11 W
Power consumption (economy mode)437 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Operational conditions

Operating temperature (T-T)5 - 40 °C
Storage temperature (T-T)-10 - 50 °C
Operating relative humidity (H-H)20 - 80%

Weight & dimensions

Weight18.2 kg
Width580 mm
Depth494 mm
Height208 mm

Packaging content

Remote control includedNo

Other features

RS-232 ports1
