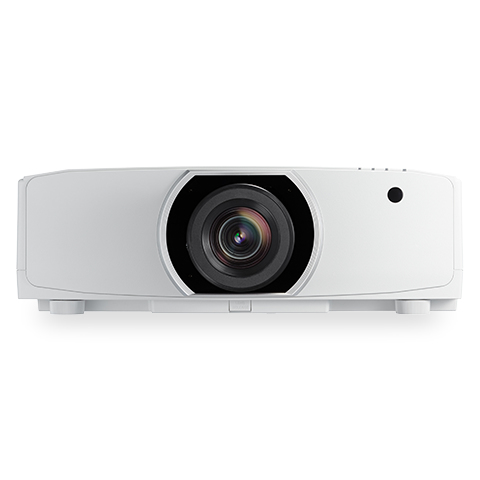

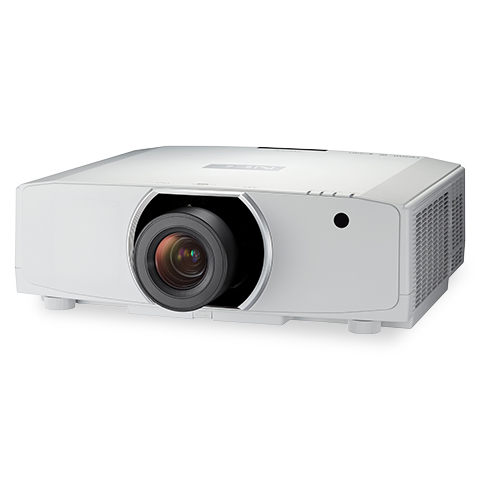

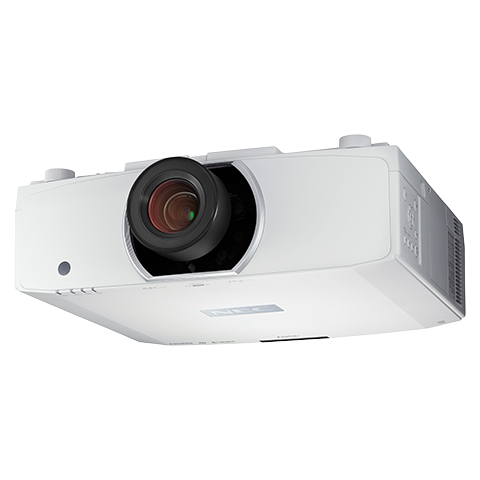

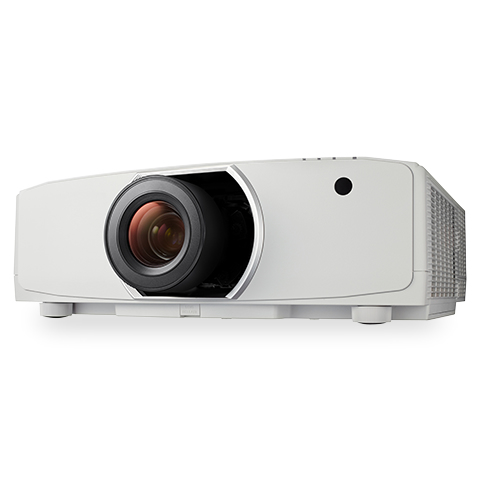

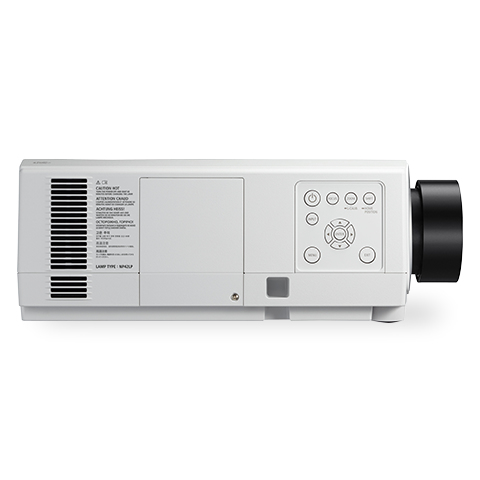

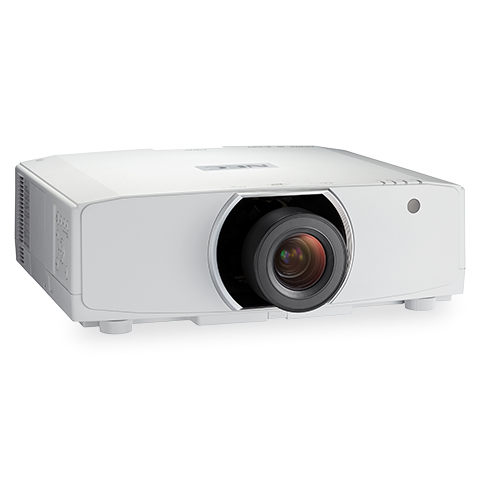

NEC NP-PA653U data projector Standard throw projector 6500 ANSI lumens LCD 1080p (1920x1080) White

NEC NP-PA653U data projector Standard throw projector 6500 ANSI lumens LCD 1080p (1920x1080) White

Model NP-PA653U

80 specifications
  • Noise39 dB
  • TypeStandard throw projector
  • Weight10.2 kg
  • ColourWhite
  • Projector brightness6500 ANSI lumens
  • Light source typeLamp
See all specifications

Overview

Noise
39 dB
Type
Standard throw projector
Weight
10.2 kg
Colour
White
Projector brightness
6500 ANSI lumens
Light source type
Lamp
Brand
NEC
Model
NP-PA653U
Part number
NP-PA653U
Also known as
NEC NP-PA653U data projector Standard throw projector 6500 ANSI lumens LCD 1080p (1920x1080) White

Specifications

80 specifications in 17 groups

Projector

Projector brightness6500 ANSI lumens
Projection technologyLCD
Projector native resolution1080p (1920x1080)
Contrast ratio (typical)8000:1
Screen size compatibility1016 - 12700 mm (40 - 500")
Projection distance0.74 - 20.9 m
Horizontal synchronization (max)153 kHz
Horizontal synchronization (min)15 kHz
Keystone correction, horizontal-40 - 40°
Keystone correction, vertical-30 - 30°
Matrix size1.7 cm (0.67")
Vertical synchronization (max)0.12 kHz
Vertical synchronization (min)0.024 kHz

Light source

Light source typeLamp
Service life of light source4000 h
Service life of light source (economic mode)5000 h
Lamp power370 W
Lamps quantity1 lamp(s)

Lens system

FocusAuto
Horizontal lens shift range-0.3 - 0.3°
Vertical lens shift range-0.1 - 0.6°
Number of optional lenses supported8

Video

Analog signal format systemNTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM
Full HDYes
3DNo
Supported graphics resolutions640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1400 x 1050 (SXGA+), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 4096 x 2160
Supported video modes480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p

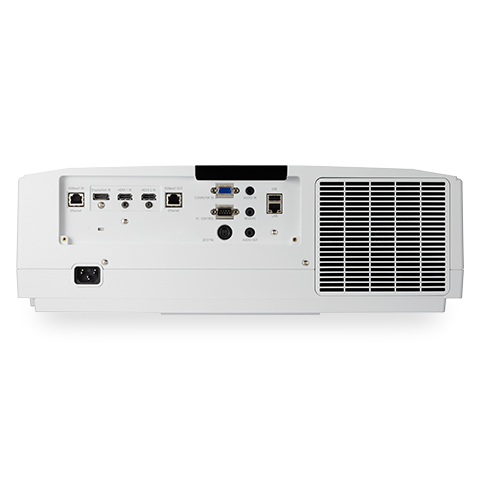

Ports & interfaces

VGA (D-Sub) ports quantity1
HDMI ports quantity2
HDMI connector typeFull-size
Component video (YPbPr/YCbCr) in0
DVI portNo
DisplayPorts quantity1
S-Video inputs quantity0
HDBaseT portYes
USB 2.0 ports quantity1
Audio (L/R) in0
Serial interface typeRS-232
PC Audio inYes
PC Audio outYes
Remote (IR) output1
AC (power) inYes

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Wi-FiNo

Storage

Card reader integratedNo

Features

Noise level39 dB
Noise level (economic mode)33 dB
HDCPYes
Composite syncYes
Separate H/V syncYes
Sync-on-green (SOG)Yes
CertificationUL60950-1, FCC 15 B (ANSI C63.4.2014), CAN/CSA C22.2 No.60950-1-07, ICES-003 6 (ANSI C63.4:2014)

Multimedia

Built-in speaker(s)Yes
RMS rated power10 W

Design

Product typeStandard throw projector
Product colourWhite
PlacementDesktop

Display

Built-in displayNo

Power

Power sourceAC
Power consumption (typical)506 W
Power consumption (standby)0.7 W
Power consumption (PowerSave)0.3 W
Power consumption (economy mode)390 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Software

Mac compatibilityYes

Operational conditions

Operating temperature (T-T)5 - 40 °C
Storage temperature (T-T)-10 - 50 °C
Operating relative humidity (H-H)20 - 80%

Weight & dimensions

Weight10.2 kg
Width503 mm
Depth411 mm
Height168 mm

Packaging content

Remote control includedYes
Batteries includedYes
Cables includedAC
ManualYes
Quick start guideYes

Other features

RS-232 ports1
