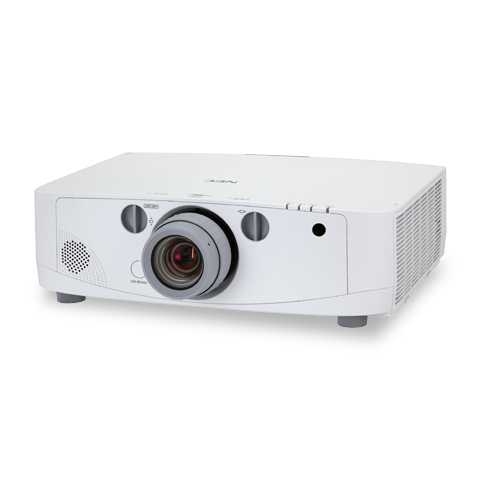

NEC NP-PA500X-13ZL data projector Large venue projector 5000 ANSI lumens LCD XGA (1024x768) White

NEC NP-PA500X-13ZL data projector Large venue projector 5000 ANSI lumens LCD XGA (1024x768) White

Model NP-PA500X-13ZLEAN 805736037814

74 specifications
  • Noise38 dB
  • TypeLarge venue projector
  • Weight7.7 kg
  • ColourWhite
  • Projector brightness5000 ANSI lumens
  • Light source typeLamp
See all specifications

Overview

Noise
38 dB
Type
Large venue projector
Weight
7.7 kg
Colour
White
Projector brightness
5000 ANSI lumens
Light source type
Lamp
Brand
NEC
Model
NP-PA500X-13ZL
Part number
NP-PA500X-13ZL
EAN / UPC
805736037814, 872182782575, 8057360378142
Also known as
NEC NP-PA500X-13ZL data projector Large venue projector 5000 ANSI lumens LCD XGA (1024x768) White

Specifications

74 specifications in 16 groups

Projector

Projector brightness5000 ANSI lumens
Projection technologyLCD
Projector native resolutionXGA (1024x768)
Contrast ratio (typical)2000:1
Native aspect ratio4:3
Supported aspect ratios4:3
Screen size compatibility635 - 12700 mm (25 - 500")
Projection distance0.74 - 20.9 m
Horizontal scan range15 - 108 kHz
Vertical scan range48 - 120 Hz
Keystone correction, horizontal-40 - 40°
Keystone correction, vertical-30 - 30°
Matrix size2.01 cm (0.79")

Light source

Light source typeLamp
Service life of light source3000 h
Service life of light source (economic mode)4000 h
Lamp power330 W
Lamp power (economic mode)264 W

Lens system

FocusManual
Focal length range24.4 - 32.5 mm
Aperture range (F-F)1.7 - 2.2
Horizontal lens shift range-0.3 - 0.3°
Vertical lens shift range-0.1 - 0.5°

Video

Analog signal format systemNTSC, NTSC 4.43, PAL, PAL M, PAL N, SECAM
Full HDYes
HD-ReadyYes
3DNo
Supported graphics resolutions1024 x 768 (XGA), 1280 x 1024 (SXGA), 1400 x 1050 (SXGA+), 1600 x 1200 (UXGA), 1920 x 1200 (WUXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
Supported video modes1080i, 1080p, 480i, 480p, 576i, 576p, 720i, 720p

Ports & interfaces

VGA (D-Sub) ports quantity3
HDMI ports quantity1
Component video (YPbPr/YCbCr) in0
Composite video in1
DVI portNo
DisplayPorts quantity1
S-Video inputs quantity1
USB 2.0 ports quantity1
Audio (L/R) in1
Audio (L/R) out1
Serial interface typeRS-232
BNC input ports5

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1

Storage

Card reader integratedNo
Compatible memory cardsNot supported

Features

Noise level38 dB
Noise level (economic mode)31 dB
HDCPYes
CertificationUL, C-UL, NOM

Multimedia

Built-in speaker(s)Yes
Number of built-in speakers1
RMS rated power10 W

Design

Product typeLarge venue projector
Product colourWhite
PlacementDesktop, Ceiling

Display

Built-in displayNo

Power

Power sourceAC
Power consumption (typical)464 W
Power consumption (standby)16 W
Power consumption (PowerSave)372 W
AC input voltage220 - 240 V
AC input frequency50 - 60 Hz

Operational conditions

Operating temperature (T-T)5 - 40 °C
Storage temperature (T-T)-10 - 50 °C
Operating relative humidity (H-H)20 - 80%

Weight & dimensions

Weight7.7 kg
Width499 mm
Depth366 mm
Height164 mm

Packaging content

Remote control includedYes
Batteries includedYes
Cables includedAC, VGA
Quick start guideYes

Other features

RS-232 ports1
