NP-PA1505UL-B data projector Standard throw projector 15000 ANSI lumens LCD WUXGA (1920x1200) Black
Model NP-PA1505UL-BEAN 805736078541
59 specifications
- Noise38 dB
- TypeStandard throw projector
- Weight28.9 kg
- ColourBlack
- Projector brightness15000 ANSI lumens
- Light source typeLaser
Overview
- Noise
- 38 dB
- Type
- Standard throw projector
- Weight
- 28.9 kg
- Colour
- Black
- Projector brightness
- 15000 ANSI lumens
- Light source type
- Laser
- Brand
- NEC
- Category
- Data Projector
- Model
- NP-PA1505UL-B
- Part number
- NP-PA1505UL-B
- EAN / UPC
- 805736078541
- Also known as
- NEC NP-PA1505UL-B data projector Standard throw projector 15000 ANSI lumens LCD WUXGA (1920x1200) Black
Specifications
59 specifications in 13 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 15000 ANSI lumens |
| Projection technology | LCD |
| Projector native resolution | WUXGA (1920x1200) |
| Contrast ratio (typical) | 3000000:1 |
| Native aspect ratio | 16:10 |
| Screen size compatibility | 1524 - 12700 mm (60 - 500") |
| Projection distance | 1.09 - 43 m |
| Projector brightness (economic mode) | 13500 ANSI lumens |
| Horizontal synchronization (max) | 153 kHz |
| Horizontal synchronization (min) | 24 kHz |
| Keystone correction, horizontal | -40 - 40° |
| Keystone correction, vertical | -30 - 30° |
| Vertical synchronization (max) | 120 kHz |
| Vertical synchronization (min) | 50 kHz |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
Lens system
| Specification | Value |
|---|---|
| Focus | Motorized |
| Zoom capability | Yes |
| Horizontal lens shift range | -25 - 25% |
| Vertical lens shift range | -65 - 65% |
Video
| Specification | Value |
|---|---|
| Analog signal format system | NTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM |
| Full HD | Yes |
| Supported graphics resolutions | 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1400 x 1050 (SXGA+), 1600 x 1200 (UXGA), 1920 x 1200 (WUXGA), 3840 x 2160 |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |

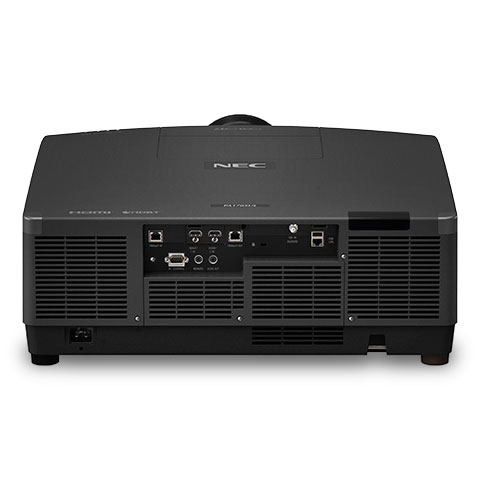

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 2 |
| HDMI version | 2.2/1.4 |
| HDBaseT port | Yes |
| USB 2.0 ports quantity | 1 |
| Serial interface type | RS-232 |
| PC Audio out | Yes |
| 3G-SDI input | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
Features
| Specification | Value |
|---|---|
| Noise level | 38 dB |
| HDCP | Yes |
| Certification | USA UL60950-1: 2nd edition, FCC Part15 Subpart B(ANSI C63.4.2014), CAN/CSA C22.2 No.62368-1-18,3rd Edition, ICES-003 Issue 7(ANSI C63.4-2014) |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 960 W |
| Power consumption (standby) | 0.15 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50/60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -10 - 50 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 20 - 80% |
| Operating altitude | 0 - 12000 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 28.9 kg |
| Width | 599 mm |
| Depth | 490 mm |
| Height | 238 mm |
| Package width | 739 mm |
| Package depth | 629 mm |
| Package height | 382 mm |
| Package weight | 32.6 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Manual | Yes |
Technical details
| Specification | Value |
|---|---|
| Current | 11.6 A |
