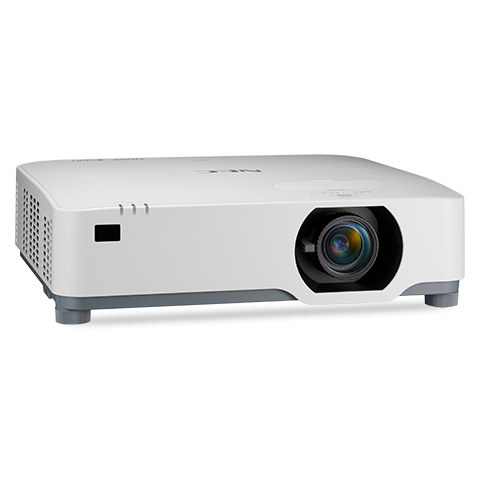

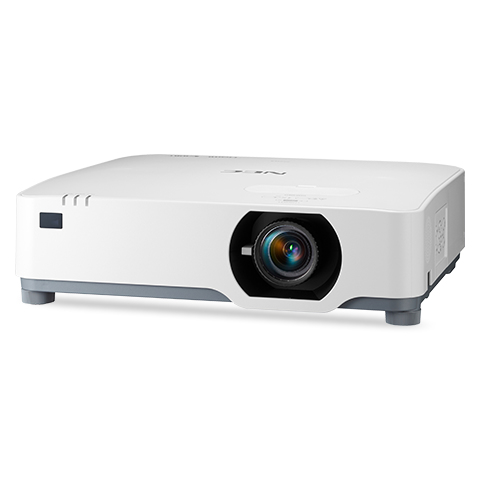

NP-P605UL Standard throw projector 6000 ANSI lumens 3LCD WUXGA (1920x1200) White
Model NP-P605ULPart no. 60004811EAN 5028695613751
76 specifications
- Noise28 dB
- TypeStandard throw projector
- Weight9.7 kg
- ColourWhite
- Projector brightness6000 ANSI lumens
- Light source typeLaser
Overview
- Noise
- 28 dB
- Type
- Standard throw projector
- Weight
- 9.7 kg
- Colour
- White
- Projector brightness
- 6000 ANSI lumens
- Light source type
- Laser
- Brand
- NEC
- Category
- Data Projector
- Model
- NP-P605UL
- Part number
- 60004811
- EAN / UPC
- 5028695613751
- Also known as
- NEC NP-P605UL Standard throw projector 6000 ANSI lumens 3LCD WUXGA (1920x1200) White
Specifications
76 specifications in 15 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 6000 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | WUXGA (1920x1200) |
| Contrast ratio (typical) | 600000:1 |
| Native aspect ratio | 16:10 |
| Screen size compatibility | 635 - 7620 mm (25 - 300") |
| Projection distance | 0.8 - 13.5 m |
| Horizontal scan range | 15 - 100 kHz |
| Vertical scan range | 50 - 120 Hz |
| Keystone correction, horizontal | -30 - 30° |
| Keystone correction, vertical | -30 - 30° |
| Matrix size | 1.63 cm (0.64") |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Focal length range | 17.2 - 27.6 mm |
| Aperture range (F-F) | 1.5 - 2.1 |
| Zoom capability | Yes |
| Zoom ratio | 1.6:1 |
| Throw ratio | 1.23 - 2.0:1 |
Video
| Specification | Value |
|---|---|
| Analog signal format system | NTSC 3.58, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM |
| Full HD | Yes |
| 3D | No |
| Supported graphics resolutions | 320 x 288 (QVGA), 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 768 (WXGA), 1360 x 768 (WXGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1200 (WUXGA) |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |

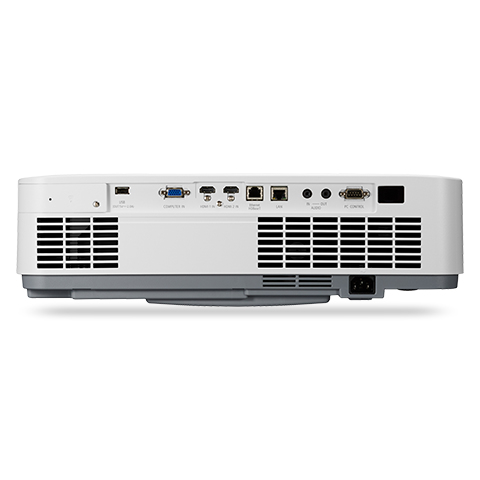

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 2 |
| HDMI connector type | Full-size |
| HDMI version | 1.4 |
| Component video (YPbPr/YCbCr) in | 0 |
| Composite video in | 0 |
| DVI port | No |
| S-Video inputs quantity | 0 |
| HDBaseT port | Yes |

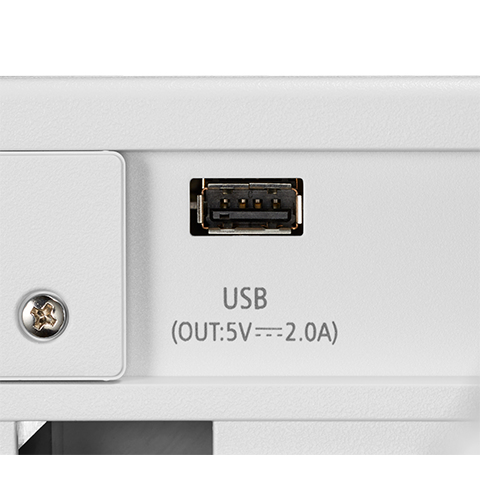

| USB 2.0 ports quantity | 1 |
| Serial interface type | RS-232 |
| PC Audio out | Yes |
| Mobile High-Definition Link (MHL) | No |
Network
| Specification | Value |
|---|---|
| Smart TV | No |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Wi-Fi | No |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Noise level | 28 dB |
| Noise level (economic mode) | 19 dB |
| HDCP | Yes |
| Certification | UL60950-1:2nd 2014, UL62368-1:2nd, FDA, FCC 15 B(ANSI C63.4:2014), 65, TPCH, CAN/CSA C22.2 No.60950-1-07,2nd 2014, ICES-003 6(ANSI C63.4:2014) |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| RMS rated power | 20 W |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Market positioning | Presentation |
| Product colour | White |
| Placement | Desktop |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 261 W |
| Power consumption (standby) | 1.4 W |
| Power consumption (max) | 367 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Auto power off | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Storage temperature (T-T) | -10 - 50 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 20 - 80% |
| Operating altitude | 0 - 2600 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 9.7 kg |
| Width | 480 mm |
| Depth | 142.5 mm |
| Height | 407 mm |
| Package width | 591 mm |
| Package depth | 259 mm |
| Package height | 491 mm |
| Package weight | 12.8 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85286200 |
