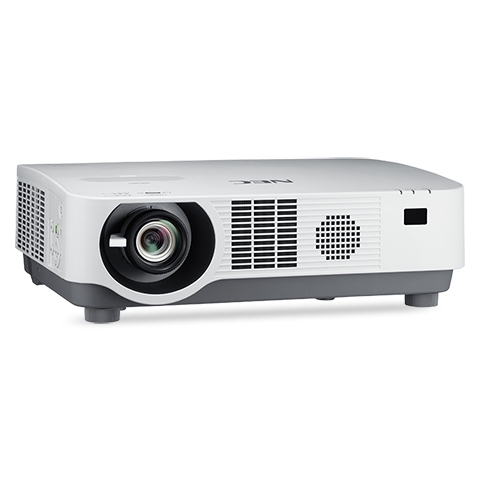

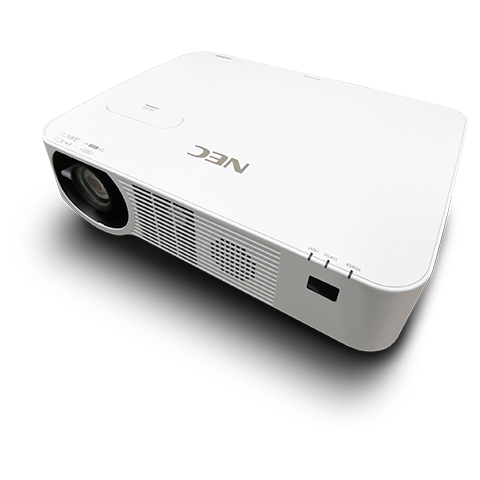

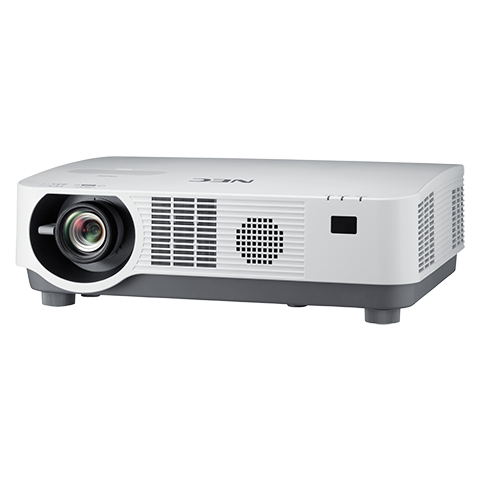

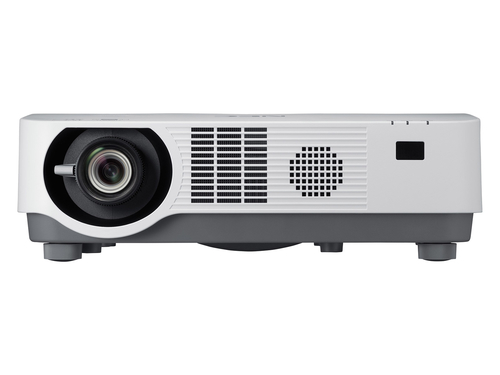

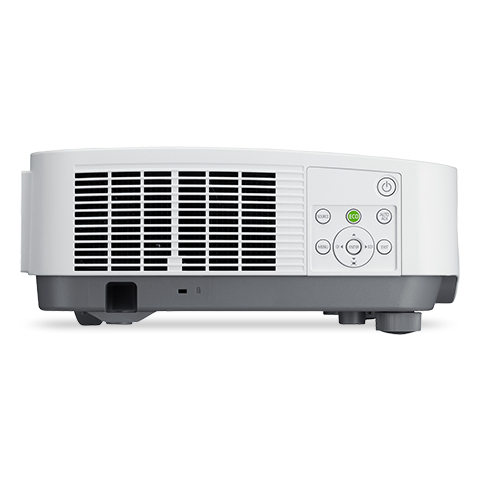

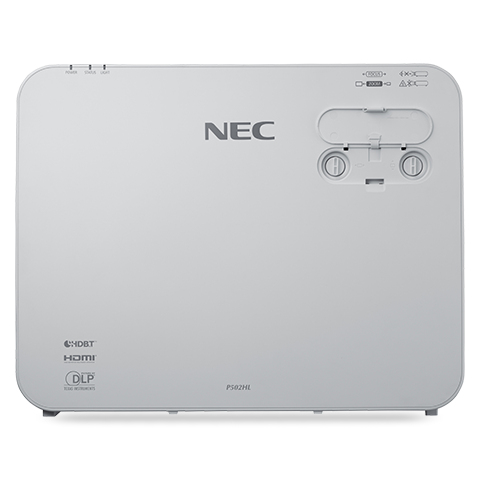

NEC NP-P502WL-2 data projector Ceiling-mounted projector 5000 ANSI lumens DLP WUXGA (1920x1200) White

NEC NP-P502WL-2 data projector Ceiling-mounted projector 5000 ANSI lumens DLP WUXGA (1920x1200) White

Model NP-P502WL-2EAN 805736064773

52 specifications
  • TypeCeiling-mounted projector
  • Weight8.8 kg
  • ColourWhite
  • Projector brightness5000 ANSI lumens
  • Service life of light source20000 h
  • FocusManual
See all specifications

Overview

Type
Ceiling-mounted projector
Weight
8.8 kg
Colour
White
Projector brightness
5000 ANSI lumens
Service life of light source
20000 h
Focus
Manual
Brand
NEC
Model
NP-P502WL-2
Part number
NP-P502WL-2
EAN / UPC
805736064773
Also known as
NEC NP-P502WL-2 data projector Ceiling-mounted projector 5000 ANSI lumens DLP WUXGA (1920x1200) White

Specifications

52 specifications in 13 groups

Projector

Projector brightness5000 ANSI lumens
Projection technologyDLP
Projector native resolutionWUXGA (1920x1200)
Contrast ratio (typical)15000:1
Screen size compatibility762 - 7620 mm (30 - 300")
Projection distance0.8 - 14.2 m
Horizontal scan range15 - 100 kHz
Vertical scan range50 - 120 Hz
Keystone correction, horizontal-25 — 25
Keystone correction, vertical-30 - 30°

Light source

Service life of light source20000 h

Lens system

FocusManual
Focal length range18.2 - 31.1 mm
F-number (relative aperture)2
Zoom ratio1.7:1
Throw ratio1.3 - 2.2
Horizontal lens shift range-0.25 - 0.25°

Video

Analog signal format systemNTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM
Supported graphics resolutions640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1400 x 1050 (SXGA+), 1600 x 1200 (UXGA), 1920 x 1200 (WUXGA)
Supported video modes480i, 480p, 576i, 576p, 720p, 1080i, 1080p

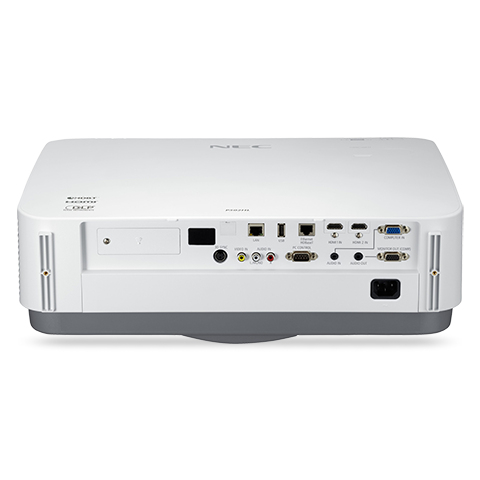

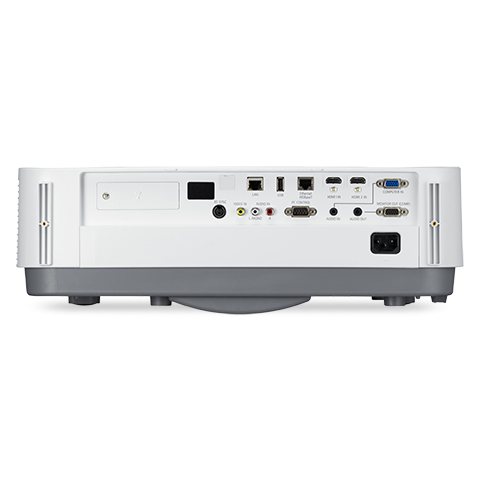

Ports & interfaces

VGA (D-Sub) ports quantity1
HDMI ports quantity2
HDBaseT portYes
Serial interface typeRS-232
Remote (IR) output1

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1

Features

Projection modesCeiling, Front, Rear
Composite syncYes
Separate H/V syncYes
Sync-on-green (SOG)Yes
CertificationUSA UL 1950 FCC Class B, Canada CSA 950 (C-UL), NOM

Multimedia

Built-in speaker(s)Yes
RMS rated power20 W

Design

Product typeCeiling-mounted projector
Product colourWhite
PlacementCeiling

Power

Power sourceAC
Power consumption (typical)530 W
Power consumption (standby)6 W
Power consumption (PowerSave)0.5 W
Power consumption (economy mode)420 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Operational conditions

Operating temperature (T-T)5 - 40 °C
Storage temperature (T-T)-10 - 50 °C
Operating relative humidity (H-H)20 - 80%

Weight & dimensions

Weight8.8 kg
Width469 mm
Depth365 mm
Height137 mm

Other features

RS-232 ports1
