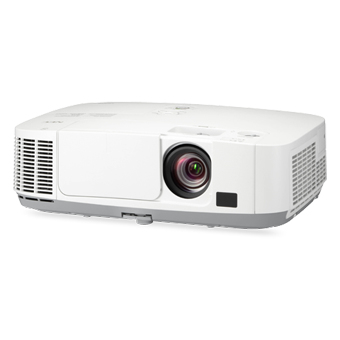

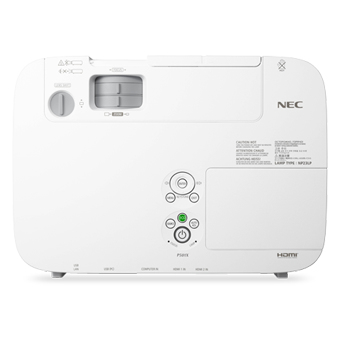

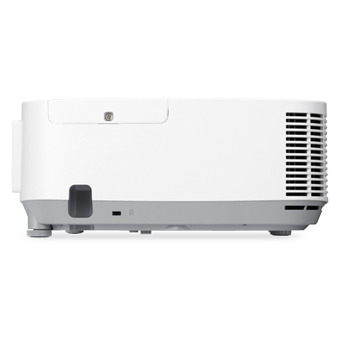

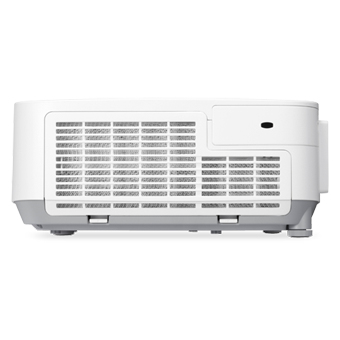

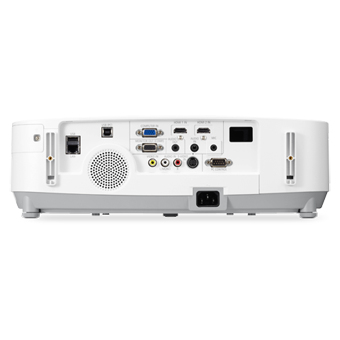

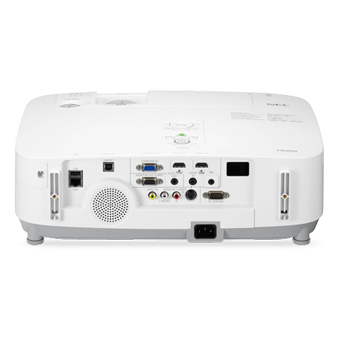

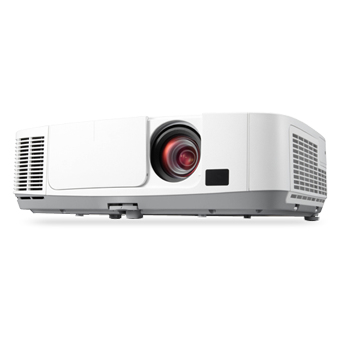

NEC NP-P501X data projector Standard throw projector 5000 ANSI lumens LCD XGA (1024x768) White

NEC NP-P501X data projector Standard throw projector 5000 ANSI lumens LCD XGA (1024x768) White

Model NP-P501XEAN 163121204846

90 specifications
  • Noise37 dB
  • TypeStandard throw projector
  • Weight4.1 kg
  • ColourWhite
  • Projector brightness5000 ANSI lumens
  • Light source typeLamp
See all specifications

Overview

Noise
37 dB
Type
Standard throw projector
Weight
4.1 kg
Colour
White
Projector brightness
5000 ANSI lumens
Light source type
Lamp
Brand
NEC
Model
NP-P501X
Part number
NP-P501X
EAN / UPC
163121204846, 8057360454518
Also known as
NEC NP-P501X data projector Standard throw projector 5000 ANSI lumens LCD XGA (1024x768) White

Specifications

90 specifications in 16 groups

Projector

Projector brightness5000 ANSI lumens
Projection technologyLCD
Projector native resolutionXGA (1024x768)
Contrast ratio (typical)4000:1
Native aspect ratio4:3
Supported aspect ratios4:3, 5:4, 15:9, 16:9, 16:10
Screen size compatibility635 - 7620 mm (25 - 300")
Projection distance0.6 - 13.8 m
Number of colours16.78 million colours
Horizontal scan range15 - 100 kHz
Vertical scan range50 - 120 Hz
Keystone correction, horizontal- 30 - 30°
Keystone correction, vertical- 30 - 30°
Matrix size1.6 cm (0.63")

Light source

Light source typeLamp
Service life of light source3500 h
Service life of light source (economic mode)6000 h
Lamp power270 W
Lamp power (economic mode)160 W
Lamps quantity1 lamp(s)

Lens system

FocusManual
Focal length range17.4 - 29 mm
Aperture range (F-F)1.7 - 2.1
Zoom capabilityYes
Zoom typeManual
Zoom ratio1.7:1

Video

Analog signal format systemNTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM
Full HDNo
3DNo
Supported graphics resolutions1024 x 768 (XGA), 1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
Supported video modes1080i, 1080p, 480i, 480p, 576i, 576p, 720p

Ports & interfaces

VGA (D-Sub) ports quantity2
HDMI ports quantity2
Component video (YPbPr/YCbCr) in0
Composite video in1
DVI portNo
S-Video inputs quantity1
USB 2.0 ports quantity2
Audio (L/R) in1
Headphone outputs1
Microphone inYes
Serial interface typeRS-232
USB connector typeUSB Type-A, USB Type-B
CardBus PCMCIA slot typeNo
CardBus PCMCIA slots quantity0
Progressive scan outputYes
AC (power) inYes

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Wi-FiYes
BluetoothNo

Storage

Card reader integratedNo
Optical disc player typeNot included

Features

Noise level37 dB
Noise level (economic mode)30 dB
HDCPYes
Preset modesCinema, Presentation, sRGB
On Screen Display (OSD)Yes
CertificationUL60950-1, CSA60950-1, FCC Part 15 Class B, ICES-03 Class B, NOM-001-SCFI-1993

Multimedia

Built-in speaker(s)Yes
Number of built-in speakers1
RMS rated power16 W
Video formats supportedH.264, MPEG, MPEG2, VC-1, WMV9
Image formats supportedBMP, GIF, JPG, PNG
Audio formats supportedAAC, WMA
Document formats supportedPDF, PPT, PPTX, XLS, XLSX

Design

Product typeStandard throw projector
Product colourWhite
PlacementDesktop
LED indicatorsYes

Power

Power sourceAC
Power consumption (typical)357 W
Power consumption (standby)10 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Software

Windows operating systems supportedYes
Mac operating systems supportedYes

Operational conditions

Operating temperature (T-T)5 - 40 °C
Storage temperature (T-T)-10 - 50 °C
Operating relative humidity (H-H)20 - 80%

Weight & dimensions

Weight4.1 kg
Width398 mm
Depth282 mm
Height115 mm

Packaging content

Remote control includedYes
Remote control typeIR
ManualYes
Quick start guideYes

Other features

Built-in touchpadNo
RS-232 ports1
