NP-ME382U data projector Standard throw projector 3800 ANSI lumens LCD WUXGA (1920x1200) White
Model NP-ME382UEAN 805736070217
96 specifications
- Noise37 dB
- TypeStandard throw projector
- Weight3.5 kg
- ColourWhite
- Projector brightness3800 ANSI lumens
- Light source typeLamp
Overview
- Noise
- 37 dB
- Type
- Standard throw projector
- Weight
- 3.5 kg
- Colour
- White
- Projector brightness
- 3800 ANSI lumens
- Light source type
- Lamp
- Brand
- NEC
- Category
- Data Projector
- Model
- NP-ME382U
- Part number
- NP-ME382U
- EAN / UPC
- 805736070217
- Also known as
- NEC NP-ME382U data projector Standard throw projector 3800 ANSI lumens LCD WUXGA (1920x1200) White
Specifications
96 specifications in 17 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 3800 ANSI lumens |
| Projection technology | LCD |
| Projector native resolution | WUXGA (1920x1200) |
| Contrast ratio (typical) | 16000:1 |
| Native aspect ratio | 16:10 |
| Screen size compatibility | 762 - 7620 mm (30 - 300") |
| Projection distance | 0.8 - 12.9 m |
| Horizontal synchronization (max) | 100 kHz |
| Horizontal synchronization (min) | 15 kHz |
| Keystone correction, horizontal | -20 - 20° |
| Keystone correction, vertical | -30 - 30° |
| Vertical synchronization (max) | 120 kHz |
| Vertical synchronization (min) | 50 kHz |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 10000 h |
| Service life of light source (economic mode) | 12000 h |
| Lamp type | AC HID |
| Lamp power | 225 W |
| Lamps quantity | 1 lamp(s) |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Focal length range | 17.2 - 27.7 mm |
| Aperture range (F-F) | 1.5 - 2.08 |
| Zoom capability | Yes |
| Zoom type | Manual |
| Zoom ratio | 1.6:1 |
| Throw ratio | 1.2 - 2.0:1 |
| Magnification | 1.6x |
Video
| Specification | Value |
|---|---|
| Analog signal format system | NTSC 3.58, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM |
| Full HD | No |
| 3D | No |
| Supported graphics resolutions | 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1200 (WUXGA) |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |

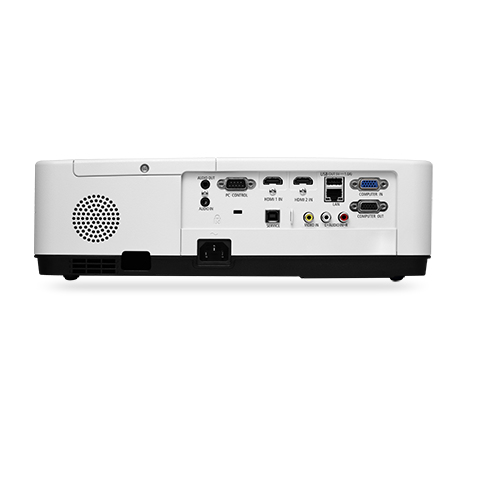

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 2 |
| HDMI connector type | Full-size |
| Component video (YPbPr/YCbCr) in | 1 |
| DVI port | No |
| USB 2.0 ports quantity | 1 |
| USB 2.0 Type-B ports quantity | 1 |
| Audio (L/R) in | 1 |
| Audio (L/R) out | 1 |
| Headphone outputs | 1 |
| Serial interface type | RS-232 |
| PC in (D-Sub) | Yes |
| Remote (IR) output | 1 |
Network
| Specification | Value |
|---|---|
| Smart TV | No |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | No |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Noise level | 37 dB |
| Noise level (high brightness) | 37 dB |
| Noise level (economic mode) | 29 dB |
| Noise level (full-load mode, 100%) | 37 dB |
| HDCP | Yes |
| Projection modes | Ceiling, Front, Rear |
| Plug and Play | Yes |
| Certification | UL (UL60950-1/UL62368-1) FCC Part15 Class B, Canada: C-UL (CSA60950-1) ICES-003 Class B, NOM |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Market positioning | Presentation |
| Product colour | White |
| Placement | Desktop |
| LED indicators | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 295 W |
| Power consumption (max) | 295 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Auto power off | Yes |
Software
| Specification | Value |
|---|---|
| Mac compatibility | Yes |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mobile operating systems supported | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Storage temperature (T-T) | -10 - 50 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 3.5 kg |
| Width | 345 mm |
| Depth | 261 mm |
| Height | 104.6 mm |
| Package width | 450 mm |
| Package depth | 390 mm |
| Package height | 200 mm |
| Package weight | 5 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Remote control type | IR |
| AC adapter included | Yes |
| Manual | Yes |
| Quick start guide | Yes |
| Resource CD | Yes |
| Warranty card | Yes |
Other features
| Specification | Value |
|---|---|
| Maximum analog resolution | 1920 x 1200 pixels |
| Maximum digital resolution | 3840 x 2160 pixels |
| Number of bulbs | 1 bulb(s) |
| RS-232 ports | 1 |
