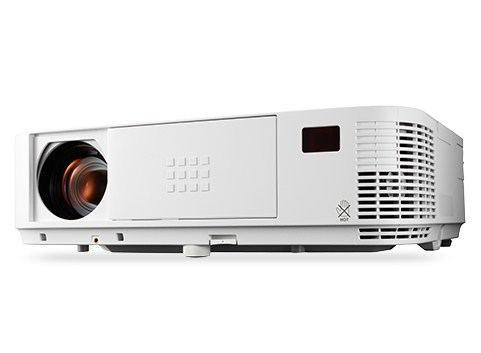

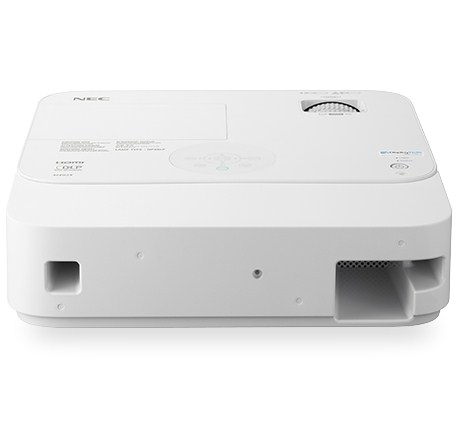

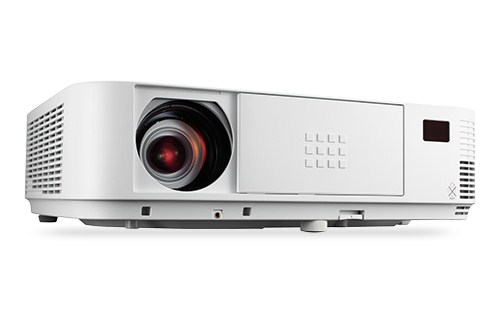

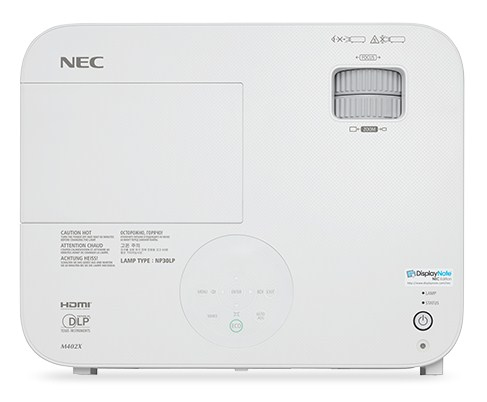

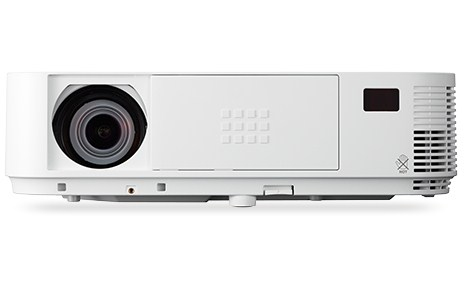

NEC NP-M322X data projector Standard throw projector 3200 ANSI lumens DLP XGA (1024x768) White

NEC NP-M322X data projector Standard throw projector 3200 ANSI lumens DLP XGA (1024x768) White

Model NP-M322XEAN 746320074283

90 specifications
  • Noise38 dB
  • TypeStandard throw projector
  • Weight3.49 kg
  • ColourWhite
  • Projector brightness3200 ANSI lumens
  • Light source typeLamp
See all specifications

Overview

Noise
38 dB
Type
Standard throw projector
Weight
3.49 kg
Colour
White
Projector brightness
3200 ANSI lumens
Light source type
Lamp
Brand
NEC
Model
NP-M322X
Part number
NP-M322X
EAN / UPC
746320074283, 805736051827, 8057360518272
Also known as
NEC NP-M322X data projector Standard throw projector 3200 ANSI lumens DLP XGA (1024x768) White

Specifications

90 specifications in 17 groups

Projector

Projector brightness3200 ANSI lumens
Projection technologyDLP
Projector native resolutionXGA (1024x768)
Contrast ratio (typical)10000:1
Supported aspect ratios4:3, 16:9
Screen size compatibility762 - 7620 mm (30 - 300")
Projection distance0.9 - 15.97 m
Horizontal scan range15 - 100 kHz
Vertical scan range50 - 120 Hz
Colour light output3200 ANSI lumens
Keystone correction, horizontal± 30°
Keystone correction, vertical± 30°
Matrix size1.4 cm (0.55")
Matrix typeDMD

Light source

Light source typeLamp
Service life of light source3500 h
Service life of light source (economic mode)8000 h
Lamp power282 W
Lamp power (economic mode)202 W

Lens system

FocusManual
Focal length range17.09 - 29.05 mm
Aperture range (F-F)2.4 - 3.1
Zoom capabilityYes
Zoom typeManual
Zoom ratio1.7:1
Optical zoom1.7x

Video

Analog signal format systemNTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM
Full HDNo
HD-ReadyYes
Supported graphics resolutions1024 x 768 (XGA), 1280 x 1024 (SXGA), 1400 x 1050 (SXGA+), 1600 x 1200 (UXGA), 1920 x 1200 (WUXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
Supported video modes1080i, 1080p, 480i, 480p, 576i, 576p, 720p

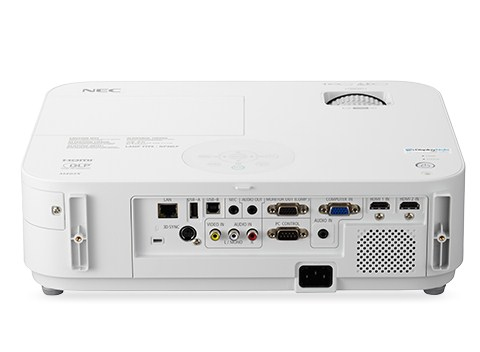

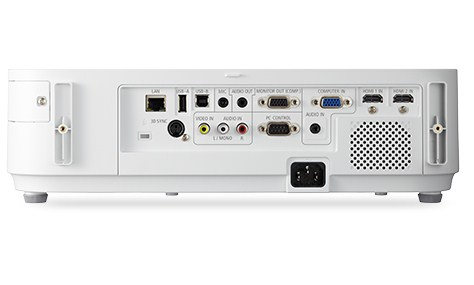

Ports & interfaces

VGA (D-Sub) ports quantity2
HDMI ports quantity2
HDMI connector typeFull-size
Component video (YPbPr/YCbCr) in0
Composite video in1
DVI portYes
S-Video inputs quantity0
USB 2.0 ports quantity2
Audio (L/R) in1
Microphone inYes
Serial interface typeRS-232
PC Audio inYes
PC Audio outYes
PC in (D-Sub)Yes
USB connector typeUSB Type-A, USB Type-B
AC (power) inYes

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Wi-FiNo

Storage

Card reader integratedNo

Features

Noise level38 dB
Noise level (economic mode)31 dB
HDCPYes
Composite syncYes
Separate H/V syncYes
Sync-on-green (SOG)Yes
CertificationUL60950-1, CSA60950-1, FCC Part 15 Class B, ICES-03 Class B

Multimedia

Built-in speaker(s)Yes
RMS rated power20 W

Design

Product typeStandard throw projector
Market positioningPortable
Product colourWhite
PlacementDesktop, Ceiling

Display

Built-in displayNo

Power

Power sourceAC
Power consumption (typical)282 W
Power consumption (standby)2.5 W
Power consumption (PowerSave)0.2 W
Power consumption (economy mode)202 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Software

Windows operating systems supportedYes
Mac operating systems supportedYes

Operational conditions

Operating temperature (T-T)5 - 40 °C
Storage temperature (T-T)-10 - 50 °C
Operating relative humidity (H-H)20 - 80%

Weight & dimensions

Weight3.49 kg
Width368 mm
Depth292 mm
Height108 mm

Packaging content

Remote control includedYes
Batteries includedYes
Cables includedAC, VGA
Carrying caseYes
ManualYes
Quick start guideYes
Warranty cardYes

Other features

Maximum digital resolution1920 x 1200 pixels
RS-232 ports1
