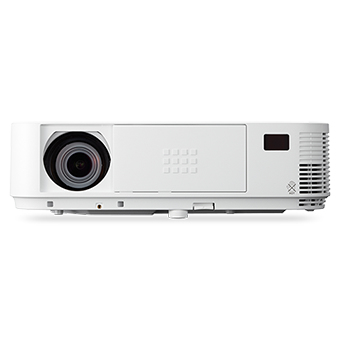

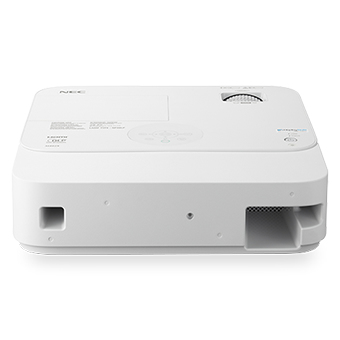

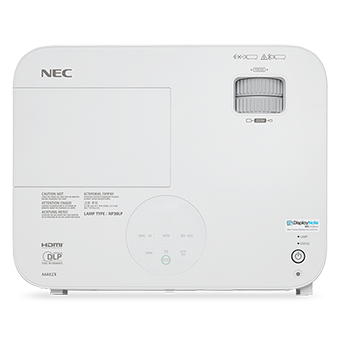

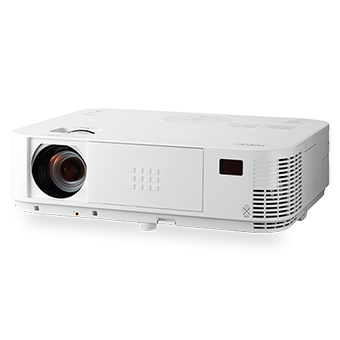

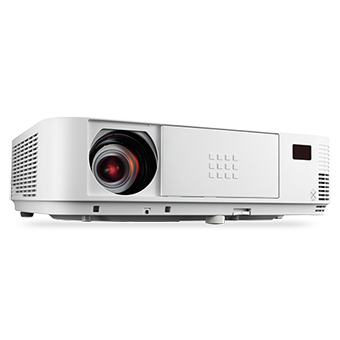

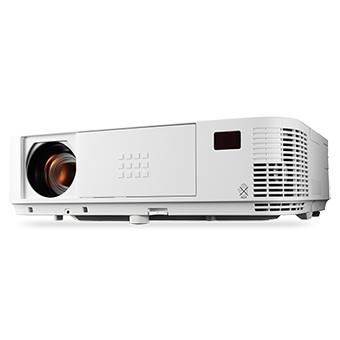

NEC M402X Standard throw projector 4000 ANSI lumens DLP XGA (1024x768) White
Model M402XPart no. 60003458EAN 044111509618
83 specifications
- Noise38 dB
- TypeStandard throw projector
- Weight3.6 kg
- ColourWhite
- Projector brightness4000 ANSI lumens
- Light source typeLamp
Overview
- Noise
- 38 dB
- Type
- Standard throw projector
- Weight
- 3.6 kg
- Colour
- White
- Projector brightness
- 4000 ANSI lumens
- Light source type
- Lamp
- Brand
- NEC
- Category
- Data Projector
- Model
- M402X
- Part number
- 60003458
- EAN / UPC
- 044111509618, 4053162606760, 5054629088661
- Also known as
- NEC M402X Standard throw projector 4000 ANSI lumens DLP XGA (1024x768) White
Specifications
83 specifications in 15 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 4000 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | XGA (1024x768) |
| Contrast ratio (typical) | 10000:1 |
| Screen size compatibility | 762 - 7620 mm (30 - 300") |
| Projection distance | 0.9 - 15.9 m |
| Horizontal synchronization (max) | 100 kHz |
| Horizontal synchronization (min) | 15 kHz |
| Keystone correction, horizontal | 30° |
| Keystone correction, vertical | -30° |
| Matrix size | 1.4 cm (0.55") |
| Matrix type | DMD |
| Vertical synchronization (max) | 120 kHz |
| Vertical synchronization (min) | 50 kHz |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 3500 h |
| Service life of light source (economic mode) | 8000 h |
| Lamp power | 335 W |
| Lamp power (economic mode) | 246 W |
| Lamps quantity | 1 lamp(s) |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Focal length range | 17 - 29 mm |
| Aperture range (F-F) | 2.4 - 3.1 |
| Zoom ratio | 1.7:1 |
Video
| Specification | Value |
|---|---|
| Analog signal format system | NTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM |
| Full HD | Yes |
| HD-Ready | Yes |
| 3D | No |
| Supported graphics resolutions | 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1400 x 1050 (SXGA+), 1600 x 1200 (UXGA), 1920 x 1200 (WUXGA), 640 x 480 (VGA), 800 x 600 (SVGA) |
| Supported video modes | 1080i, 1080p, 480i, 480p, 576p, 720i, 720p |

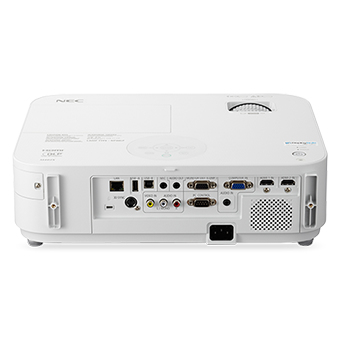

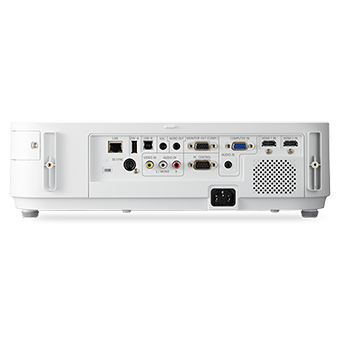

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 2 |
| HDMI ports quantity | 2 |
| Component video (YPbPr/YCbCr) in | 1 |
| Composite video in | 0 |
| DVI port | No |
| S-Video inputs quantity | 0 |
| USB 2.0 ports quantity | 1 |
| Audio (L/R) in | 1 |
| Audio (L/R) out | 1 |
| Microphone in | Yes |
| Serial interface type | RS-232 |
| PC in (D-Sub) | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | No |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Noise level | 38 dB |
| Noise level (economic mode) | 33 dB |
| HDCP | Yes |
| Composite sync | Yes |
| Separate H/V sync | Yes |
| Sync-on-green (SOG) | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 20 W |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Market positioning | Portable |
| Product colour | White |
| Placement | Desktop, Ceiling |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 335 W |
| Power consumption (standby) | 2.5 W |
| Power consumption (PowerSave) | 0.5 W |
| Power consumption (economy mode) | 246 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 3.6 kg |
| Width | 368 mm |
| Depth | 292 mm |
| Height | 108 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Remote control type | IR |
| Batteries included | Yes |
| Cables included | VGA |
| Carrying case | Yes |
| Manual | Yes |
| Quick start guide | Yes |
Other features
| Specification | Value |
|---|---|
| Maximum analog resolution | 1024 x 768 pixels |
| Maximum digital resolution | 1920 x 1200 pixels |
| RS-232 ports | 1 |
