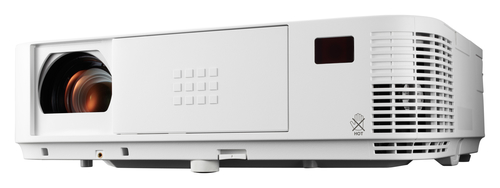

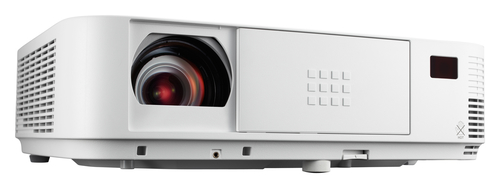

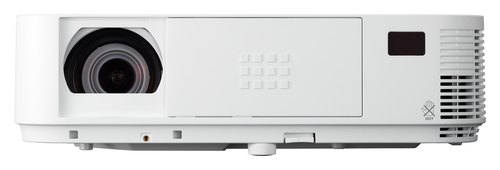

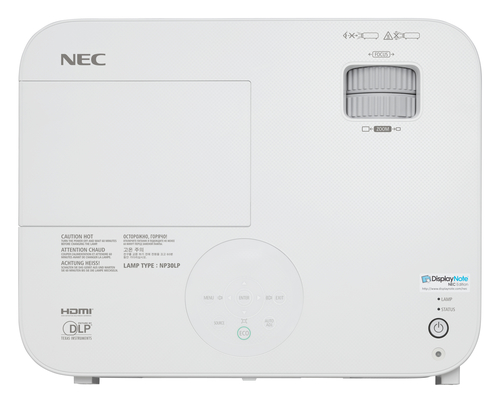

NEC M323X Standard throw projector 3200 ANSI lumens DLP XGA (1024x768) 3D White

NEC M323X Standard throw projector 3200 ANSI lumens DLP XGA (1024x768) 3D White

Model M323XPart no. 60003973EAN 4053162996649

82 specifications
  • Noise27 dB
  • TypeStandard throw projector
  • Weight3.48 kg
  • ColourWhite
  • Projector brightness3200 ANSI lumens
  • Light source typeLamp
See all specifications

Overview

Noise
27 dB
Type
Standard throw projector
Weight
3.48 kg
Colour
White
Projector brightness
3200 ANSI lumens
Light source type
Lamp
Brand
NEC
Model
M323X
Part number
60003973
EAN / UPC
4053162996649, 5028695611993
Also known as
NEC M323X Standard throw projector 3200 ANSI lumens DLP XGA (1024x768) 3D White

Specifications

82 specifications in 16 groups

Projector

Projector brightness3200 ANSI lumens
Projection technologyDLP
Projector native resolutionXGA (1024x768)
Contrast ratio (typical)10000:1
Native aspect ratio4:3
Supported aspect ratios4:3, 16:9
Screen size compatibility762 - 7620 mm (30 - 300")
Projection distance0.9 - 16 m
Horizontal scan range15 - 100 kHz
Vertical scan range50 - 120 Hz
Keystone correction, horizontal-25 - 25°
Keystone correction, vertical-30 - 30°

Light source

Light source typeLamp
Service life of light source5500 h
Service life of light source (economic mode)8000 h
Lamp power225 W
Lamp power (economic mode)135 W
Lamps quantity1 lamp(s)

Lens system

FocusManual
Focal length range17.09 - 29.05 mm
Aperture range (F-F)2.4 - 3.1
Zoom capabilityYes
Zoom typeManual
Throw ratio1.5 - 2.5:1

Video

Analog signal format systemNTSC, NTSC 4.43, PAL, PAL 60, PAL M, SECAM
Full HDYes
HD-ReadyYes
3DYes
Supported graphics resolutions640 x 480 (VGA), 720 x 480, 720 x 576, 800 x 600 (SVGA), 832 x 624, 1024 x 768 (XGA), 1152 x 864 (XGA+), 1152 x 870, 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1280 x 960, 1360 x 768 (WXGA), 1376 x 768, 1440 x 1050, 1440 x 900, 1600 x 1200 (UXGA), 1600 x 900, 1680
Supported video modes480i, 480p, 576i, 576p, 720i, 720p, 1080i, 1080p

Ports & interfaces

VGA (D-Sub) ports quantity2
HDMI ports quantity2
HDMI connector typeFull-size
Composite video in0
DVI portNo
USB 2.0 ports quantity2
Audio (L/R) in1
Headphone outputs1
Microphone inYes
Serial interface typeRS-232
USB connector typeUSB Type-A, USB Type-B

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1

Features

Noise level27 dB
Noise level (economic mode)27 dB
On Screen Display (OSD)Yes
Password protectionYes
CertificationCE; EAC; Gost-R; TUEV GS

Multimedia

Built-in speaker(s)Yes
Number of built-in speakers1
RMS rated power20 W

Design

Product typeStandard throw projector
Market positioningPortable
Product colourWhite
PlacementDesktop
Cable lock slotYes
Cable lock slot typeKensington

Display

Built-in displayNo

Power

Power sourceAC
Power consumption (typical)224 W
Power consumption (standby)0.4 W
Power consumption (max)286 W
Power consumption (network standby)2.9 W
Power consumption (economy mode)202 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Operational conditions

Operating temperature (T-T)5 - 40 °C
Storage temperature (T-T)-10 - 50 °C
Operating relative humidity (H-H)20 - 80%
Storage relative humidity (H-H)20 - 80%

Weight & dimensions

Weight3.48 kg
Width367.9 mm
Depth285.9 mm
Height97.5 mm

Packaging content

Remote control includedYes
Remote control typeIR
Cables includedAC, VGA
ManualYes
Quick start guideYes

Technical details

Compliance certificatesRoHS

Other features

Maximum digital resolution1920 x 1080 pixels
RS-232 ports1
