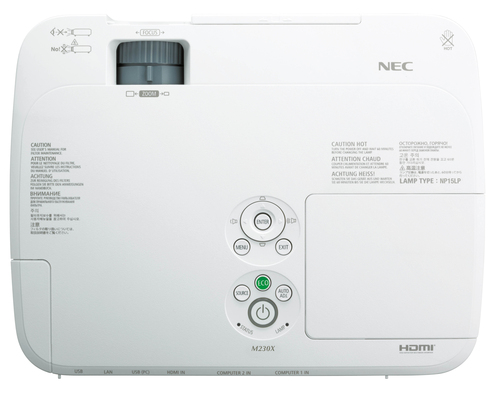

NEC M230X Standard throw projector 2300 ANSI lumens LCD XGA (1024x768) White

NEC M230X Standard throw projector 2300 ANSI lumens LCD XGA (1024x768) White

Model M230XPart no. 60002958EAN 5028695608290

87 specifications
  • ConnectivityWired
  • Noise34 dB
  • TypeStandard throw projector
  • Weight2.9 kg
  • ColourWhite
  • Projector brightness2300 ANSI lumens
See all specifications

Overview

Connectivity
Wired
Noise
34 dB
Type
Standard throw projector
Weight
2.9 kg
Colour
White
Projector brightness
2300 ANSI lumens
Brand
NEC
Model
M230X
Part numbers
60002958, M230XI
EAN / UPC
5028695608290, 5054484175810
Also known as
NEC M230X Standard throw projector 2300 ANSI lumens LCD XGA (1024x768) White

Specifications

87 specifications in 17 groups

Projector

Projector brightness2300 ANSI lumens
Projection technologyLCD
Projector native resolutionXGA (1024x768)
Contrast ratio (typical)2000:1
Native aspect ratio4:3
Supported aspect ratios4:3, 5:4, 16:9, 16:10
Screen size compatibility635 - 7620 mm (25 - 300")
Projection distance0.6 - 13.8 m
Projector brightness (economic mode)1840 ANSI lumens
Horizontal scan range15 - 100 kHz
Vertical scan range50 - 120 Hz
Horizontal synchronization (max)100 kHz
Horizontal synchronization (min)15 kHz
Keystone correction, vertical-30 - 30°
Matrix size1.6 cm (0.63")
Matrix type3-panel (p-Si TFT active)
Vertical synchronization (max)120 kHz
Vertical synchronization (min)50 kHz

Light source

Light source typeLamp
Service life of light source5000 h
Service life of light source (economic mode)6000 h
Lamp power180 W
Lamp power (economic mode)145 W

Lens system

FocusManual
Focal length range17.5 - 29 mm
Aperture range (F-F)1.7 - 2.2
Zoom ratio1.7:1
Throw ratio1.3 - 2.2

Video

Analog signal format systemNTSC, NTSC 4.43, PAL, SECAM
Full HDYes
HD-ReadyYes
3DNo
Supported graphics resolutions720 x 480, 720 x 576, 832 x 624, 1152 x 870, 1366 x 768, 1600 x 900, 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1360 x 768 (WXGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1080 (
Supported video modes1080i, 480i, 480p, 576i, 576p, 720p

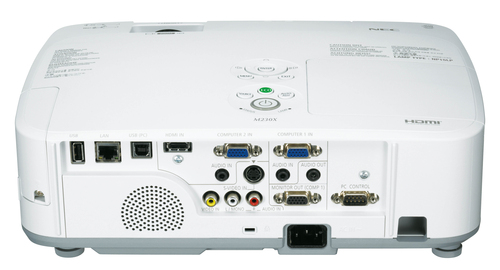

Ports & interfaces

VGA (D-Sub) ports quantity3
HDMI ports quantity1
Component video (YPbPr/YCbCr) in0
Composite video in1
DVI portNo
DisplayPorts quantity0
S-Video inputs quantity1
USB 2.0 ports quantity3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
Audio (L/R) in1
Audio (L/R) out1
Headphone outputs1
Serial interface typeRS-232
AC (power) inYes

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Wi-FiNo

Storage

Card reader integratedNo

Features

Noise level34 dB
Noise level (economic mode)27 dB
CertificationCE, ErP, TÜV GS, TCO, Gost-R.

Multimedia

Built-in speaker(s)Yes
Number of built-in speakers1
RMS rated power10 W

Design

Product typeStandard throw projector
Market positioningPortable
Product colourWhite

Display

Built-in displayNo

Power

Power sourceAC
Power consumption (typical)239 W
Power consumption (standby)0.4 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Operational conditions

Operating temperature (T-T)5 - 40 °C
Storage temperature (T-T)-10 - 50 °C
Operating relative humidity (H-H)20 - 80%
Storage relative humidity (H-H)20 - 80%

Weight & dimensions

Weight2.9 kg
Width339 mm
Depth257 mm
Height99 mm
Package width430 mm
Package depth370 mm
Package height200 mm
Package weight6.5 kg

Packaging content

Remote control includedYes
Cables includedAC, VGA
Carrying caseYes
Quick start guideYes

Technical details

Compliance certificatesRoHS

Other features

Connectivity technologyWired
Dimensions (WxDxH)339 x 257 x 99 mm
RS-232 ports1
