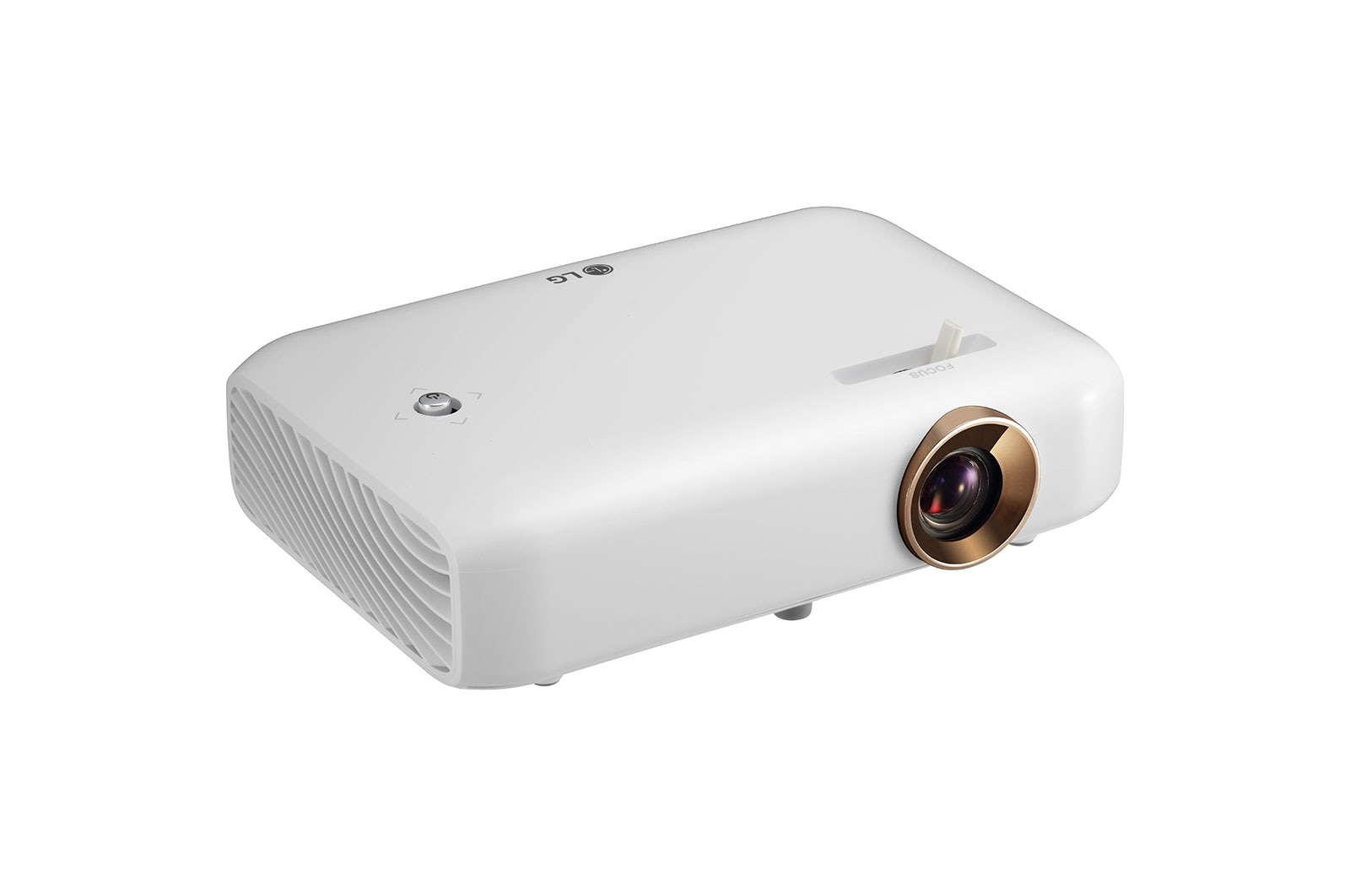

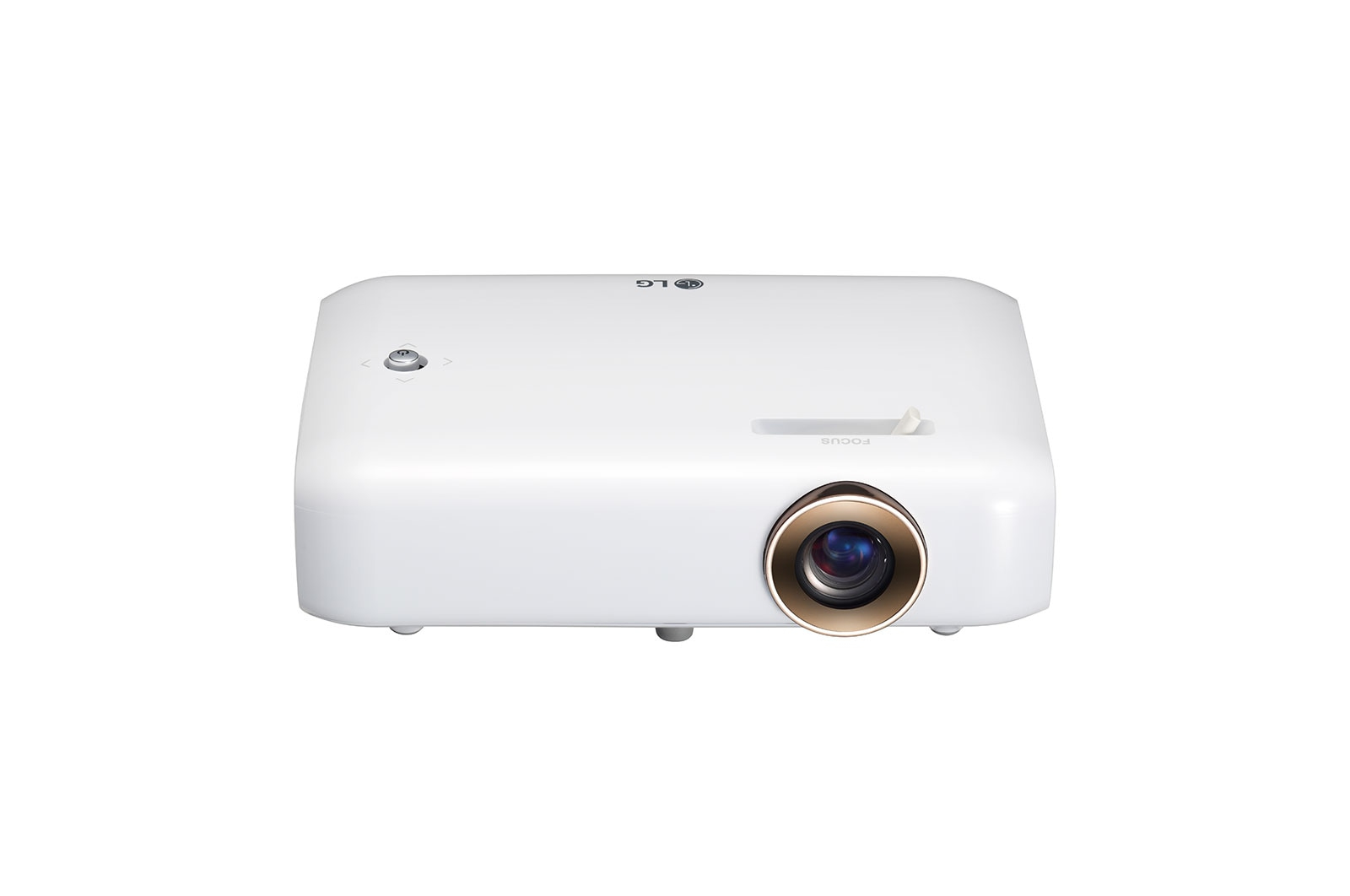

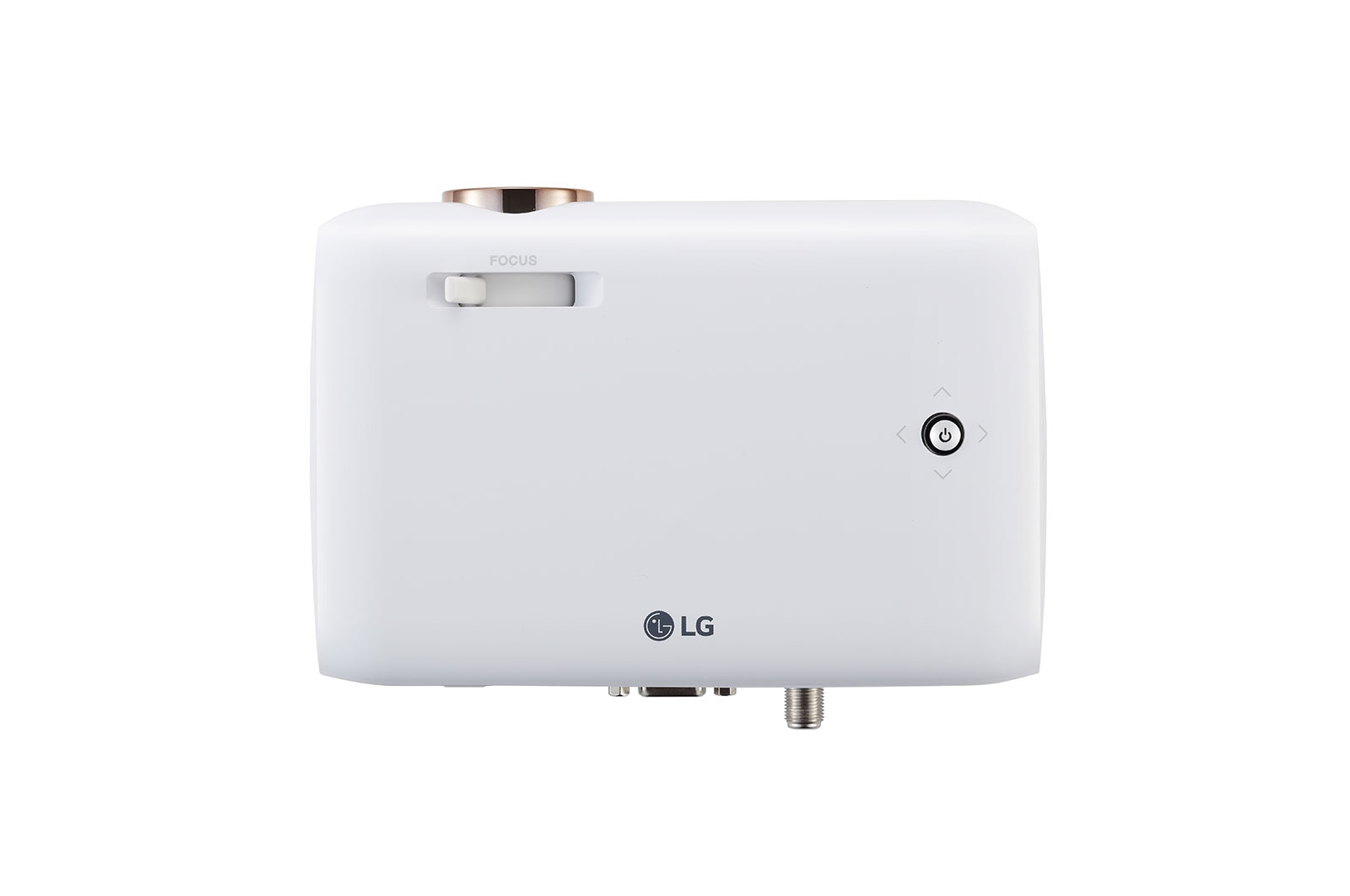

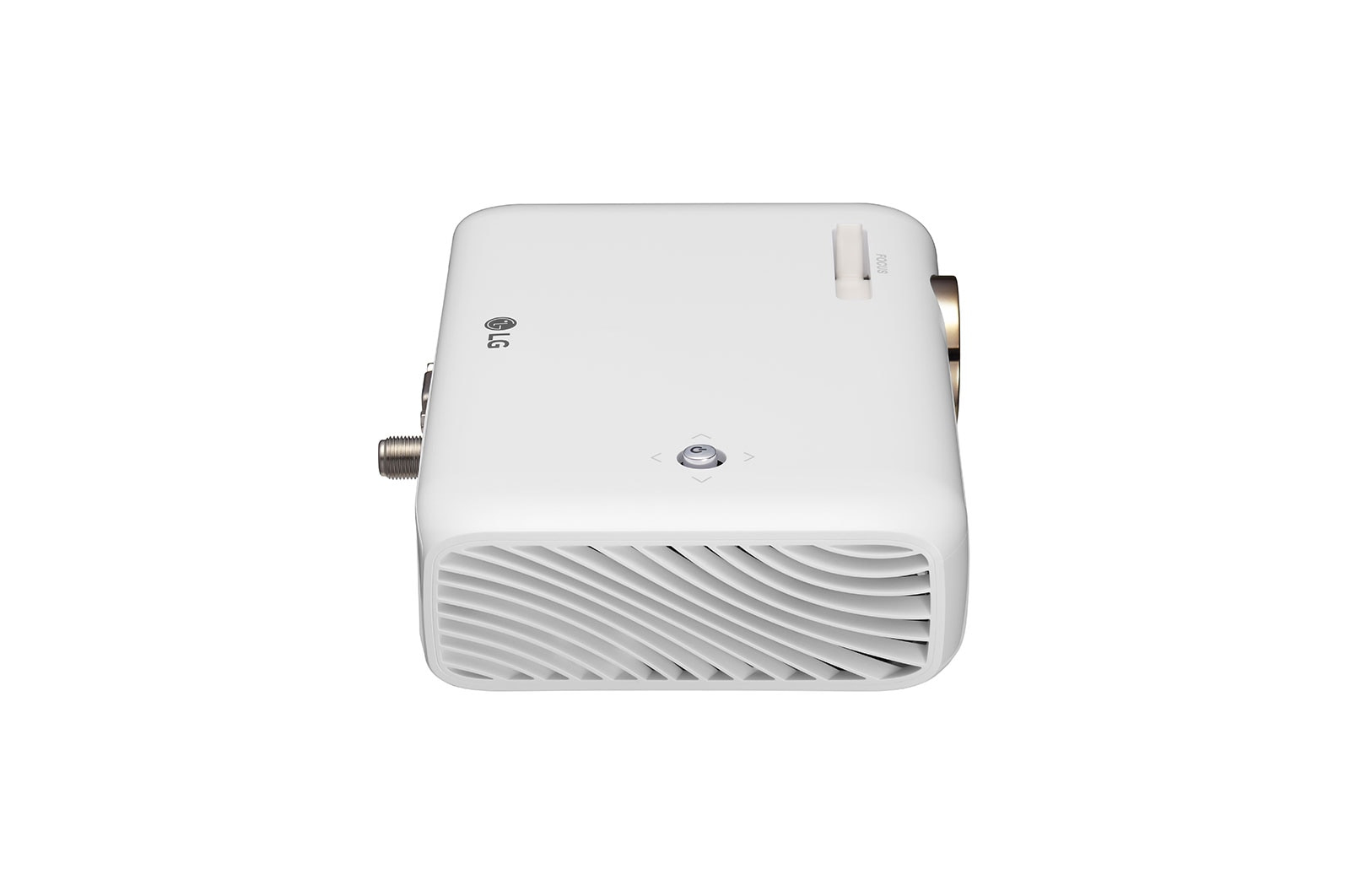

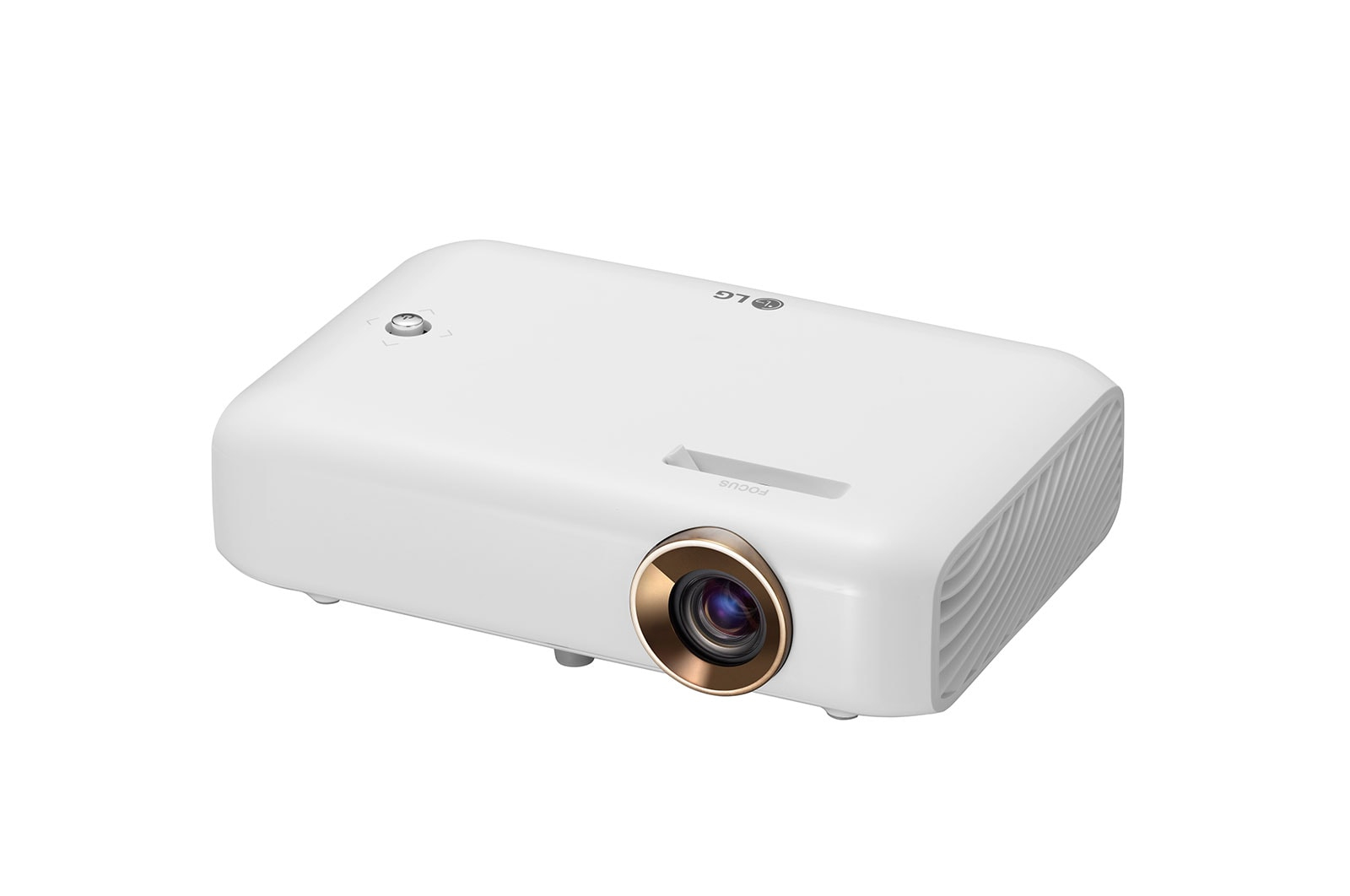

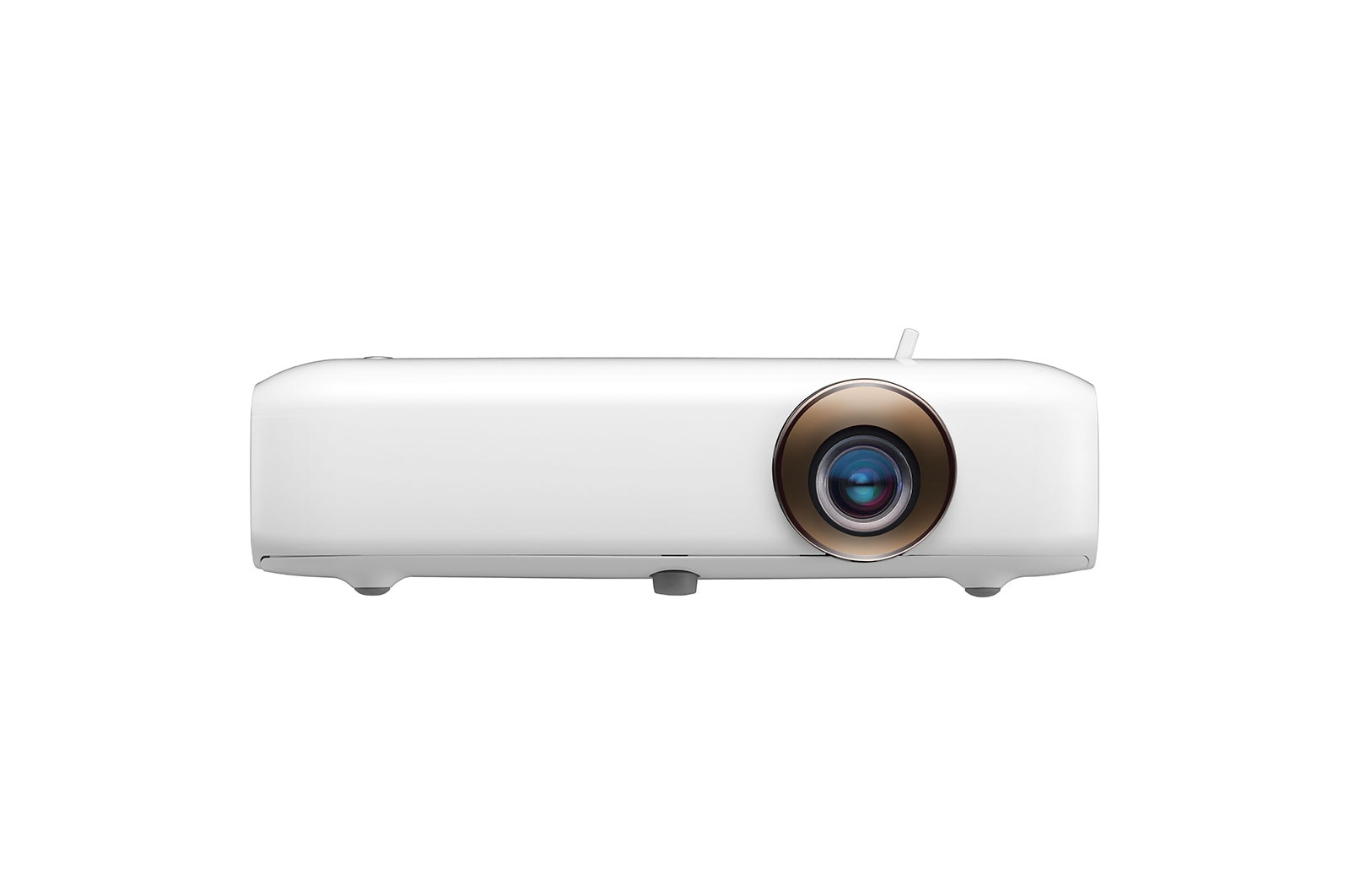

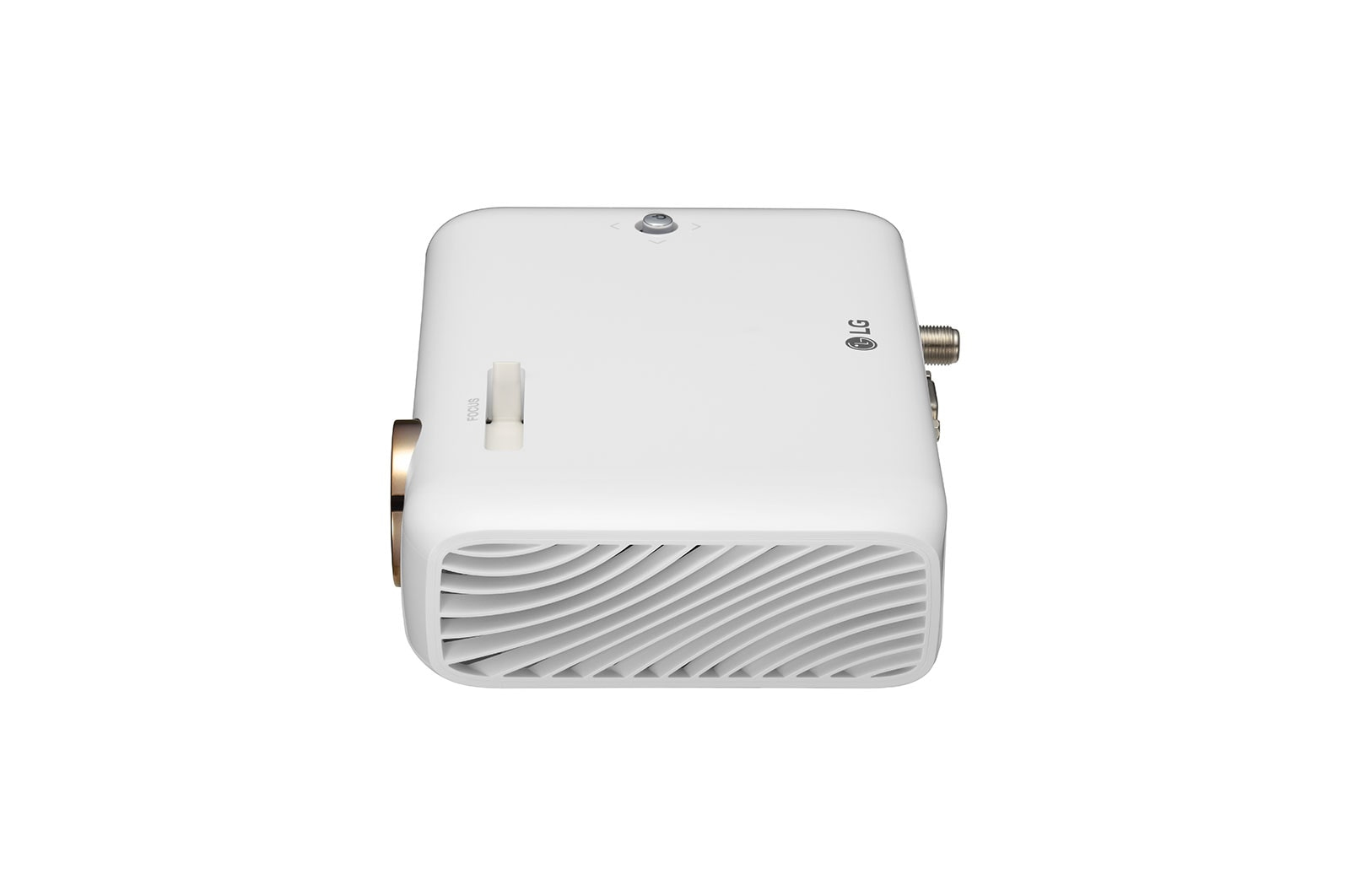

PH510P data projector Standard throw projector 550 ANSI lumens DLP 720p (1280x720) White
Model PH510PEAN 195174003343
57 specifications
- Battery6000 mAh
- Noise30 dB
- TypeStandard throw projector
- Weight650 g
- ColourWhite
- Projector brightness550 ANSI lumens
Overview
- Battery
- 6000 mAh
- Noise
- 30 dB
- Type
- Standard throw projector
- Weight
- 650 g
- Colour
- White
- Projector brightness
- 550 ANSI lumens
- Brand
- LG
- Category
- Data Projector
- Model
- PH510P
- Part numbers
- PH510P, PH510P.AWH
- EAN / UPC
- 195174003343, 8806091105332
- Also known as
- LG PH510P data projector Standard throw projector 550 ANSI lumens DLP 720p (1280x720) White
Specifications
57 specifications in 17 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 550 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | 720p (1280x720) |
| Contrast ratio (typical) | 100000:1 |
| Supported aspect ratios | 4:3, 16:9 |
| Screen size compatibility | 635 - 2540 mm (25 - 100") |
| Number of colours | 16.78 million colours |
Light source
| Specification | Value |
|---|---|
| Light source type | LED |
| Service life of light source | 30000 h |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Throw ratio | 1.40 |
Video
| Specification | Value |
|---|---|
| Analog signal format system | NTSC, NTSC 4.43, PAL, PAL M, PAL N, SECAM |
| Supported video modes | 480i, 480p, 720p, 1080i, 1080p |

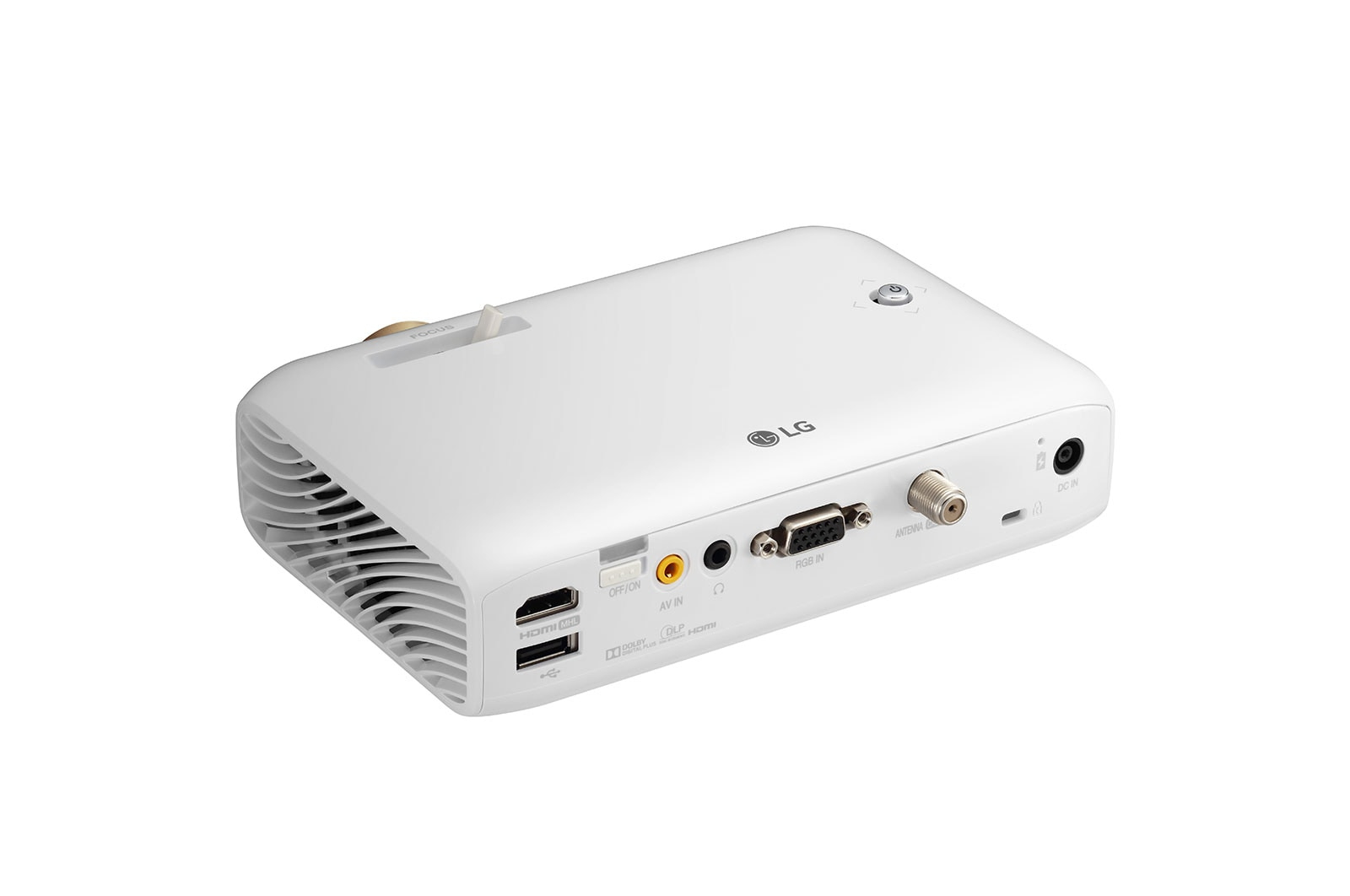

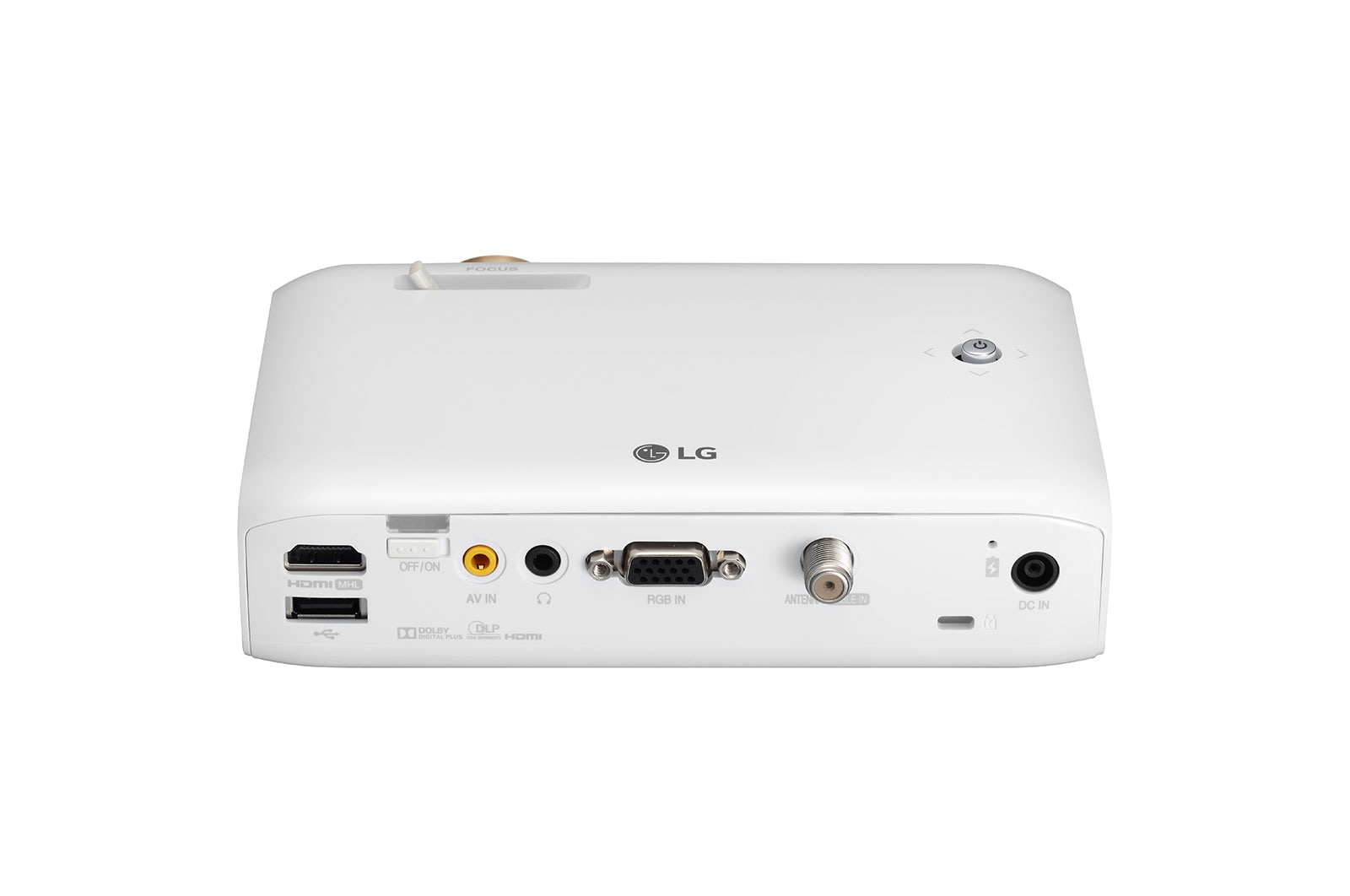

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| Component video (YPbPr/YCbCr) in | 1 |
| Composite video in | 1 |
| DVI port | No |
| S-Video inputs quantity | 0 |
| USB 2.0 ports quantity | 1 |
| Audio (L/R) in | 1 |
| Headphone outputs | 1 |
| Mobile High-Definition Link (MHL) | Yes |
| DC-in jack | Yes |
Network
| Specification | Value |
|---|---|
| Smart TV | No |
| Ethernet LAN | No |
| Wi-Fi | No |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Noise level | 30 dB |
| Noise level (economic mode) | 23 dB |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Simplified Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Portuguese, Russian, Swedish |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 2 W |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Market positioning | Portable |
| Product colour | White |
| Placement | Desktop, Ceiling |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | DC/Battery |
| Power consumption (typical) | 55 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Battery life (max) | 2.5 h |
Battery
| Specification | Value |
|---|---|
| Battery capacity | 6000 mAh |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 650 g |
| Width | 174 mm |
| Depth | 116 mm |
| Height | 44 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
Logistics data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85286200 |
