LX-UH1B 4K HDR DLP projector - Conference / Game / Video Data
Model LX-UH1BEAN 4975769452178
70 specifications
- Noise33 dB
- Weight4.8 kg
- ColourBlack
- Projector brightness2000 ANSI lumens
- Light source typeLamp
- FocusManual
Overview
- Noise
- 33 dB
- Weight
- 4.8 kg
- Colour
- Black
- Projector brightness
- 2000 ANSI lumens
- Light source type
- Lamp
- Focus
- Manual
- Brand
- JVC
- Category
- Data Projector
- Model
- LX-UH1B
- Part numbers
- LX-UH1B, LXUH1B
- EAN / UPC
- 4975769452178
- Also known as
- JVC LX-UH1B 4K HDR DLP projector - Conference / Game / Video Data
Specifications
70 specifications in 17 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 2000 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | 1080p (1920x1080) |
| Screen size compatibility | 1524 - 5080 mm (60 - 200") |
| Projection distance (wide) | 2.85 - 6 m |
| Projection distance (tele) | 4.56 - 9.6 m |
| Contrast ratio (dynamic) | 100000:1 |
| Digital gamma correction | Yes |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 4000 h |
| Service life of light source (economic mode) | 10000 h |
| Lamp type | NSH |
| Lamp power | 240 W |
| Lamps quantity | 1 lamp(s) |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Focal length range | 14.3 - 22.9 mm |
| Aperture range (F-F) | 1.8 - 1.8 |
| Zoom capability | Yes |
| Zoom type | Manual |
| Horizontal lens shift range | -23 - 23% |
| Vertical lens shift range | -60 - 60% |
Video
| Specification | Value |
|---|---|
| Full HD | Yes |
| 3D | No |
| Video colour modes | Cinema, Dynamic, Natural |
| Adjustable colour temperature | Yes |

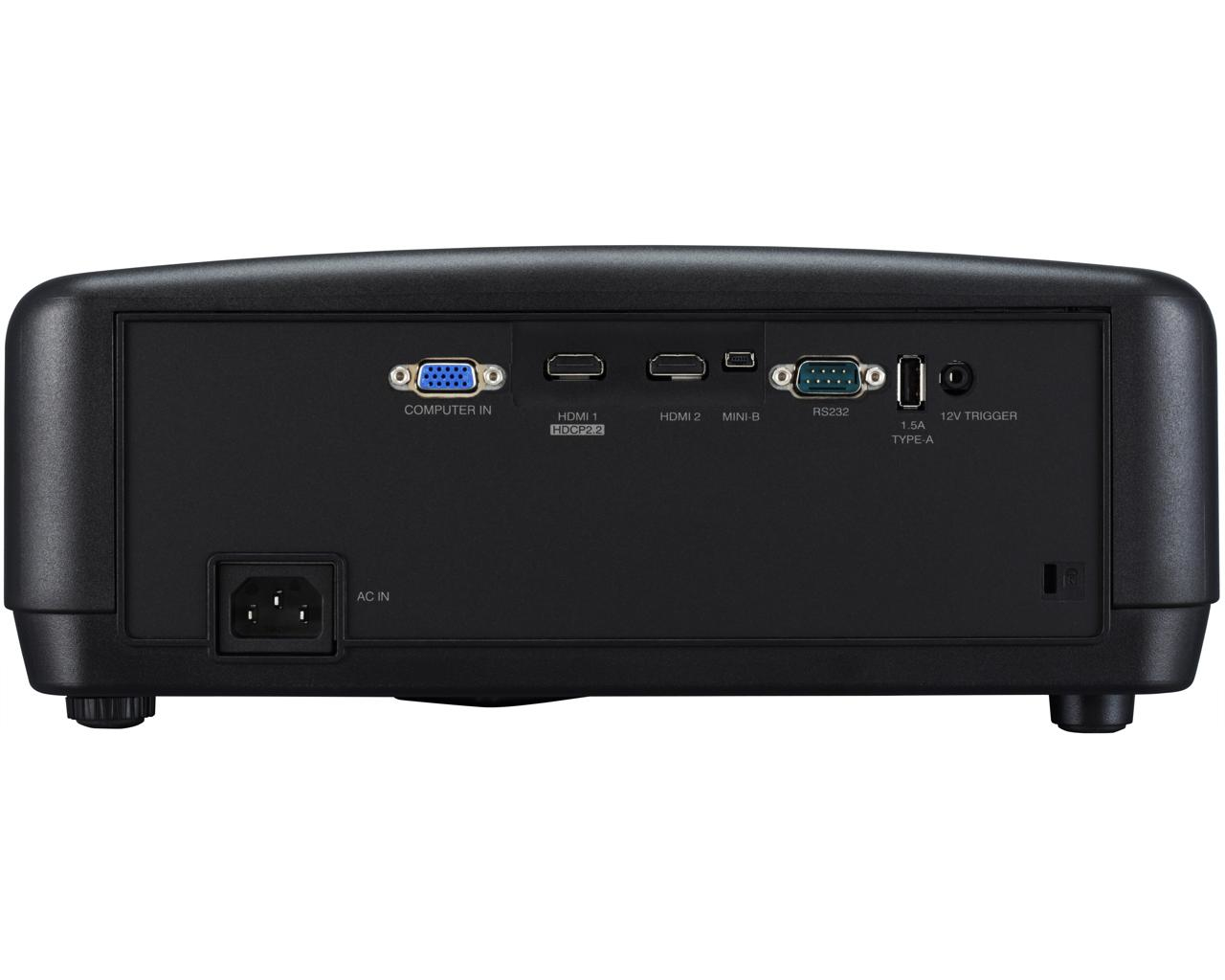

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 2 |
| HDMI connector type | Full-size |
| Component video (YPbPr/YCbCr) in | 0 |
| Composite video in | 0 |
| DVI port | No |
| S-Video inputs quantity | 0 |
| USB 2.0 ports quantity | 1 |
| Mini-USB 2.0 ports quantity | 1 |
| Audio (L/R) in | 0 |
| Serial interface type | RS-232C |
| Mobile High-Definition Link (MHL) | No |
| AC (power) in | Yes |
Network
| Specification | Value |
|---|---|
| Smart TV | No |
| Ethernet LAN | No |
| Wi-Fi | No |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Noise level | 33 dB |
| Noise level (economic mode) | 29 dB |
| HDCP | Yes |
| Sleep timer | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
Design
| Specification | Value |
|---|---|
| Product type | Ceiling / Floor mounted projector |
| Market positioning | Home cinema |
| Product colour | Black |
| Placement | Ceiling, Floor |
| Cable lock slot | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 370 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating altitude | 1500 - 3000 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 4.8 kg |
| Width | 333 mm |
| Depth | 332 mm |
| Height | 135 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Remote control type | IR |
| Cables included | AC |
| Manual | Yes |
Technical details
| Specification | Value |
|---|---|
| Color wheel segment | RGBRGB |
Other features
| Specification | Value |
|---|---|
| Maximum digital resolution | 3940 x 2160 pixels |
