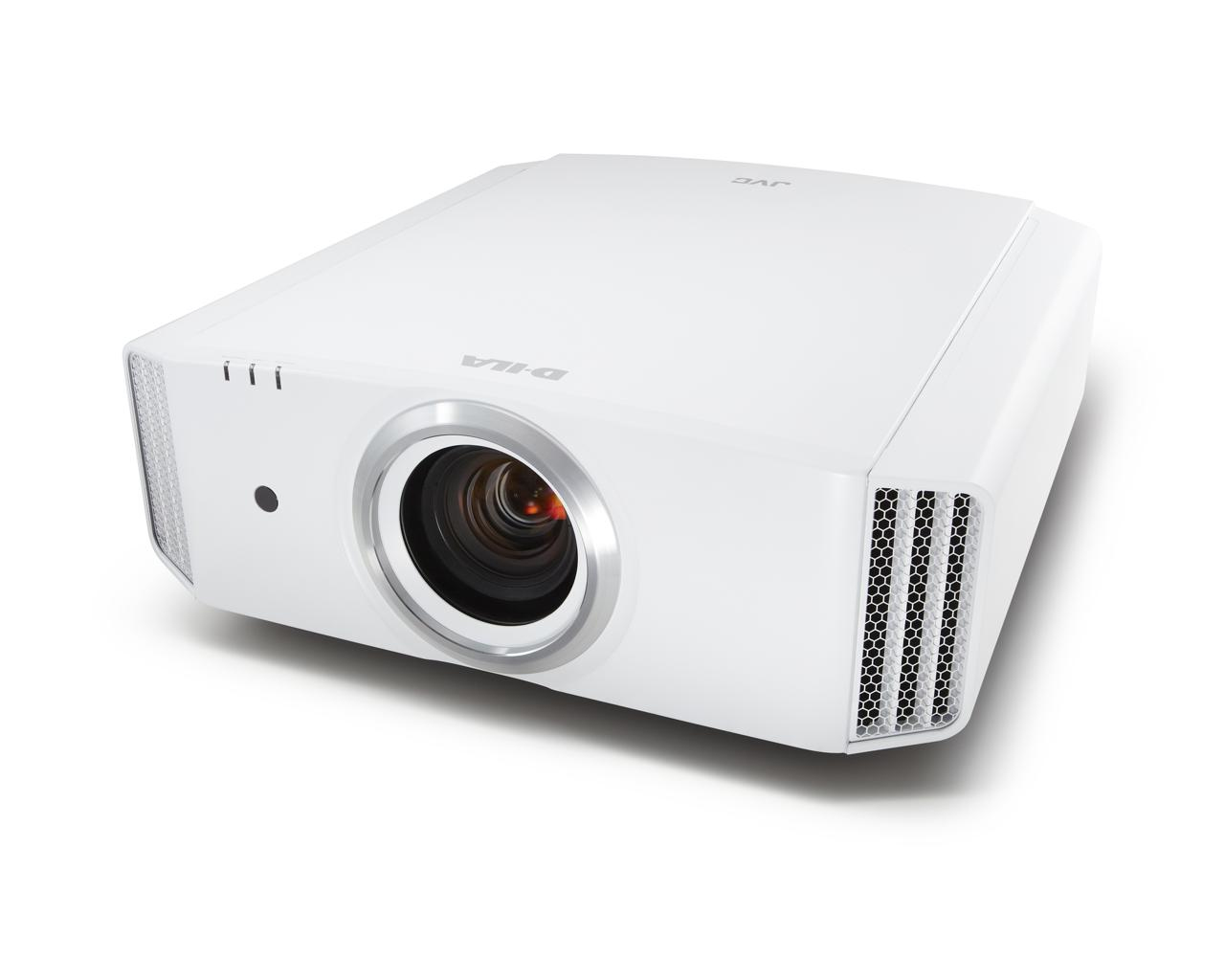

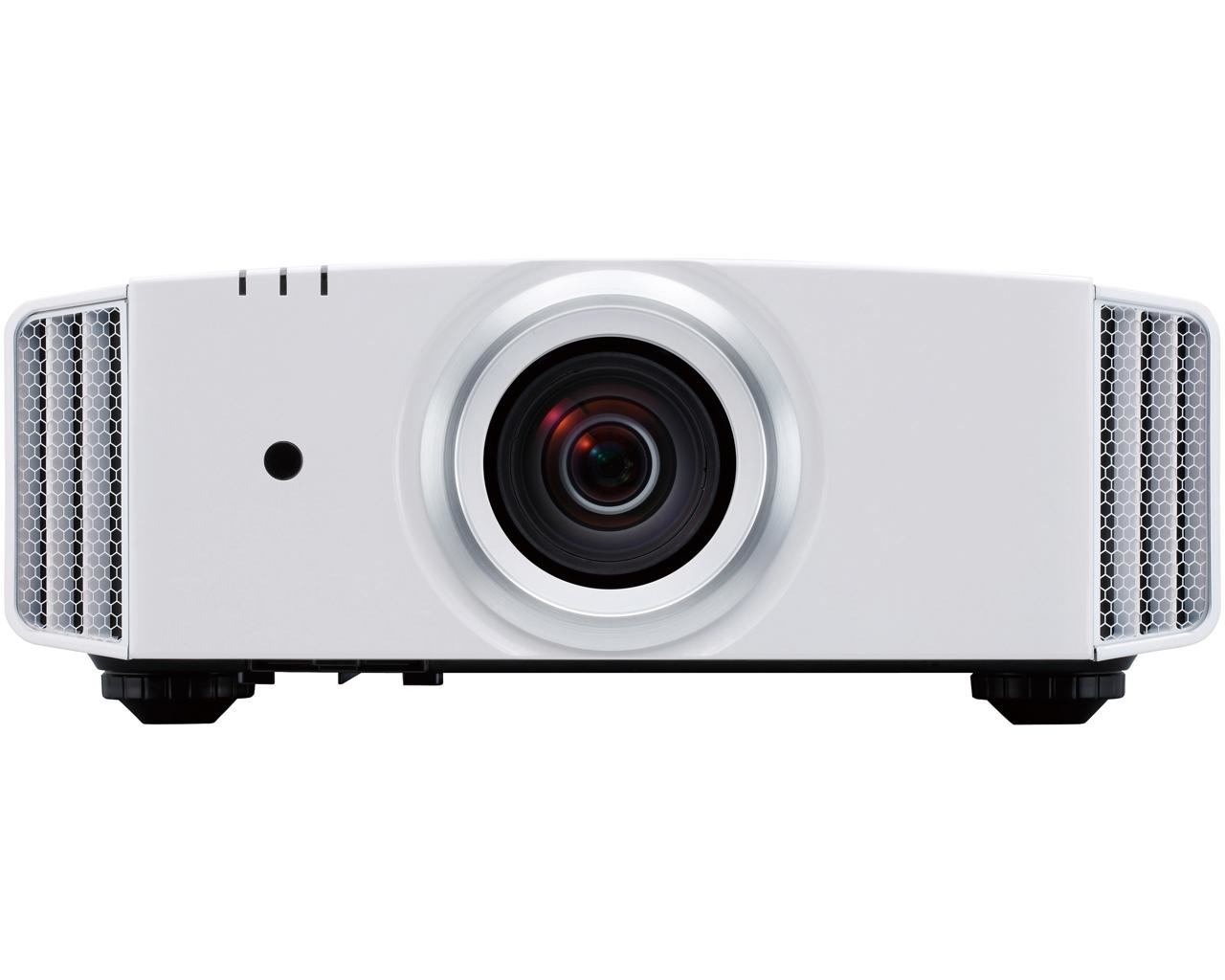

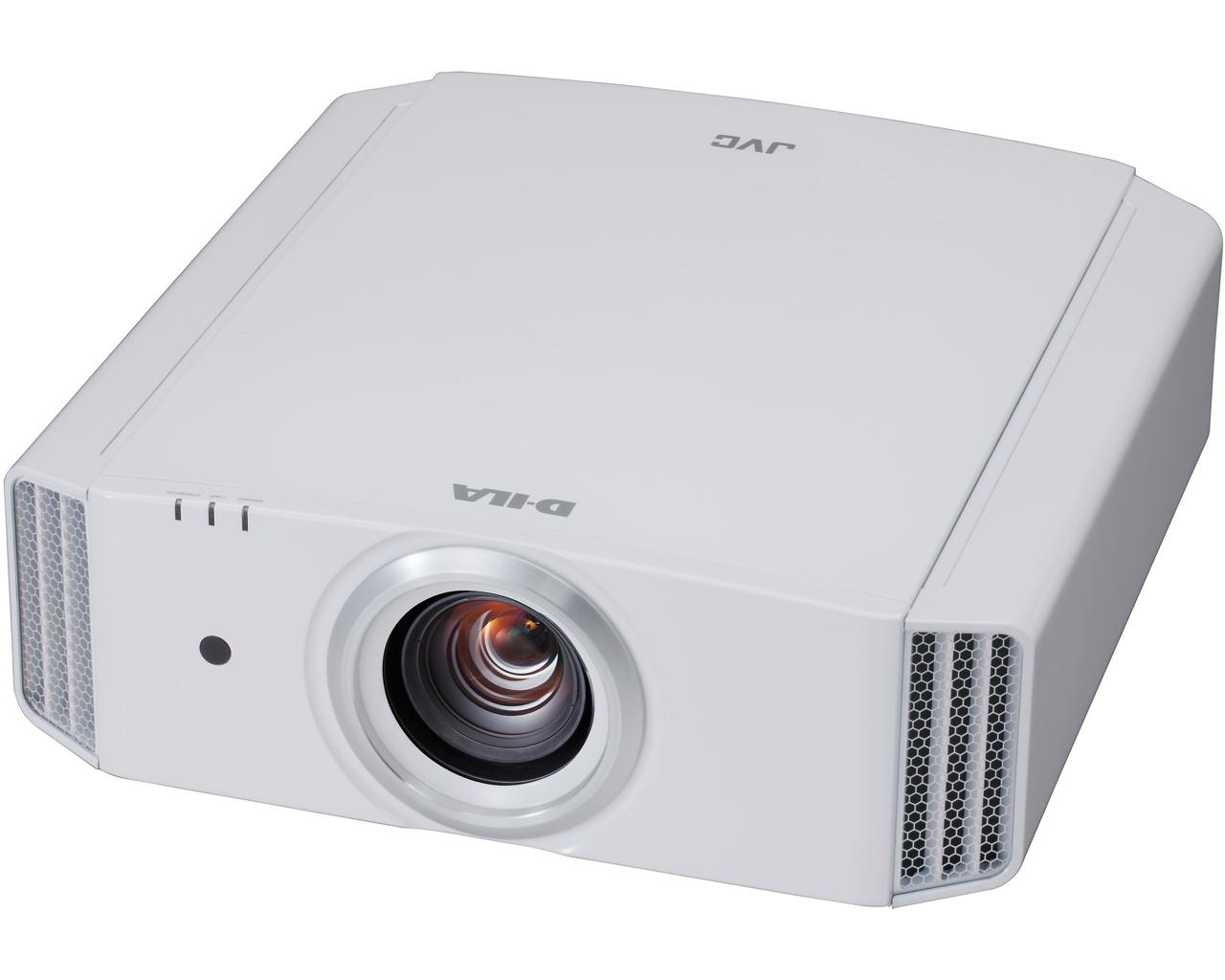

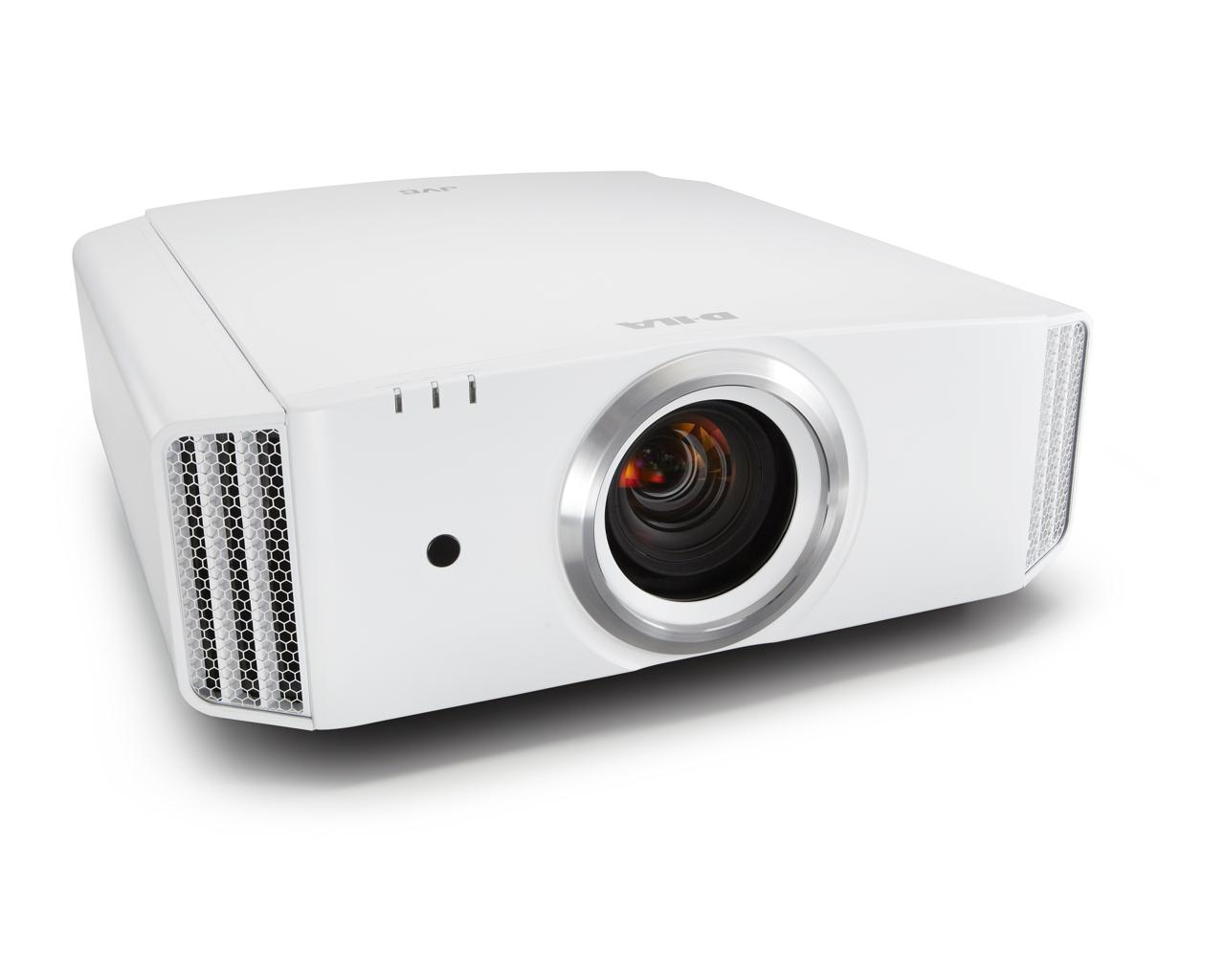

DLA-X7900WE D-ILA Projector
Model DLA-X7900WEPart no. DLAX7900WEEAN 4975769452314
60 specifications
- Noise21 dB
- TypeLarge venue projector
- Weight15.6 kg
- ColourWhite
- Projector brightness1900 ANSI lumens
- Light source typeLamp
Overview
- Noise
- 21 dB
- Type
- Large venue projector
- Weight
- 15.6 kg
- Colour
- White
- Projector brightness
- 1900 ANSI lumens
- Light source type
- Lamp
- Brand
- JVC
- Category
- Data Projector
- Model
- DLA-X7900WE
- Part number
- DLAX7900WE
- EAN / UPC
- 4975769452314
- Also known as
- JVC DLA-X7900WE D-ILA Projector
Specifications
60 specifications in 14 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 1900 ANSI lumens |
| Projection technology | D-ILA |
| Projector native resolution | UHD 4K (3840x2160) |
| Contrast ratio (typical) | 130000:1 |
| Screen size compatibility | 1524 - 5080 mm (60 - 200") |
| Contrast ratio (dynamic) | 1300000:1 |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source (economic mode) | 4500 h |
| Lamp type | NSH |
| Lamp power | 265 W |
Lens system
| Specification | Value |
|---|---|
| Focus | Auto |
| Focal length range | 21.4 - 42.8 mm |
| Aperture range (F-F) | 3.2 - 4 |
| Zoom capability | Yes |
| Zoom type | Auto |
| Horizontal lens shift range | -34 - 34% |
| Vertical lens shift range | -80 - 80% |
Video
| Specification | Value |
|---|---|
| Full HD | Yes |
| 3D | Yes |
| Supported 3D formats | Frame packing, Side by side, Top and bottom |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 3840 x 2160, 4096 x 2160 |
| Supported video modes | 480p, 576p, 720p, 1080i, 1080p, 2160p |
Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 2 |
| HDMI connector type | Full-size |
| Component video (YPbPr/YCbCr) in | 0 |
| Composite video in | 0 |
| DVI port | No |
| S-Video inputs quantity | 0 |
| USB 2.0 ports quantity | 0 |
| Audio (L/R) in | 0 |
| Serial interface type | RS-232C |
| Mobile High-Definition Link (MHL) | No |
| AC (power) in | Yes |
Network
| Specification | Value |
|---|---|
| Smart TV | No |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | No |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Noise level (economic mode) | 21 dB |
| HDCP | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
Design
| Specification | Value |
|---|---|
| Product type | Large venue projector |
| Product colour | White |
| Placement | Ceiling, Floor |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 380 W |
| Power consumption (standby) | 1.5 W |
| Power consumption (economy mode) | 0.4 W |
| AC input voltage | 110 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Operating altitude | 0 - 1524 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 15.6 kg |
| Width | 455 mm |
| Depth | 472 mm |
| Height | 179 mm |
