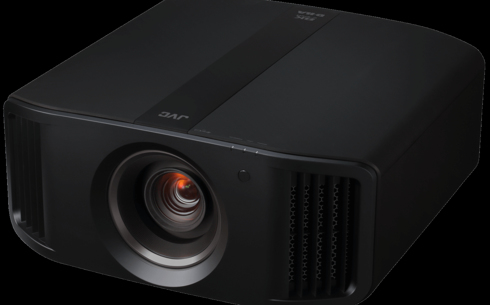

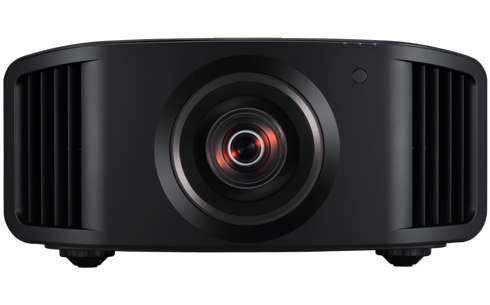

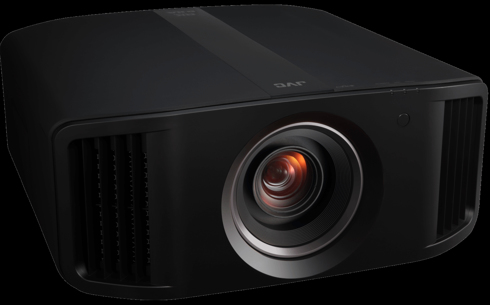

DLA-NZ7BE data projector Large venue projector 2200 ANSI lumens D-ILA DCI 4K (4096x2160) 3D Black
Model DLA-NZ7BEEAN 4975769021961
61 specifications
- Noise24 dB
- TypeLarge venue projector
- Weight22.5 kg
- ColourBlack
- Projector brightness2200 ANSI lumens
- Light source typeLaser
Overview
- Noise
- 24 dB
- Type
- Large venue projector
- Weight
- 22.5 kg
- Colour
- Black
- Projector brightness
- 2200 ANSI lumens
- Light source type
- Laser
- Brand
- JVC
- Category
- Data Projector
- Model
- DLA-NZ7BE
- Part number
- DLA-NZ7BE
- EAN / UPC
- 4975769021961
- Also known as
- JVC DLA-NZ7BE data projector Large venue projector 2200 ANSI lumens D-ILA DCI 4K (4096x2160) 3D Black
Specifications
61 specifications in 15 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 2200 ANSI lumens |
| Projection technology | D-ILA |
| Projector native resolution | DCI 4K (4096x2160) |
| Contrast ratio (typical) | 40000:1 |
| Screen size compatibility | 1524 - 5080 mm (60 - 200") |
| Colour gamut | 100% |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
| Lamp type | BLU-Escent |
Lens system
| Specification | Value |
|---|---|
| Focus | Auto/Manual |
| Auto aperture modes | High mode, Low mode, Normal mode |
| Zoom capability | Yes |
| Zoom type | Auto/Manual |
| Zoom ratio | 2.0:1 |
| Throw ratio | 1.43 - 2.92:1 |
| Horizontal lens shift range | -34 - 34% |
| Vertical lens shift range | -80 - 80% |
Video
| Specification | Value |
|---|---|
| Full HD | Yes |
| 3D | Yes |
| Supported 3D formats | Frame packing, Side by side, Top and bottom |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080) |
| Supported video modes | 720p, 1080i, 1080p |
| Video colour modes | BT.709, Cinema, Game, Natural |

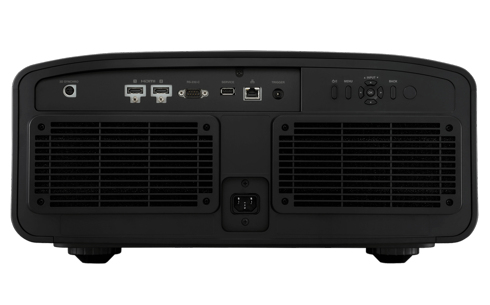

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 2 |
| USB 2.0 Type-A ports quantity | 1 |
| Headphone outputs | 1 |
| Serial interface type | RS-232 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
Features
| Specification | Value |
|---|---|
| Noise level | 24 dB |
| HDCP | Yes |
| Preset modes | Cinema, Game |
| Standby timer | Yes |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | Filmmaker Mode, High Dynamic Range 10 (HDR10), High Dynamic Range 10+ (HDR10 Plus), Hybrid Log-Gamma (HLG) |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
Design
| Specification | Value |
|---|---|
| Product type | Large venue projector |
| Market positioning | Home cinema |
| Product colour | Black |
| Placement | Desktop |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 420 W |
| Power consumption (standby) | 1.5 W |
| Power consumption (economy mode) | 0.2 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Supplier features
| Specification | Value |
|---|---|
| Recommended gender | Any gender |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 20 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 22.5 kg |
| Width | 500 mm |
| Depth | 505 mm |
| Height | 234 mm |
| Package width | 640 mm |
| Package depth | 665 mm |
| Package height | 415 mm |
| Package weight | 2.79 kg |
Packaging content
| Specification | Value |
|---|---|

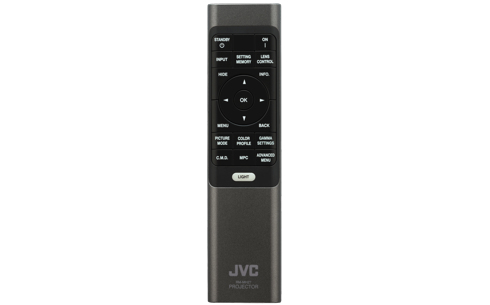

| Remote control included | Yes |
| Manual | Yes |
