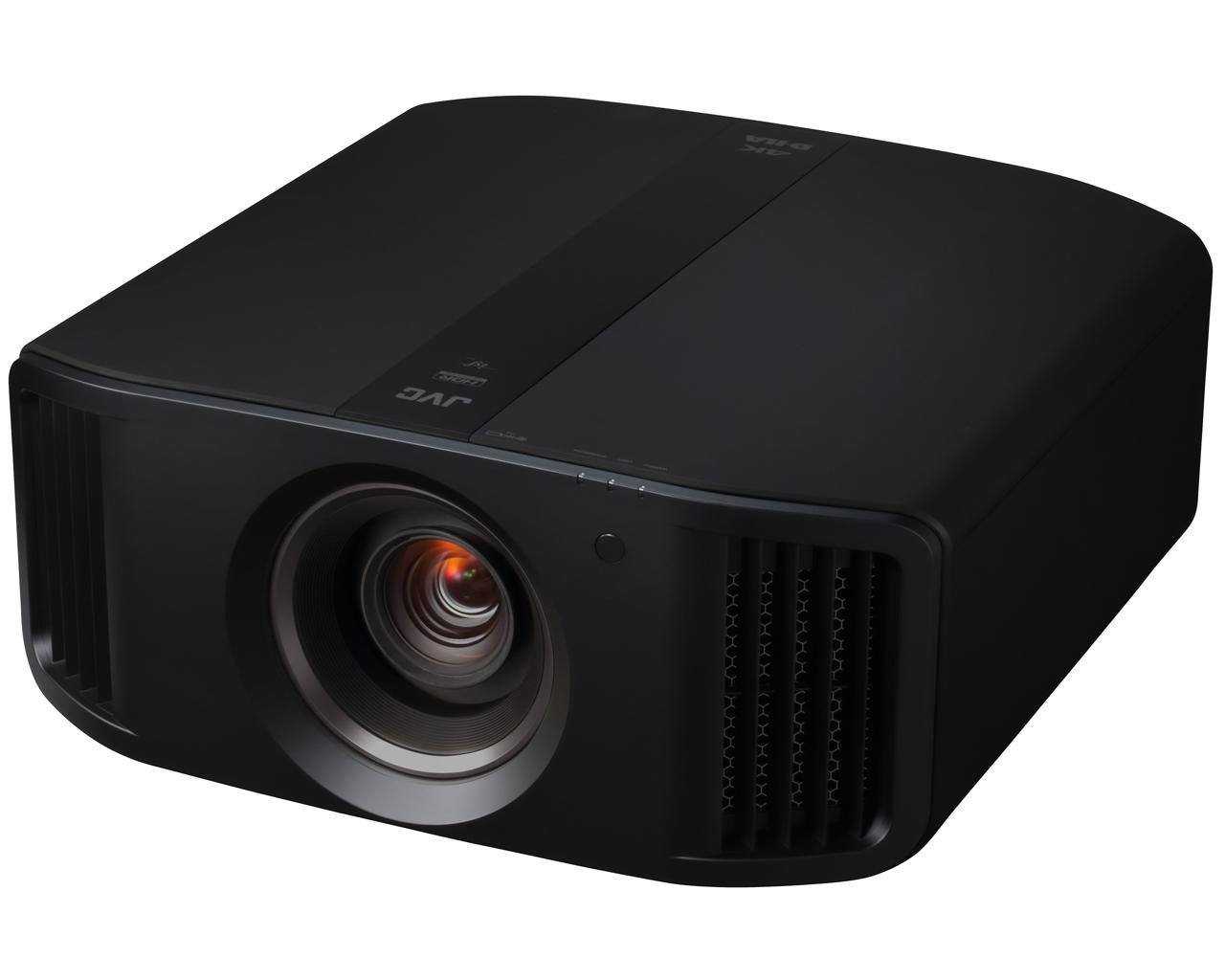

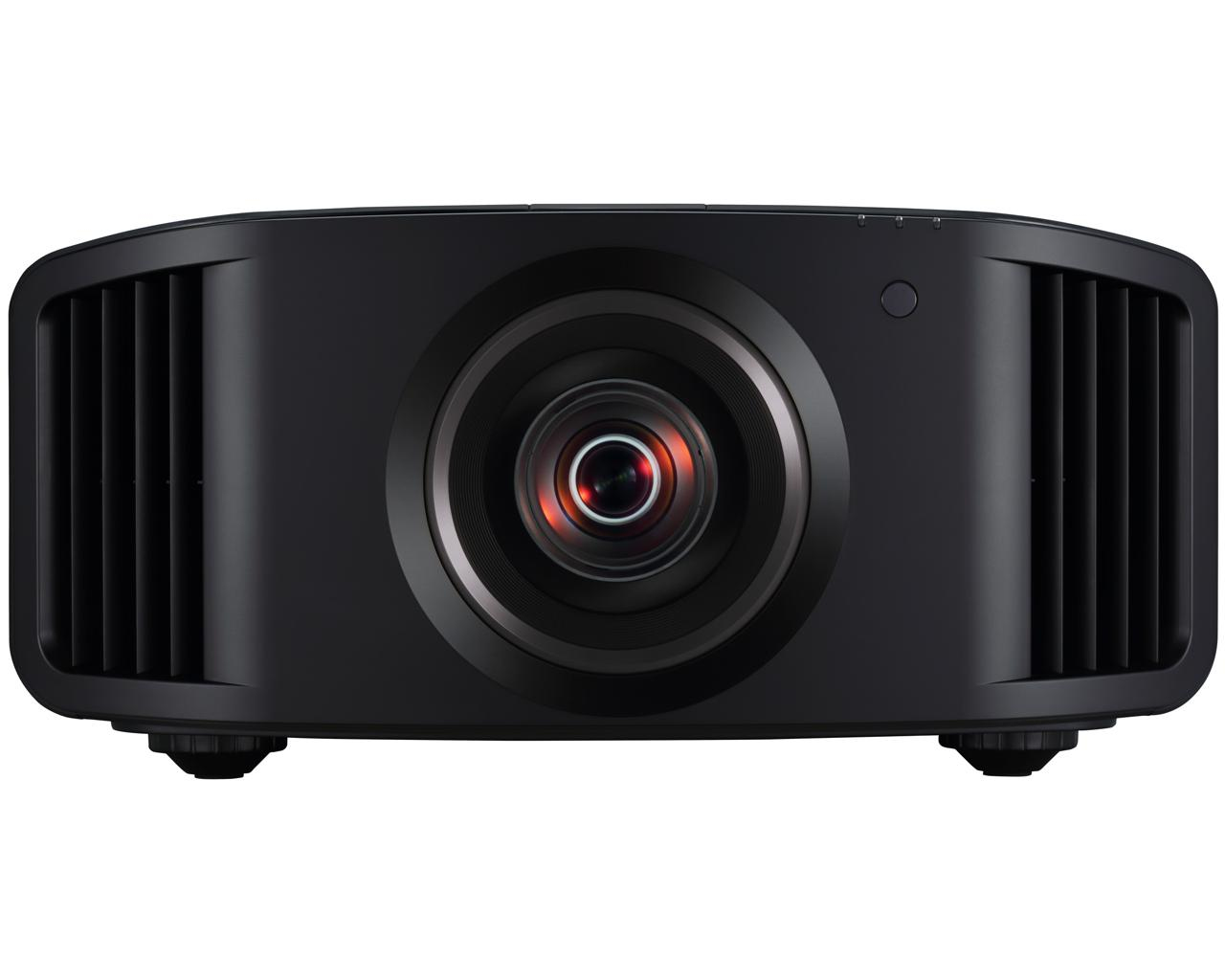

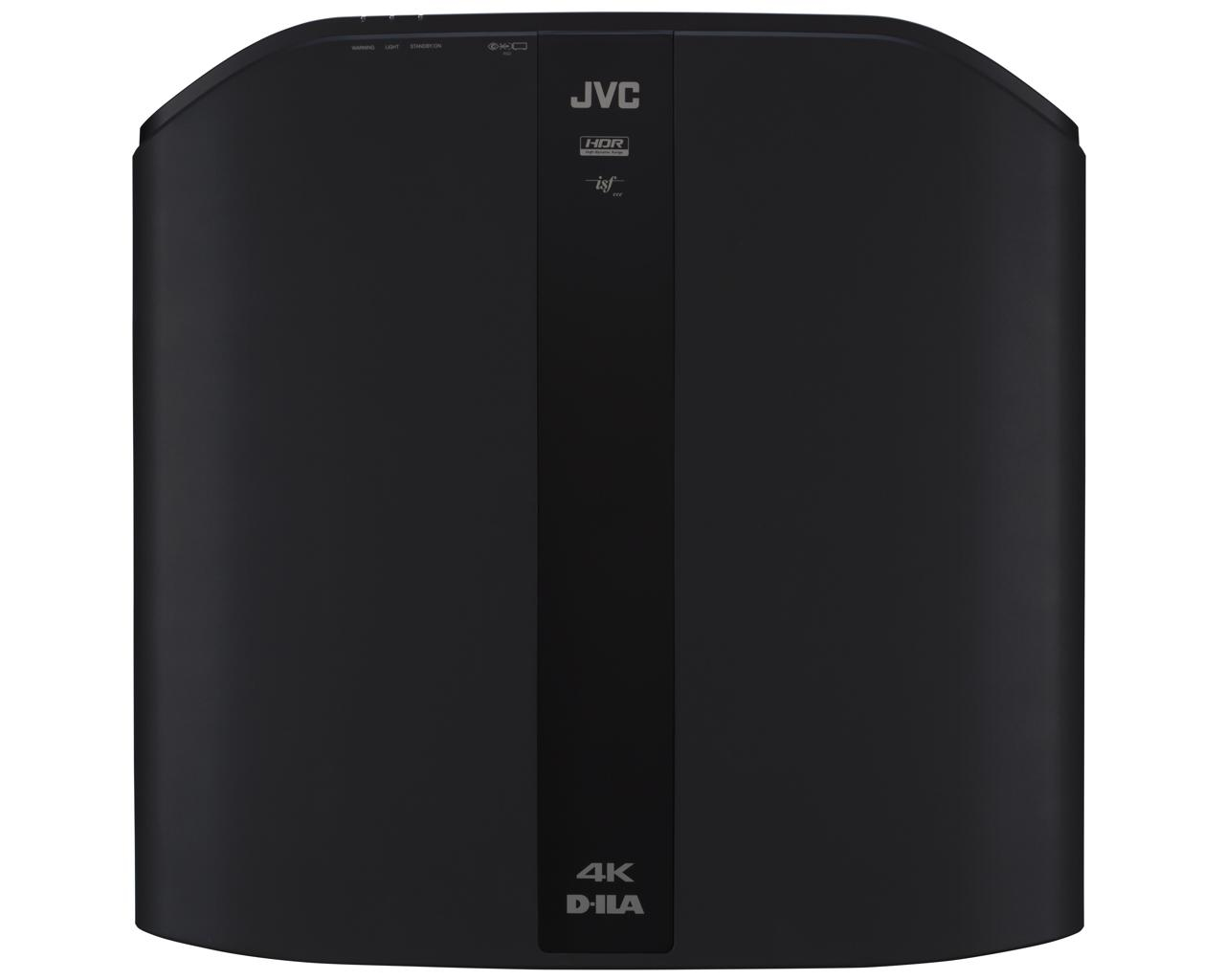

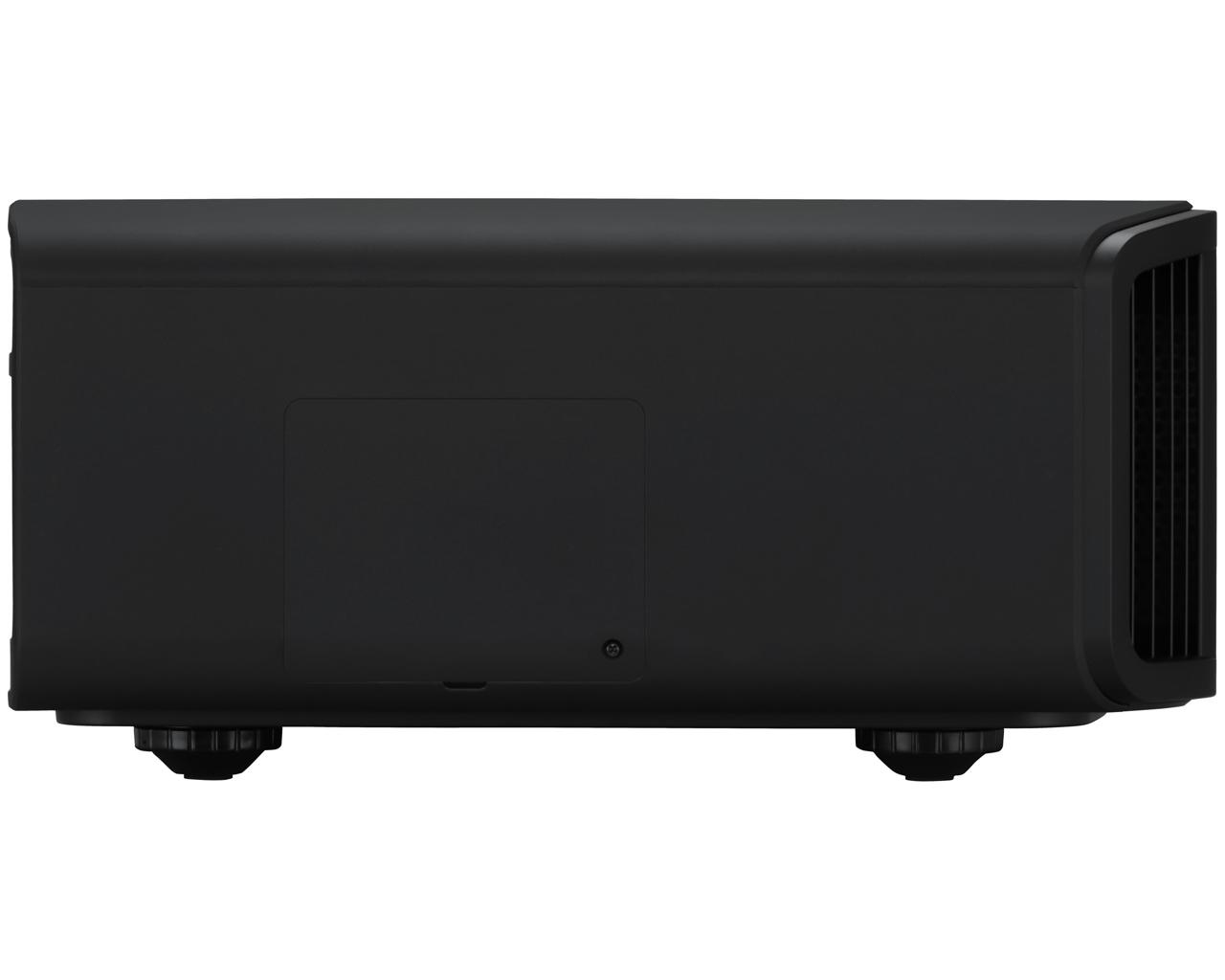

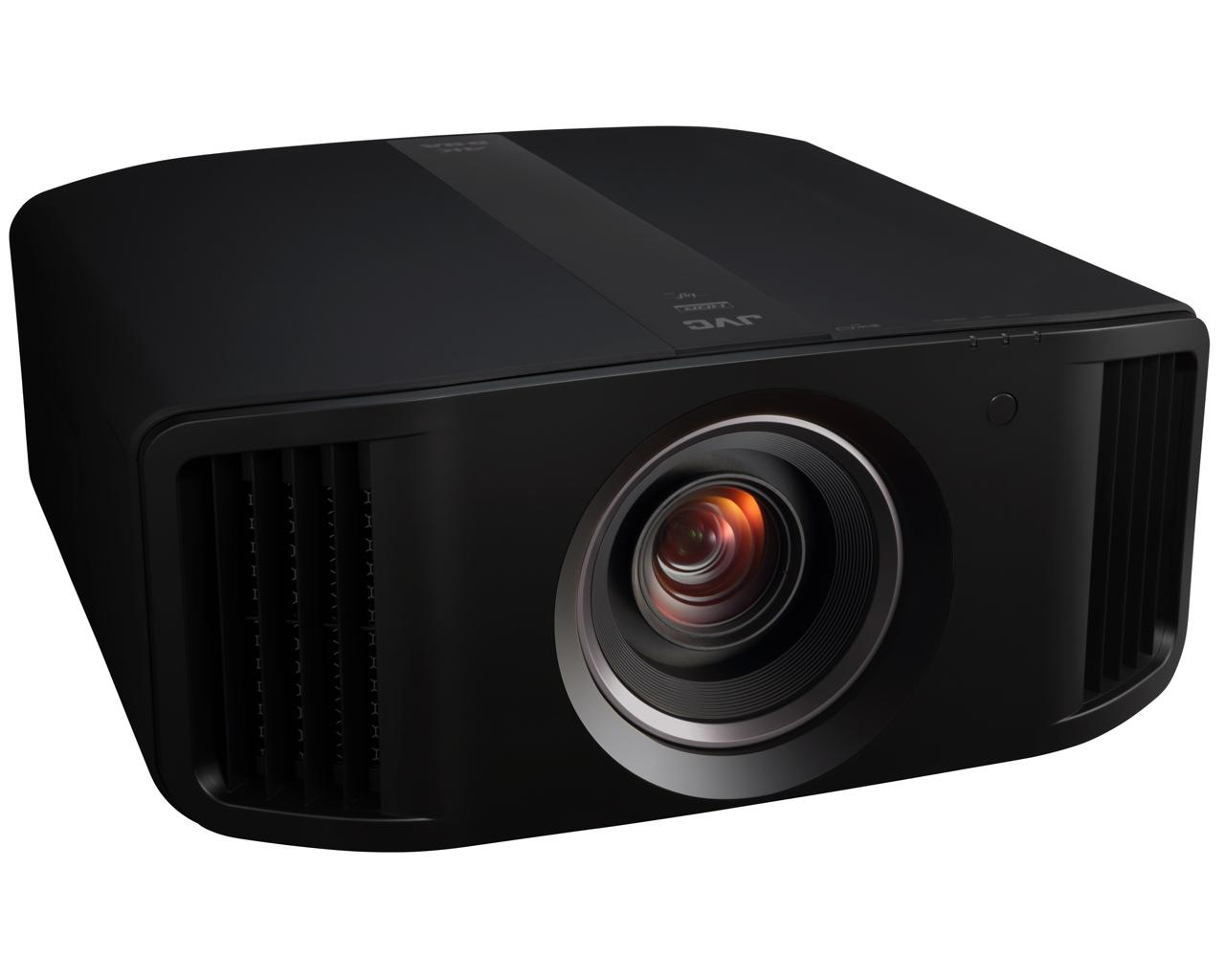

DLA-N7B data projector Large venue projector 1900 ANSI lumens D-ILA DCI 4K (4096x2160) 3D Black
Model DLA-N7B
47 specifications
- Noise25 dB
- TypeLarge venue projector
- Weight19.8 kg
- ColourBlack
- Projector brightness1900 ANSI lumens
- Light source typeLamp
Overview
- Noise
- 25 dB
- Type
- Large venue projector
- Weight
- 19.8 kg
- Colour
- Black
- Projector brightness
- 1900 ANSI lumens
- Light source type
- Lamp
- Brand
- JVC
- Category
- Data Projector
- Model
- DLA-N7B
- Part number
- DLA-N7B
- Also known as
- JVC DLA-N7B data projector Large venue projector 1900 ANSI lumens D-ILA DCI 4K (4096x2160) 3D Black
Specifications
47 specifications in 14 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 1900 ANSI lumens |
| Projection technology | D-ILA |
| Projector native resolution | DCI 4K (4096x2160) |
| Contrast ratio (typical) | 80000:1 |
| Contrast ratio (dynamic) | 800000:1 |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 4500 h |
| Lamp type | NSH |
| Lamp power | 265 W |
Lens system
| Specification | Value |
|---|---|
| Horizontal lens shift range | -34 - 34% |
| Vertical lens shift range | -80 - 80% |
Video
| Specification | Value |
|---|---|
| Full HD | Yes |
| 3D | Yes |
| Supported video modes | 480p, 576p, 720p, 1080i, 1080p, 2160p |
Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 2 |
| Component video (YPbPr/YCbCr) in | 0 |
| Composite video in | 0 |
| DVI port | No |
| S-Video inputs quantity | 0 |
| USB 2.0 ports quantity | 1 |
| Audio (L/R) in | 0 |
| Serial interface type | RS-232C |
| AC (power) in | Yes |
Network
| Specification | Value |
|---|---|
| Smart TV | No |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | No |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Noise level | 25 dB |
| HDCP | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
Design
| Specification | Value |
|---|---|
| Product type | Large venue projector |
| Product colour | Black |
| Placement | Desktop |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 400 W |
| Power consumption (standby) | 1.5 W |
| Power consumption (economy mode) | 0.3 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 19.8 kg |
| Width | 500 mm |
| Depth | 495 mm |
| Height | 234 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
