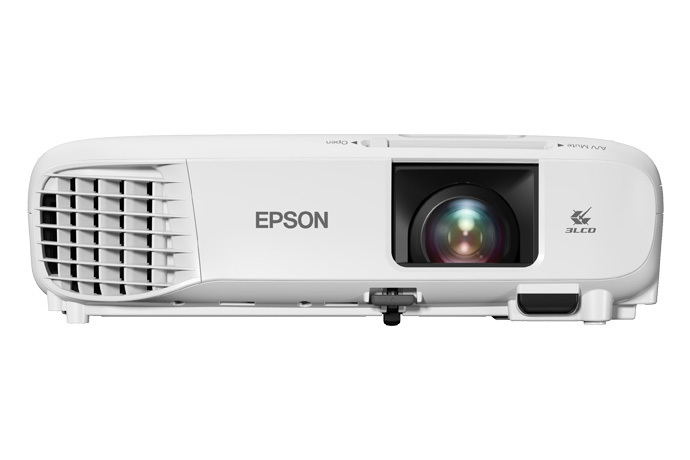

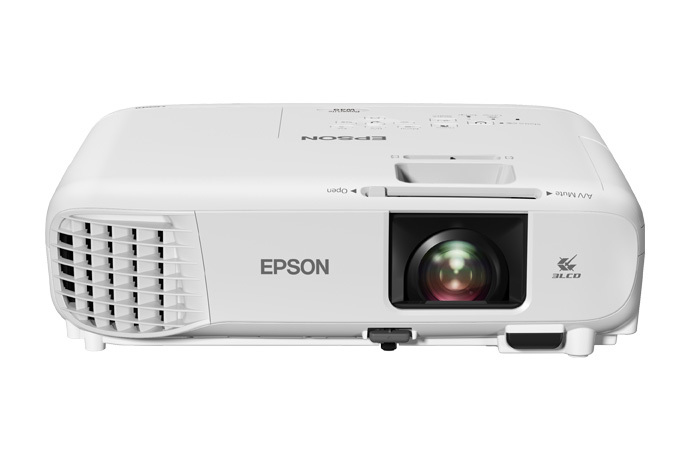

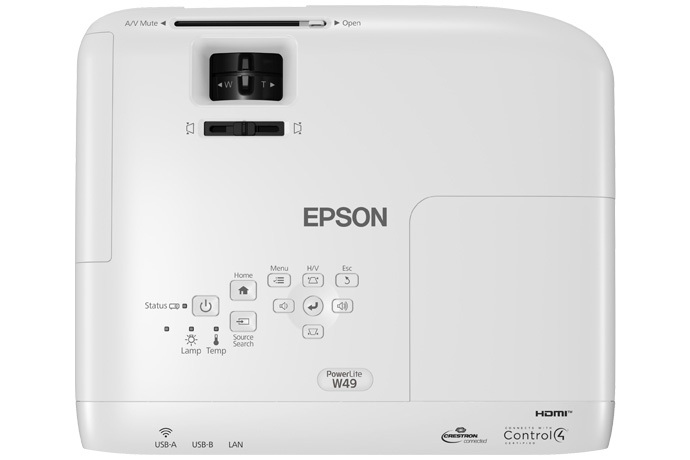

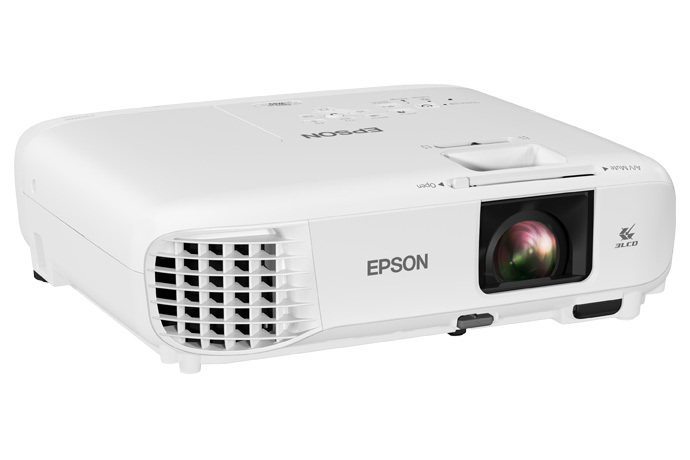

PowerLite W49 Standard throw projector 3800 ANSI lumens 3LCD WXGA (1280x800) White
Model W49Part no. V11H983020EAN 010343954144
63 specifications
- Noise37 dB
- TypeStandard throw projector
- Weight2.7 kg
- ColourWhite
- Projector brightness3800 ANSI lumens
- Light source typeLamp
Overview
- Noise
- 37 dB
- Type
- Standard throw projector
- Weight
- 2.7 kg
- Colour
- White
- Projector brightness
- 3800 ANSI lumens
- Light source type
- Lamp
- Brand
- Epson
- Category
- Data Projector
- Model
- W49
- Part number
- V11H983020
- EAN / UPC
- 010343954144
- Also known as
- Epson PowerLite W49 Standard throw projector 3800 ANSI lumens 3LCD WXGA (1280x800) White
Specifications
63 specifications in 14 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 3800 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | WXGA (1280x800) |
| Contrast ratio (typical) | 16000:1 |
| Native aspect ratio | 16:10 |
| Screen size compatibility | 838.2 - 8128 mm (33 - 320") |
| Projection distance | 0.91 - 9.07 m |
| Number of colours | 1.073 billion colours |
| Colour light output | 3800 ANSI lumens |
| Keystone correction, horizontal | ±30° |
| Keystone correction, vertical | ±30° |
| Matrix type | 3-panel (p-Si TFT active) |
| White light output | 3800 ANSI lumens |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 8000 h |
| Service life of light source (economic mode) | 17000 h |
| Lamp type | UHE |
| Lamp power | 210 W |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Focal length range | 16.9 - 20.28 mm |
| Aperture range (F-F) | 1.49 - 1.72 |
| Zoom ratio | 1.2:1 |
| Throw ratio | 1.30 - 1.56 |
Video
| Specification | Value |
|---|---|
| Analog signal format system | NTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM |
| Supported graphics resolutions | 640 x 480 (VGA), 800 x 600 (SVGA), 1280 x 1024 (SXGA), 1280 x 960, 1366 x 768, 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA) |

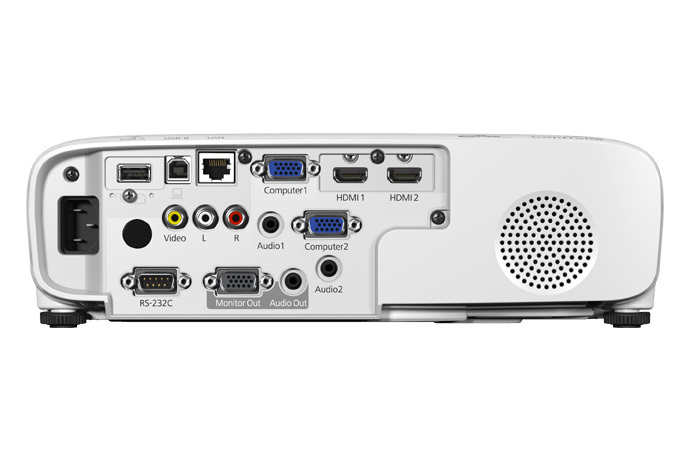

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 2 |
| USB 2.0 Type-B ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Audio (L/R) in | 1 |
| Microphone in | Yes |
| PC Audio out | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
Features
| Specification | Value |
|---|---|
| Noise level | 37 dB |
| Noise level (economic mode) | 28 dB |
| Projection modes | Ceiling, Front, Rear |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 16 W |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Market positioning | Presentation |
| Product colour | White |
| Placement | Ceiling |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 345 W |
| Power consumption (standby) | 2 W |
| Power consumption (economy mode) | 235 W |
| AC input voltage | 100 – 240 |
| AC input frequency | 50 / 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.7 kg |
| Width | 300 mm |
| Depth | 249 mm |
| Height | 91 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | AC, VGA |
| Packaging content | PowerLite W49 Projector Power cord Computer cable (VGA) Projector remote control Batteries Software CD Quick setup sheet Warranty card |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
