Epson VS230 Large venue projector 2800 ANSI lumens 3LCD SVGA (800x600) Black, White

Epson VS230 Large venue projector 2800 ANSI lumens 3LCD SVGA (800x600) Black, White

Model VS230Part no. V11H552220EAN 010343909403

71 specifications
  • Noise37 dB
  • TypeLarge venue projector
  • Weight2.31 kg
  • ColourBlack, White
  • Projector brightness2800 ANSI lumens
  • Light source typeLamp
See all specifications

Overview

Noise
37 dB
Type
Large venue projector
Weight
2.31 kg
Colour
Black, White
Projector brightness
2800 ANSI lumens
Light source type
Lamp
Brand
Epson
Model
VS230
Part number
V11H552220
EAN / UPC
010343909403
Also known as
Epson VS230 Large venue projector 2800 ANSI lumens 3LCD SVGA (800x600) Black, White

Specifications

71 specifications in 17 groups

Projector

Projector brightness2800 ANSI lumens
Projection technology3LCD
Projector native resolutionSVGA (800x600)
Contrast ratio (typical)10000:1
Native aspect ratio4:3
Supported aspect ratios4:3
Screen size compatibility762 - 8890 mm (30 - 350")
Projection distance0.75 - 8.89 m
Projection distance (wide)0.75 - 0.75 m
Projection distance (tele)8.89 - 8.89 m
Number of colours1.073 billion colours
Colour light output2800 ANSI lumens
Keystone correction, vertical-30 - 30°
Matrix type3-panel (p-Si TFT active)
White light output2800 ANSI lumens

Light source

Light source typeLamp
Service life of light source5000 h
Service life of light source (economic mode)6000 h
Lamp typeUHE
Lamp power200 W
Lamps quantity1 lamp(s)

Lens system

FocusManual
Focal length range16.77 - 16.77 mm
Aperture range (F-F)1.44 - 1.44
Zoom ratio1.35:1
Throw ratio1.45 - 1.96:1

Video

Analog signal format systemNTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM
Full HDNo
HD-ReadyYes
3DNo
Supported graphics resolutions1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 800 (WXGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 640 x 480 (VGA)
Video processing10 bit

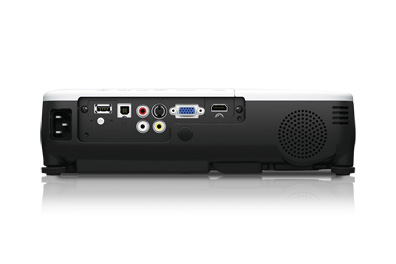

Ports & interfaces

VGA (D-Sub) ports quantity1
HDMI ports quantity1
Component video (YPbPr/YCbCr) in0
Composite video in1
DVI portNo
S-Video inputs quantity1
USB 2.0 ports quantity2
Audio (L/R) in1
DC-in jackYes

Network

Ethernet LANNo
Ethernet LAN (RJ-45) ports0
Wi-FiNo

Storage

Card reader integratedNo

Features

Noise level37 dB
Noise level (economic mode)29 dB

Multimedia

Built-in speaker(s)Yes
Number of built-in speakers1
RMS rated power2 W

Design

Product typeLarge venue projector
Product colourBlack, White
PlacementDesktop, Ceiling
Cable lock slotYes
Cable lock slot typeKensington
LED indicatorsYes

Display

Built-in displayNo

Power

Power sourceAC
Power consumption (typical)283 W
Power consumption (economy mode)207 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Software

Windows operating systems supportedYes
Mac operating systems supportedYes

Operational conditions

Operating temperature (T-T)5 - 35 °C

Weight & dimensions

Weight2.31 kg
Width294.6 mm
Depth228.6 mm
Height76.2 mm

Packaging content

Remote control includedYes

Other features

RS-232 ports0
