Lifestudio Pop — EF-61R Rose Quartz
Model V11HB72240EAN 8715946741536
80 specifications
- Noise24 dB
- OSGoogle TV
- Weight1.6 kg
- ColourRose
- Projector brightness700 ANSI lumens
- Light source typeLED
Overview
- Noise
- 24 dB
- OS
- Google TV
- Weight
- 1.6 kg
- Colour
- Rose
- Projector brightness
- 700 ANSI lumens
- Light source type
- LED
- Brand
- Epson
- Category
- Data Projector
- Model
- V11HB72240
- Part number
- V11HB72240
- EAN / UPC
- 8715946741536
- Also known as
- Epson Lifestudio Pop — EF-61R Rose Quartz
Specifications
80 specifications in 16 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 700 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | 1080p (1920x1080) |
| Contrast ratio (typical) | 5000000:1 |
| Native aspect ratio | 16:9 |
| Screen size compatibility | 762 - 3810 mm (30 - 150") |
| Projection distance | 0.8 - 4 m |
| Projection distance (wide) | 0.8 - 4 m |
| Contrast ratio (dynamic) | 5000000:1 |
| Number of colours | 1.07 billion colours |
| Vertical scan range | 192 - 240 Hz |
| Keystone correction, horizontal | ±20° |
| Keystone correction, vertical | ±20° |
| Matrix size | 1.57 cm (0.62") |
Light source
| Specification | Value |
|---|---|
| Light source type | LED |
| Service life of light source | 20000 h |
| Service life of light source (economic mode) | 20000 h |
Lens system
| Specification | Value |
|---|---|
| Focal length range | 16.6 mm |
| F-number (relative aperture) | 1.6 |
| Zoom capability | Yes |
| Throw ratio | 1.20:1 |
Video
| Specification | Value |
|---|---|
| Full HD | Yes |
| Colour modes (2D) | Cinema, Dynamic, Natural, Vivid |
| Video colour modes | Cinema, Dynamic, Natural, Vivid |
| Video processing | 10 bit |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 1 |
| DVI port | No |
| USB 2.0 Type-A ports quantity | 1 |
| USB 2.0 Type-B ports quantity | 1 |
| Audio Return Channel (ARC) | Yes |
| Enhanced Audio Return Channel (eARC) | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Bluetooth | Yes |
Features
| Specification | Value |
|---|---|
| Noise level | 24 dB |
| Noise level (economic mode) | 20 dB |
| Country of origin | Philippines |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10), Hybrid Log-Gamma (HLG) |
| Works with the Google Assistant | Yes |
| Operating system installed | Google TV |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 10 W |
| Audio decoders | Dolby Audio |
Design
| Specification | Value |
|---|---|
| Product colour | Rose |
| Placement | Desktop, Floor |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 83 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (max) | 95 W |
| Power consumption (economy mode) | 56 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.6 kg |
| Width | 199 mm |
| Depth | 190 mm |
| Height | 75 mm |
| Package width | 260 mm |
| Package depth | 275 mm |
| Package height | 200 mm |
| Package weight | 3.17 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
Technical details
| Specification | Value |
|---|---|
| Other features | Auto Power On, Auto shape correction, Auto source search, Automatic keystone correction, Built-in speaker, Chromecast, Digital zoom, Fit to Screen, Frame interpolation, Game mode, Google TV, Quick Corner, Screen fit |
| Power consumption | 83 Watt (Normal On-Mode), 95 Watt (Normal Peak-mode), 56 Watt (Eco Peak-Mode), 0.5 Watt (Energy saving standby) |
| Speaker | 5W + 5W, 2-way with dual passive radiator |
Logistics data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Products per pallet | 100 pc(s) |
| Products per pallet (UK) | 100 pc(s) |
| Products per pallet layer | 10 pc(s) |
| Products per pallet layer (UK) | 10 pc(s) |
Other features
| Specification | Value |
|---|---|
| Audio system | Sound by Bose |
| Interface | USB 2.0-A, USB 2.0 Type B (Service Only), Jack plug out, HDMI (ARC/eARC), Wi-Fi 6, Bluetooth® 5.2 |
| Option type | Safety wire set |

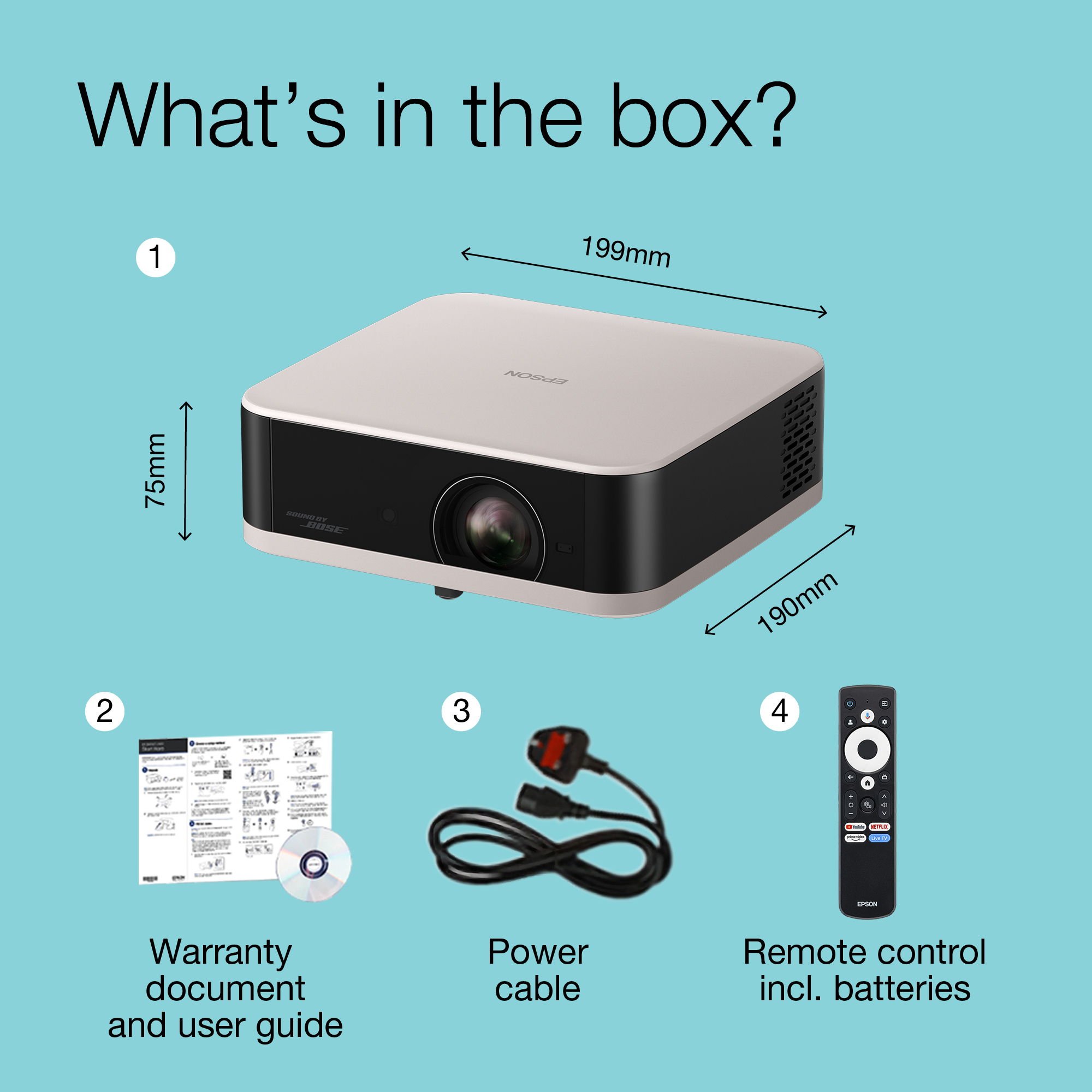

| Box contents | Main unit, Power cable, Quick Start Guide, Remote control incl. batteries, User manual, Warranty document |
| Control panel | 0.62 inch |
