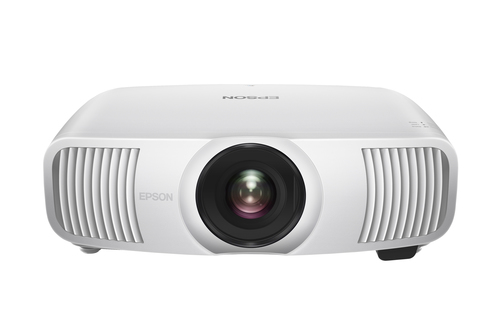

V11HA48040
Model V11HA48040EAN 8715946700748
89 specifications
- Noise30 dB
- TypeProjector module
- Weight12.7 kg
- ColourWhite
- Projector brightness2500 ANSI lumens
- Light source typeLaser
Overview
- Noise
- 30 dB
- Type
- Projector module
- Weight
- 12.7 kg
- Colour
- White
- Projector brightness
- 2500 ANSI lumens
- Light source type
- Laser
- Brand
- Epson
- Category
- Data Projector
- Model
- V11HA48040
- Part number
- V11HA48040
- EAN / UPC
- 8715946700748
- Also known as
- Epson EH-LS11000W
Specifications
89 specifications in 18 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 2500 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | UHD 4K (3840x2160) |
| Contrast ratio (typical) | 1800:1 |
| Native aspect ratio | 16:9 |
| Screen size compatibility | 1270 - 7620 mm (50 - 300") |
| Projection distance | 3 - 6.4 m |
| Contrast ratio (dynamic) | 2500000:1 |
| Number of colours | 1.07 billion colours |
| Vertical scan range | 384 - 480 Hz |
| Keystone correction, horizontal | ±30° |
| Keystone correction, vertical | ±30° |
| Matrix size | 1.88 cm (0.74") |
| Heat dissipation | 1026.8 BTU/h |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
| Service life of light source (economic mode) | 20000 h |
Lens system
| Specification | Value |
|---|---|
| Focus | Motorized |
| Focal length range | 22.5 - 46.7 mm |
| Aperture range (F-F) | 2 - 3 |
| Zoom type | Auto |
| Zoom ratio | 2.1:1 |
| Throw ratio | 1.35 - 2.84:1 |
| Horizontal lens shift range | -47.1 - -47.1% |
| Vertical lens shift range | -96.3 - -96.3% |
| Lens position memory | 10 |
Video
| Specification | Value |
|---|---|
| Analog signal format system | Not supported |
| Full HD | Yes |
| 3D | No |
| Colour modes (2D) | Bright cinema, Cinema, Dynamic, Natural, Vivid |
| Video colour modes | Bright cinema, Cinema, Dynamic, Natural, Vivid |
| Video processing | 10 bit |
Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 3 |
| DVI port | No |
| USB 2.0 ports quantity | 3 |
| USB 2.0 Type-B ports quantity | 1 |
| Serial interface type | RS-232C |
| Audio Return Channel (ARC) | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Noise level | 30 dB |
| Noise level (economic mode) | 22 dB |
| 2D/3D frequency image | 384 / 480 Hz |
| Country of origin | Philippines |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | High Dynamic Range 10+ (HDR10 Plus), Hybrid Log-Gamma (HLG) |
Design
| Specification | Value |
|---|---|
| Product type | Projector module |
| Market positioning | Home cinema |
| Product colour | White |
| Placement | Ceiling, Desktop |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 302 W |
| Power consumption (standby) | 0.4 W |
| Power consumption (economy mode) | 198 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Software
| Specification | Value |
|---|---|
| Software support | via: Crestron Integrated Partner, AMX Device Discovery, Control4 Simple Device Discovery Protocol |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 12.7 kg |
| Width | 520 mm |
| Depth | 447 mm |
| Height | 193 mm |
| Package width | 555 mm |
| Package depth | 695 mm |
| Package height | 270 mm |
| Package weight | 16.9 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | AC |
Technical details
| Specification | Value |
|---|---|
| Other features | 4K enhancement, A/V mute, Digital zoom, Frame interpolation, Horizontal and vertical keystone correction, Instant on/off, Lens position memory, Long light source life, Super resolution |
| Power consumption | 302 Watt (Normal Peak-mode), 198 Watt (Eco Peak-Mode), 0.4 Watt (Energy saving standby) |
Logistics data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85286200 |
| Pallet gross weight | 0 g |
| Pallet weight (UK) | 0 g |
| Products per pallet | 14 pc(s) |
| Products per pallet (UK) | 14 pc(s) |
Other features
| Specification | Value |
|---|---|
| Interface | USB 1.0-A (2x), USB 2.0 Mini-B, RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Trigger out, HDMI ARC, HDMI (HDCP 2.3) (2x) |
| Security features | Kensington lock |
| Box contents | Main unit, Power cable, Remote control incl. batteries, User guide |
| Control panel | 0.74 inch with C2 Fine |
