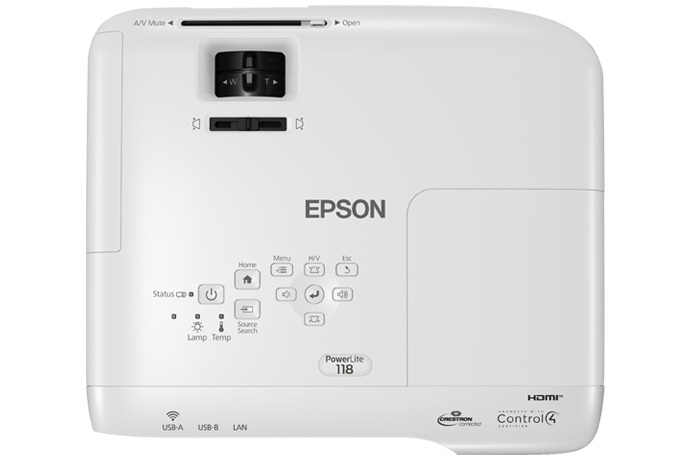

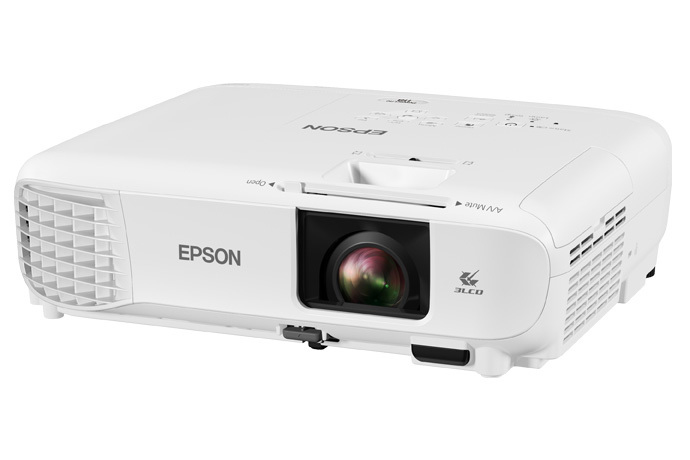

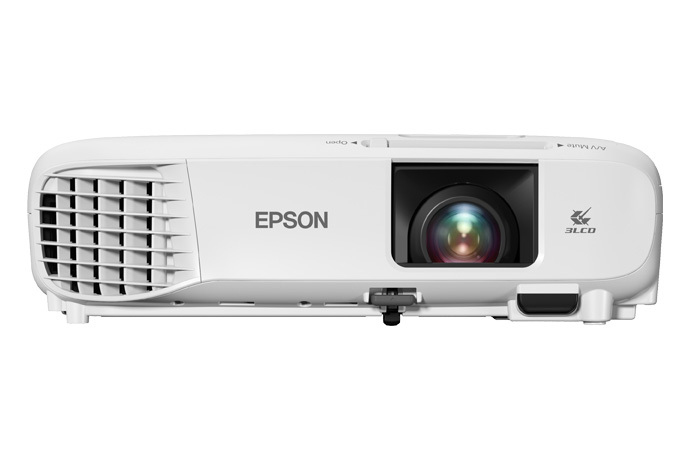

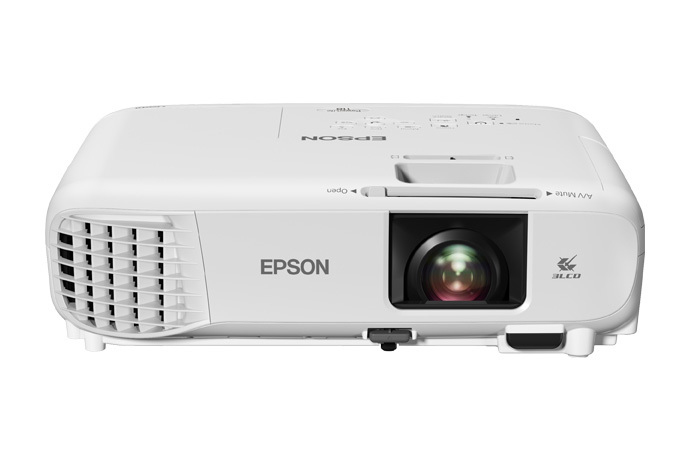

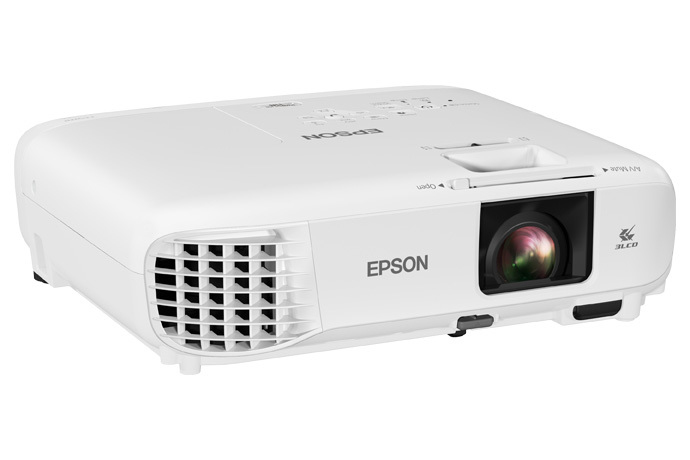

PowerLite V11HA03020 data projector Standard throw projector 3800 ANSI lumens 3-Chip DLP XGA (1024x768) White
Model V11HA03020EAN 010343954151
72 specifications
- Noise37 dB
- TypeStandard throw projector
- Weight2.8 kg
- ColourWhite
- Projector brightness3800 ANSI lumens
- Light source typeLamp
Overview
- Noise
- 37 dB
- Type
- Standard throw projector
- Weight
- 2.8 kg
- Colour
- White
- Projector brightness
- 3800 ANSI lumens
- Light source type
- Lamp
- Brand
- Epson
- Category
- Data Projector
- Model
- V11HA03020
- Part number
- V11HA03020
- EAN / UPC
- 010343954151
- Also known as
- Epson PowerLite V11HA03020 data projector Standard throw projector 3800 ANSI lumens 3-Chip DLP XGA (1024x768) White
Specifications
72 specifications in 15 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 3800 ANSI lumens |
| Projection technology | 3-Chip DLP |
| Projector native resolution | XGA (1024x768) |
| Contrast ratio (typical) | 16000:1 |
| Native aspect ratio | 4:3 |
| Screen size compatibility | 7620 - 7620 mm (300 - 300") |
| Projection distance | 0.89 - 9.12 m |
| Number of colours | 1.07 billion colours |
| Keystone correction, horizontal | 30° |
| Matrix type | 3-panel (p-Si TFT active) |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 8000 h |
| Service life of light source (economic mode) | 17000 h |
| Service life of light source (portrait mode) | 10000 h |
| Lamp type | UHE |
| Lamp power | 210 W |
| Lamps quantity | 1 lamp(s) |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Focal length range | 16.9 - 20.28 mm |
| Zoom capability | Yes |
| Zoom ratio | 1.2:1 |
| Throw ratio | 1.48 - 177 |
Video
| Specification | Value |
|---|---|
| Analog signal format system | NTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM |

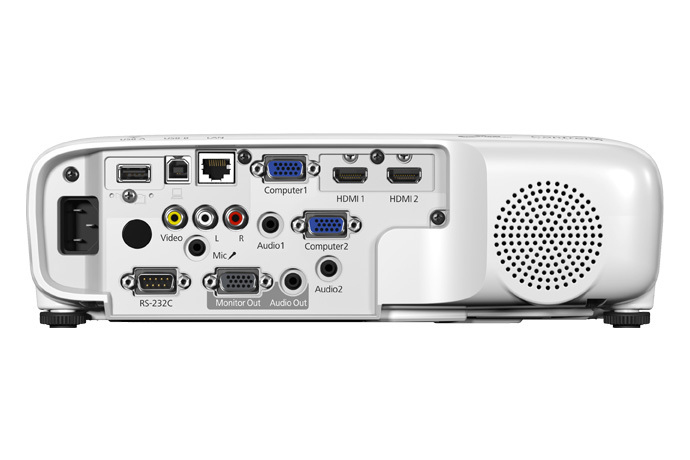

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 2 |
| HDMI ports quantity | 2 |
| HDMI connector type | Full-size |
| Composite video in | 1 |
| DVI port | No |
| USB 2.0 ports quantity | 1 |
| USB 2.0 Type-B ports quantity | 1 |
| Audio (L/R) in | 1 |
| Audio (L/R) out | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Serial interface type | RJ-45, RS-232C |
| PC Audio in | Yes |
| PC in (D-Sub) | Yes |
| AC (power) in | Yes |
Network
| Specification | Value |
|---|---|
| Smart TV | No |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Bluetooth | No |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Noise level | 37 dB |
| Noise level (economic mode) | 28 dB |
| Projection modes | Ceiling, Front, Rear |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 16 W |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Market positioning | Portable |
| Product colour | White |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 345 W |
| Power consumption (standby) | 2 W |
| Power consumption (max) | 345 W |
| Power consumption (economy mode) | 235 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.8 kg |
| Width | 294.6 mm |
| Depth | 259.1 mm |
| Height | 91.4 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Cables included | AC, VGA |
| Manual | Yes |
| Packaging content | PowerLite 118 projector, power cord, computer cable (VGA), projector remote control, batteries, user manual CD, software CD, Quick Setup Sheet, warranty card, password protect sticker |
