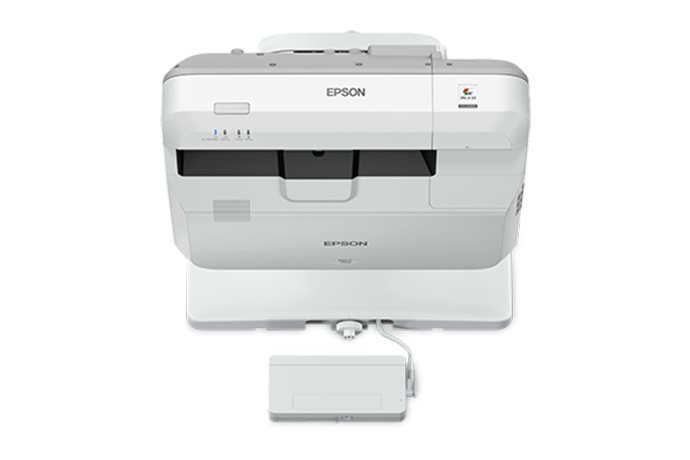

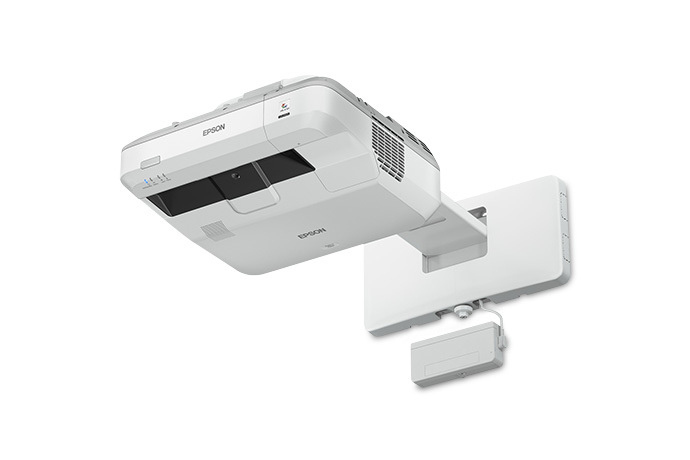

V11H877022 data projector Wall-mounted projector 4000 ANSI lumens LCD WUXGA (1920x1200) White
Model V11H877022
56 specifications
- Noise38 dB
- TypeWall-mounted projector
- Weight24.7 kg
- ColourWhite
- Projector brightness4000 ANSI lumens
- Light source typeLamp
Overview
- Noise
- 38 dB
- Type
- Wall-mounted projector
- Weight
- 24.7 kg
- Colour
- White
- Projector brightness
- 4000 ANSI lumens
- Light source type
- Lamp
- Brand
- Epson
- Category
- Data Projector
- Model
- V11H877022
- Part number
- V11H877022
- Also known as
- Epson V11H877022 data projector Wall-mounted projector 4000 ANSI lumens LCD WUXGA (1920x1200) White
Specifications
56 specifications in 13 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 4000 ANSI lumens |
| Projection technology | LCD |
| Projector native resolution | WUXGA (1920x1200) |
| Contrast ratio (typical) | 2500000:1 |
| Supported aspect ratios | 4:3, 16:10, 16:9 |
| Screen size compatibility | 1788.2 - 2540 mm (70.4 - 100") |
| Number of colours | 1.073 billion colours |
| Colour light output | 4000 ANSI lumens |
| Keystone correction, horizontal | -3 - 3° |
| Keystone correction, vertical | -3 - 3° |
| Matrix type | 3-panel (p-Si TFT active) |
| White light output | 4000 ANSI lumens |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 20000 h |
| Lamp power | 448 W |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Fixed focal length | 4.2 mm |
| Zoom ratio | 1.35:1 |
| Throw ratio | 0.22 - 0.37 |
Video
| Specification | Value |
|---|---|
| Analog signal format system | NTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM |
| Full HD | Yes |

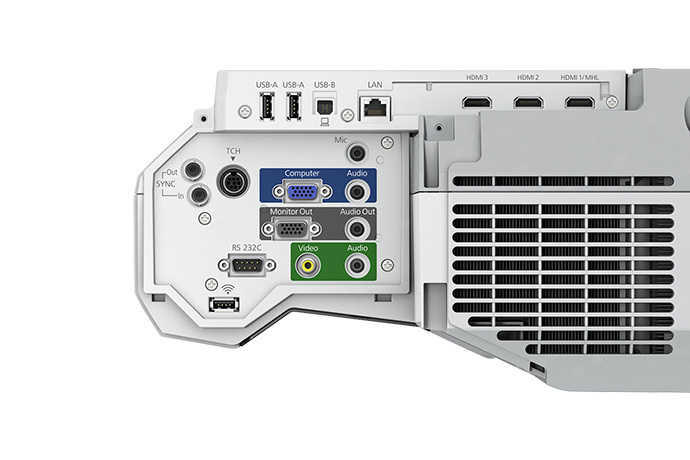

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 2 |
| Component video (YPbPr/YCbCr) in | 1 |
| Composite video in | 1 |
| USB 2.0 ports quantity | 2 |
| USB 2.0 Type-B ports quantity | 1 |
| Audio (L/R) in | 2 |
| Audio (L/R) out | 1 |
| Serial interface type | RS-232C |
| Mobile High-Definition Link (MHL) | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
Features
| Specification | Value |
|---|---|
| Noise level | 38 dB |
| Noise level (economic mode) | 27 dB |
| Compatible operating systems | Microsoft Windows Vista SP2 (All editions except for Starter), Windows 8/8.1, Windows 10, Windows 7 SP1 (All editions except for Starter) Mac OS 10.7/10.8/10.9/10.10/10.11/macOS 10.12.x, UBUNTU 15.10, 16.04 LTX, 16.10, 17.04 |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| RMS rated power | 16 W |
Design
| Specification | Value |
|---|---|
| Product type | Wall-mounted projector |
| Product colour | White |
| Placement | Ceiling, Wall |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 448 W |
| Power consumption (standby) | 2 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 24.7 kg |
| Width | 495.3 mm |
| Depth | 439.4 mm |
| Height | 172.7 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control type | IR |
| Cables included | AC |
| Manual | Yes |
