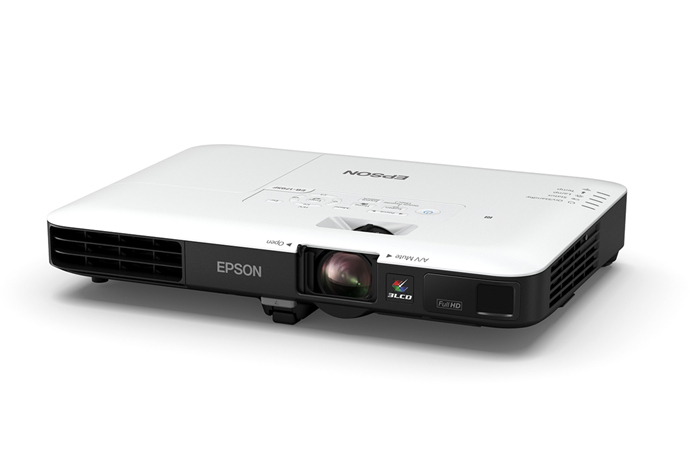

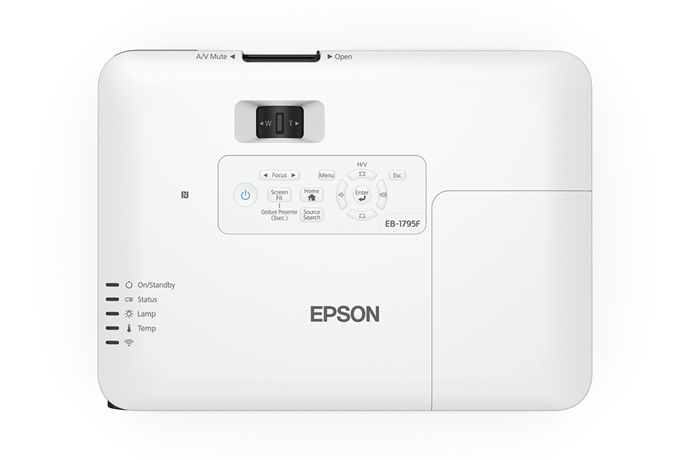

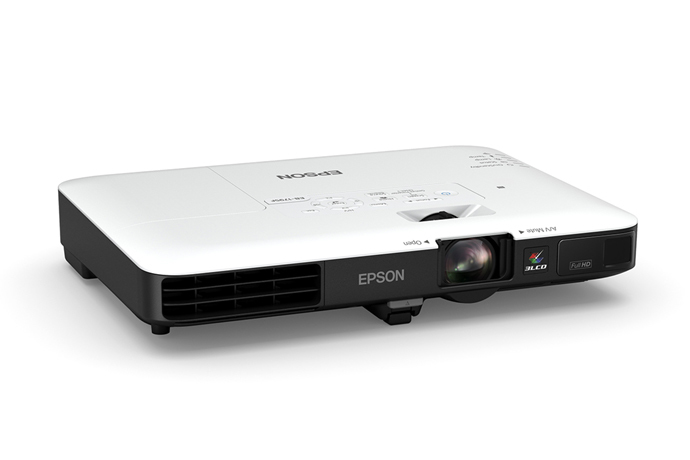

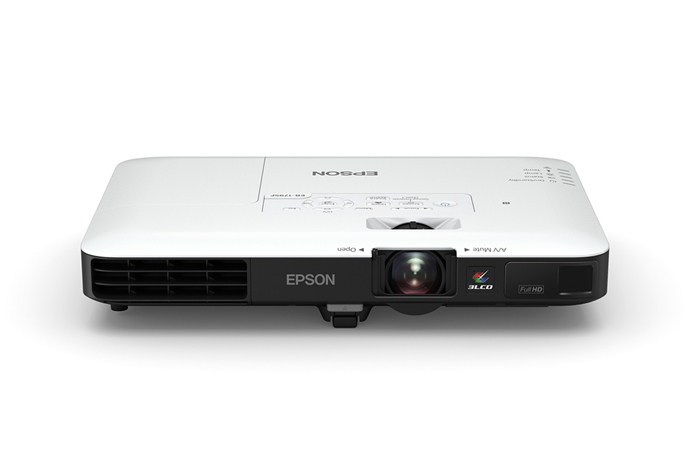

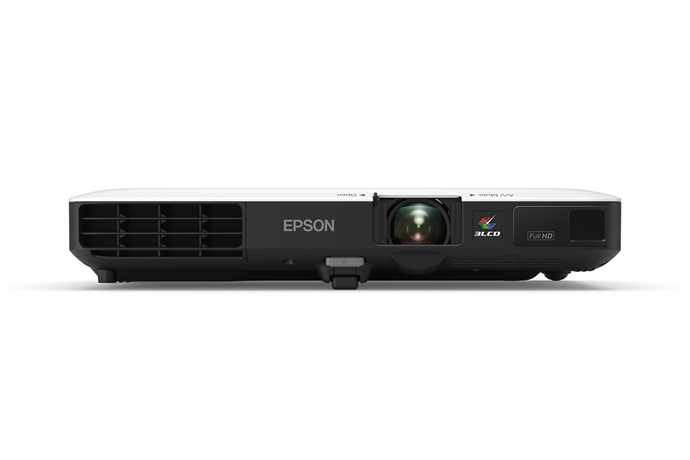

PowerLite V11H796020-N data projector 3200 ANSI lumens 3LCD 1080p (1920x1080) Black, White
Model V11H796020-NEAN 010343931602
67 specifications
- Noise39 dB
- Weight1.81 kg
- ColourBlack, White
- Projector brightness3200 ANSI lumens
- Light source typeLamp
- FocusManual
Overview
- Noise
- 39 dB
- Weight
- 1.81 kg
- Colour
- Black, White
- Projector brightness
- 3200 ANSI lumens
- Light source type
- Lamp
- Focus
- Manual
- Brand
- Epson
- Category
- Data Projector
- Model
- V11H796020-N
- Part number
- V11H796020-N
- EAN / UPC
- 010343931602
- Also known as
- Epson PowerLite V11H796020-N data projector 3200 ANSI lumens 3LCD 1080p (1920x1080) Black, White
Specifications
67 specifications in 15 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 3200 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | 1080p (1920x1080) |
| Contrast ratio (typical) | 10000:1 |
| Native aspect ratio | 16:9 |
| Supported aspect ratios | 16:9 |
| Projection distance | 0.67 - 8.29 m |
| Number of colours | 1.07 billion colours |
| Colour light output | 3200 ANSI lumens |
| Keystone correction, horizontal | -20 - 20° |
| Keystone correction, vertical | -30 - 30° |
| Matrix type | 3-panel (p-Si TFT active) |
| White light output | 3200 ANSI lumens |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 4000 h |
| Service life of light source (economic mode) | 7000 h |
| Light source brightness | 3200 lm |
| Lamp type | UHE |
| Lamp power | 214 W |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Focal length range | 14.06 - 16.82 mm |
| Zoom capability | Yes |
| Zoom type | Manual |
| Throw ratio | 1.02 - 1.23 |
Video
| Specification | Value |
|---|---|
| Analog signal format system | NTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM |
| Full HD | Yes |
| Supported graphics resolutions | 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 800 (WXGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1200 (WUXGA) |
| Supported video modes | 1080p |

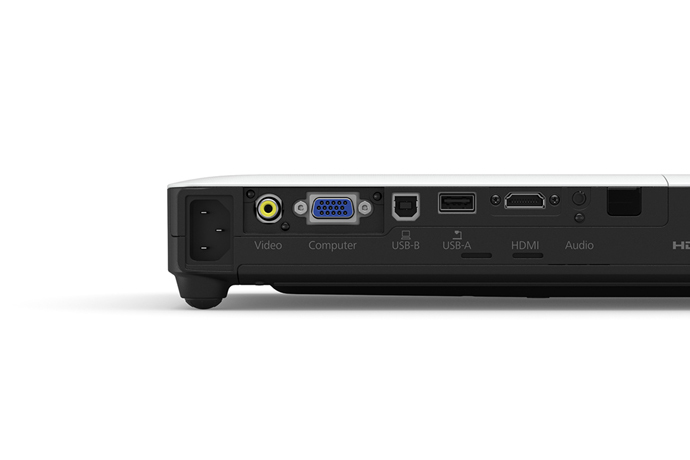

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| Composite video in | 1 |
| USB 2.0 ports quantity | 1 |
| USB 2.0 Type-B ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| PC in (D-Sub) | Yes |
| Mobile High-Definition Link (MHL) | Yes |
| AC (power) in | Yes |
Network
| Specification | Value |
|---|---|
| Smart TV | No |
| Wi-Fi | No |
| Miracast | Yes |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Noise level | 39 dB |
| Noise level (economic mode) | 30 dB |
| Projection modes | Ceiling, Front, Rear |
| Screen mirroring | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 1 W |
Design
| Specification | Value |
|---|---|
| Product colour | Black, White |
| Placement | Ceiling, Desktop |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 309 W |
| Power consumption (economy mode) | 217 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.81 kg |
| Width | 292.1 mm |
| Depth | 213.4 mm |
| Height | 53.3 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | AC, USB, VGA |
| Carrying case | Yes |
| Manual | Yes |
| Packaging content | PowerLite 1795F projector, power cable, computer cable (VGA), USB cable, projector remote control with batteries, soft carrying case, user manual CD, EasyMP software CD, Quick Setup Sheet, registration card |
