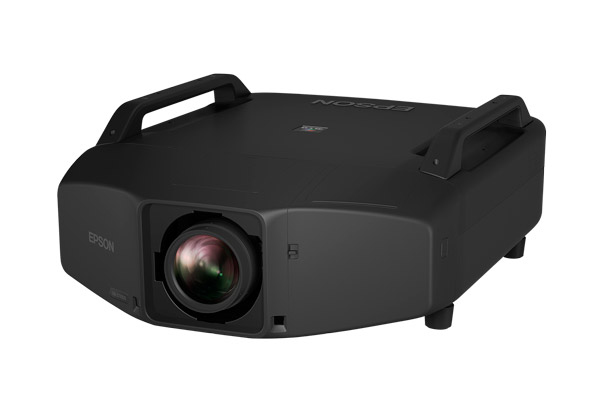

V11H606853 data projector Large venue projector 11000 ANSI lumens LCD XGA (1024x768) Black
Model V11H606853
44 specifications
- Noise40 dB
- TypeLarge venue projector
- Weight26 kg
- ColourBlack
- Projector brightness11000 ANSI lumens
- Light source typeLamp
Overview
- Noise
- 40 dB
- Type
- Large venue projector
- Weight
- 26 kg
- Colour
- Black
- Projector brightness
- 11000 ANSI lumens
- Light source type
- Lamp
- Brand
- Epson
- Category
- Data Projector
- Model
- V11H606853
- Part number
- V11H606853
- Also known as
- Epson V11H606853 data projector Large venue projector 11000 ANSI lumens LCD XGA (1024x768) Black
Specifications
44 specifications in 11 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 11000 ANSI lumens |
| Projection technology | LCD |
| Projector native resolution | XGA (1024x768) |
| Contrast ratio (typical) | 15000:1 |
| Native aspect ratio | 4:3 |
| Screen size compatibility | 1524 - 12700 mm (60 - 500") |
| Projection distance | 3.37 - 5.49 m |
| Projection distance (wide) | 1.99 - 17.17 m |
| Projection distance (tele) | 3.26 - 27.77 m |
| Keystone correction, horizontal | -30 - +30° |
| Keystone correction, vertical | -30 - +30° |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 2000 h |
| Lamp power | 380 W |
| Lamp power (economic mode) | 4000 W |
Lens system
| Specification | Value |
|---|---|
| Focal length range | 36 - 57.35 mm |
| Horizontal lens shift range | -19 - 19% |
| Vertical lens shift range | -56 - 56% |
Video
| Specification | Value |
|---|---|
| Full HD | No |
| 3D | No |
Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 2 |
| HDMI ports quantity | 1 |
| Component video (YPbPr/YCbCr) in | 1 |
| Composite video in | 1 |
| DVI port | Yes |
| S-Video inputs quantity | 1 |
| USB 2.0 ports quantity | 1 |
| Serial interface type | RS-232C |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Noise level | 40 dB |
| Noise level (economic mode) | 35 dB |
Design
| Specification | Value |
|---|---|
| Product type | Large venue projector |
| Product colour | Black |
| Placement | Desktop |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 1060 W |
| Power consumption (standby) | 0.37 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 26 kg |
| Width | 534 mm |
| Depth | 741 mm |
| Height | 255 mm |
