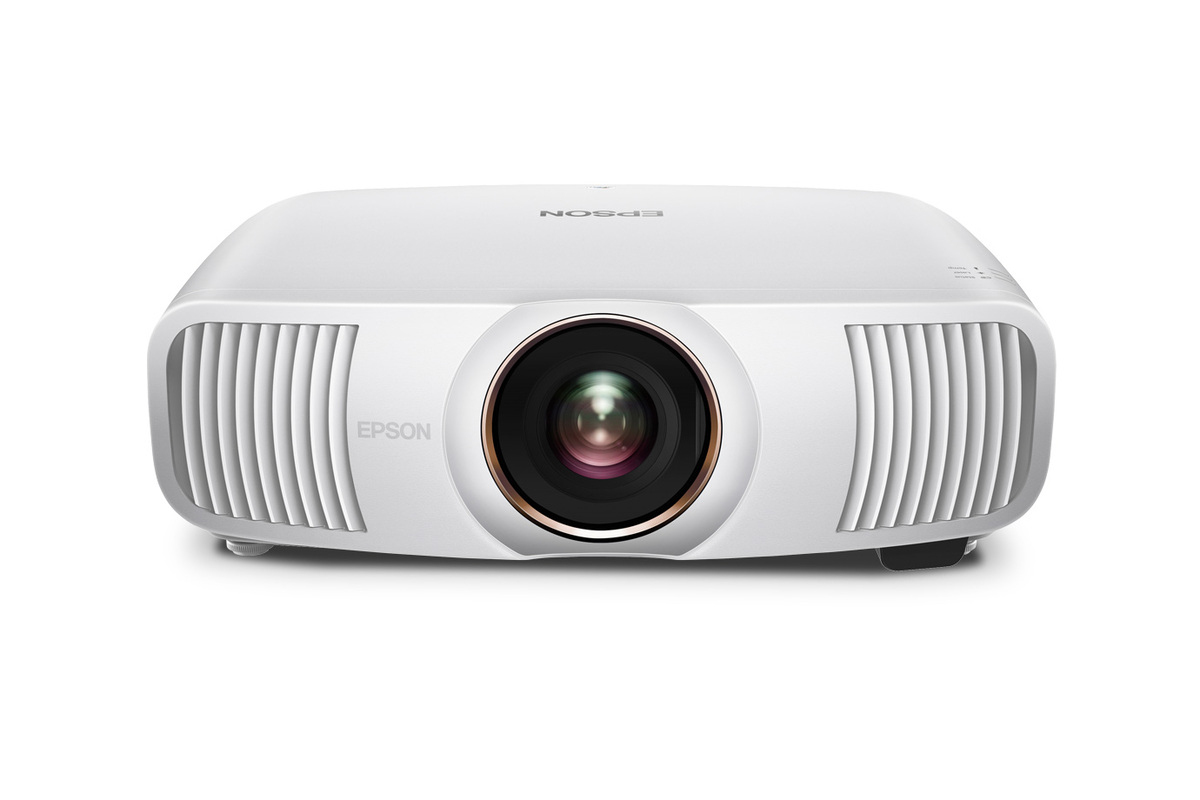

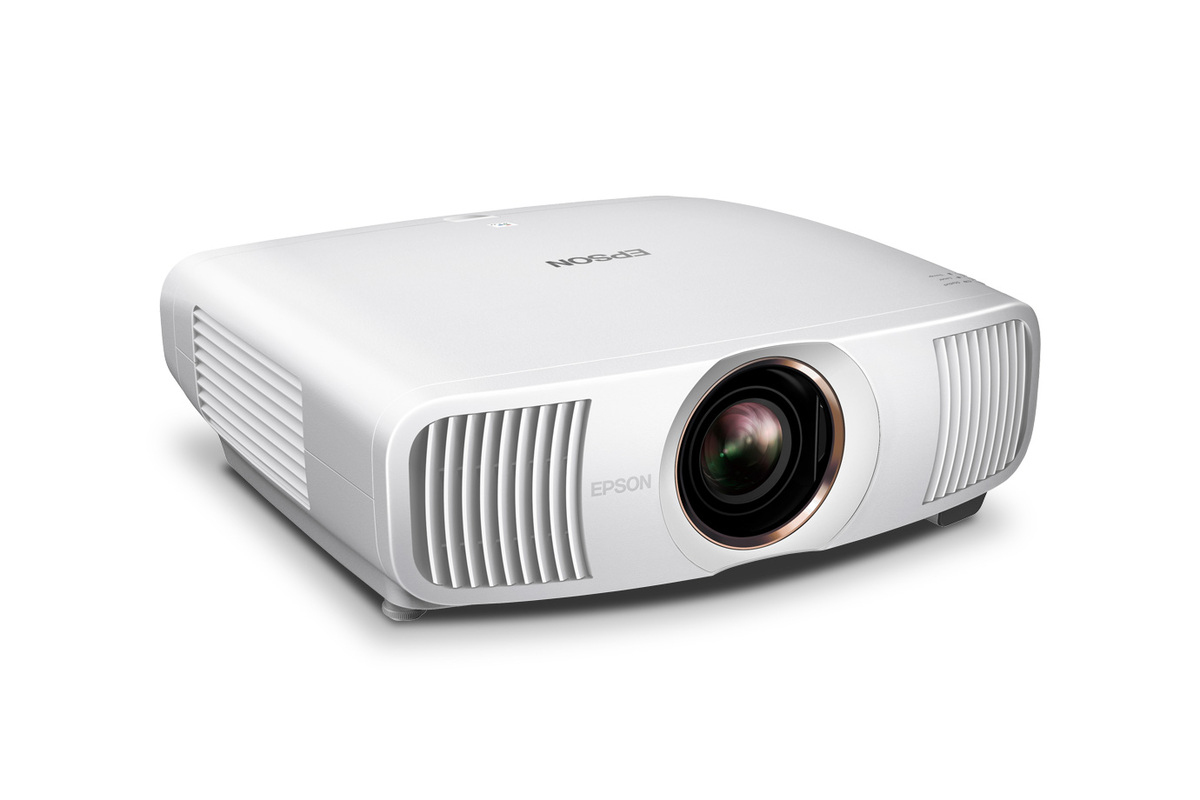

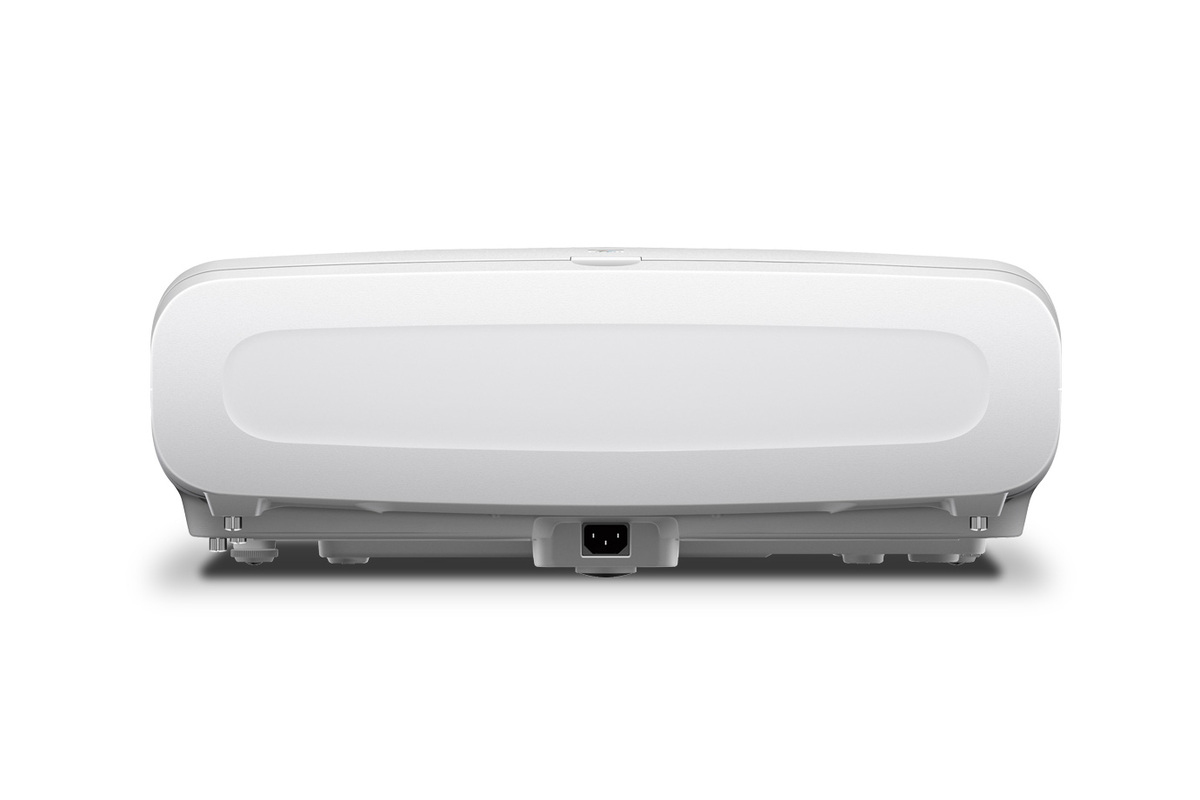

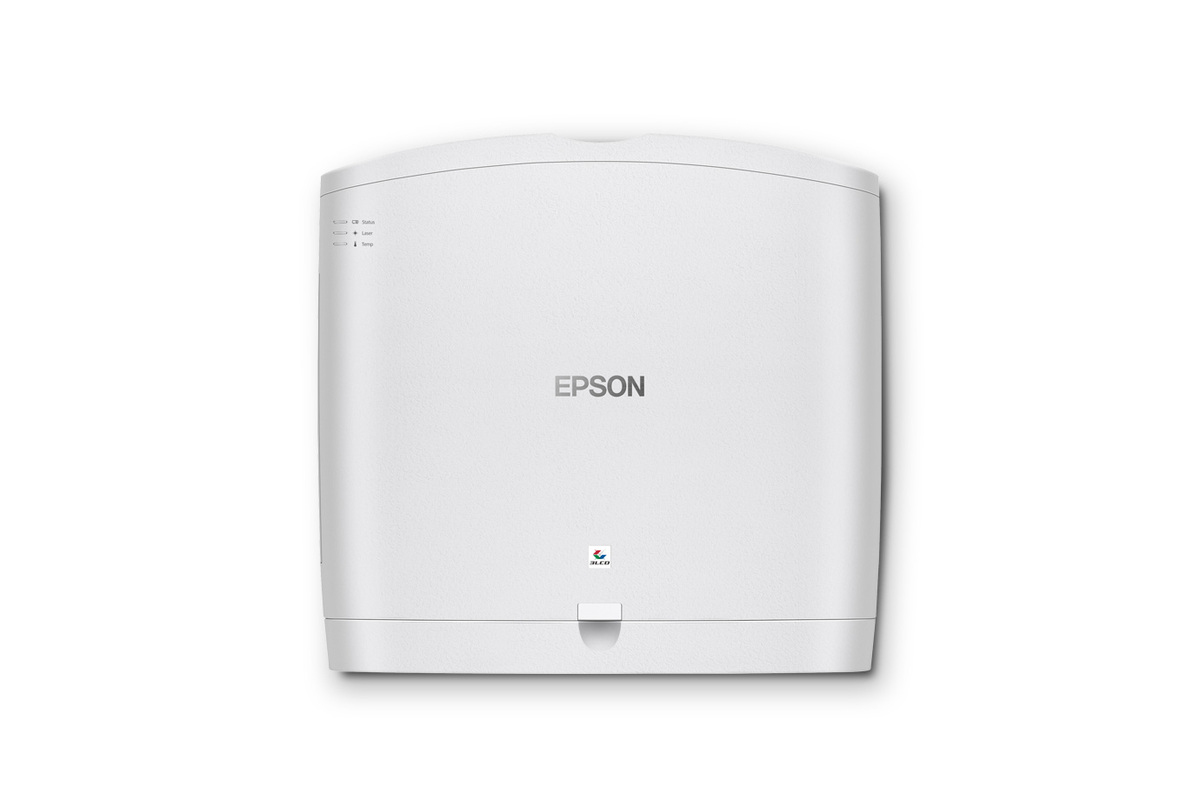

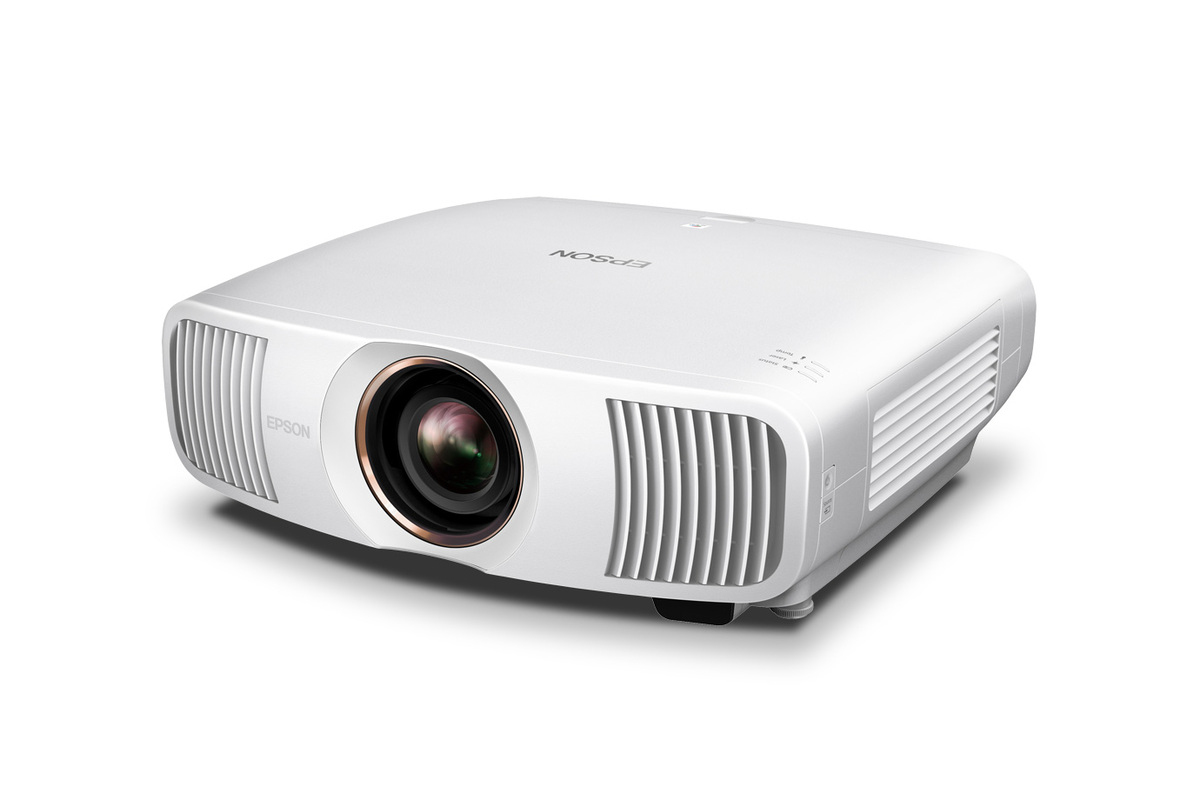

Pro Cinema QB1000 3LCD UHD 4K (3840x2160) White
Model QB1000Part no. V11HB23020
62 specifications
- Noise32 dB
- Weight12.8 kg
- ColourWhite
- Projection technology3LCD
- Light source typeLaser
- Focal length range22.5 – 46.7
Overview
- Noise
- 32 dB
- Weight
- 12.8 kg
- Colour
- White
- Projection technology
- 3LCD
- Light source type
- Laser
- Focal length range
- 22.5 – 46.7
- Brand
- Epson
- Category
- Data Projector
- Model
- QB1000
- Part numbers
- V11HB23020, V11HB23120
- Also known as
- Epson Pro Cinema QB1000 3LCD UHD 4K (3840x2160) White
Specifications
62 specifications in 14 groups
Projector
| Specification | Value |
|---|---|
| Projection technology | 3LCD |
| Projector brightness | 3300 ISO lumens |
| Projector native resolution | UHD 4K (3840x2160) |
| Contrast ratio (typical) | 5000000:1 |
| Native aspect ratio | 16:9 |
| Supported aspect ratios | 1.9:1, 3:2, 4:3, 5:4, 21:9 |
| Screen size compatibility | 1270 - 7620 mm (50 - 300") |
| Number of colours | 1.07 billion colours |
| Keystone correction, horizontal | -30 - 30° |
| Keystone correction, vertical | -30 - 30° |
| Matrix size | 1.88 cm (0.74") |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
Lens system
| Specification | Value |
|---|---|
| Focal length range | 22.5 – 46.7 |
| Aperture range (F-F) | 2 - 3 |
| Zoom capability | Yes |
| Zoom ratio | 2.1:1 |
| Throw ratio | 1.35 – 2.84 |
| Horizontal lens shift range | -47.1 - 47.1% |
| Vertical lens shift range | -96.3 - 96.3% |
Video
| Specification | Value |
|---|---|
| Analog signal format system | Not supported |
| Full HD | Yes |
| 3D | No |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080p, 2160p |
| Video colour modes | Cinema, Dynamic, Natural, Vivid |

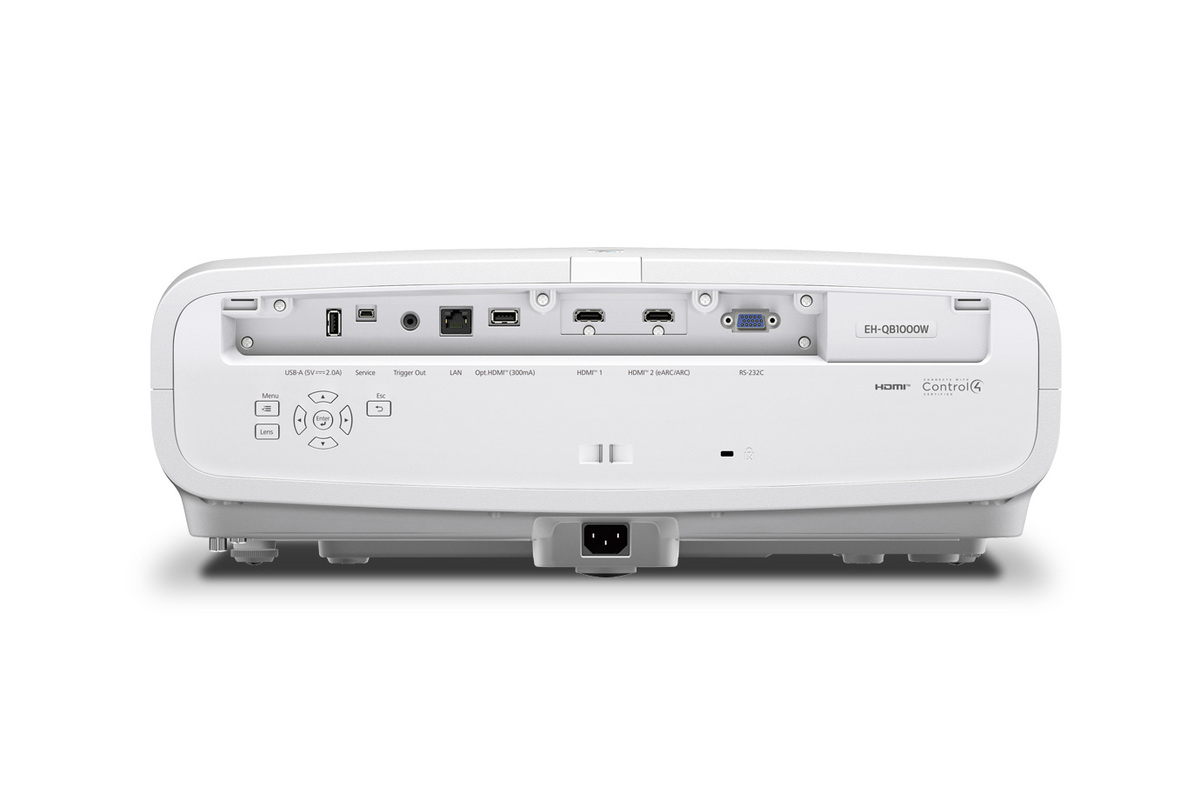

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 2 |
| HDMI version | 2.1 |
| DVI port | No |
| USB 2.0 ports quantity | 1 |
| Mini-USB 2.0 ports quantity | 1 |
| Serial interface type | RS-232C |
| AC (power) in | Yes |
| Audio Return Channel (ARC) | Yes |
| Enhanced Audio Return Channel (eARC) | Yes |
Network
| Specification | Value |
|---|---|
| Smart TV | No |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | No |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Interactive | No |
| Noise level | 32 dB |
| HDCP | Yes |
| Air filter | Yes |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10), Hybrid Log-Gamma (HLG) |
Design
| Specification | Value |
|---|---|
| Market positioning | Home cinema |
| Product colour | White |
| Cable lock slot type | Kensington |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 341 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 12.8 kg |
| Width | 520.7 mm |
| Depth | 447 mm |
| Height | 193 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | AC |
