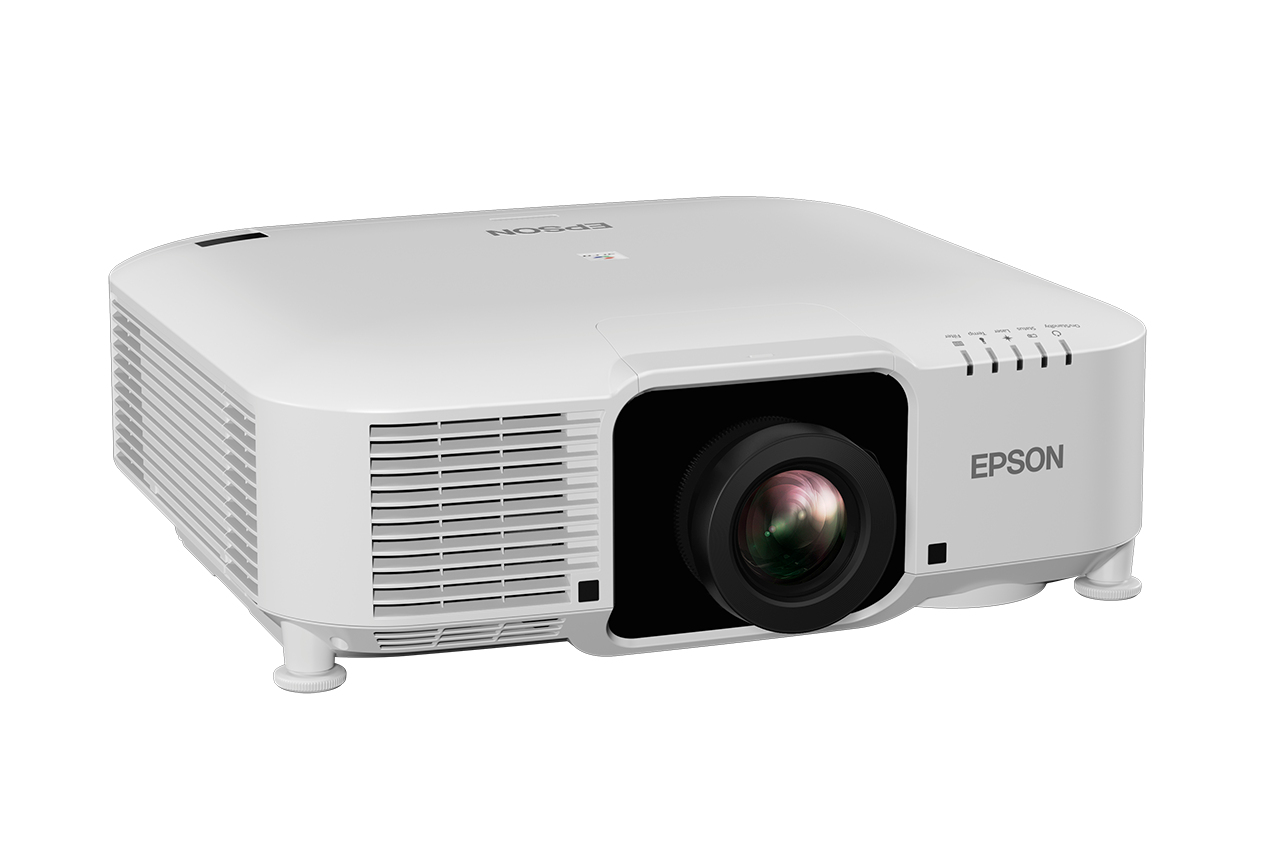

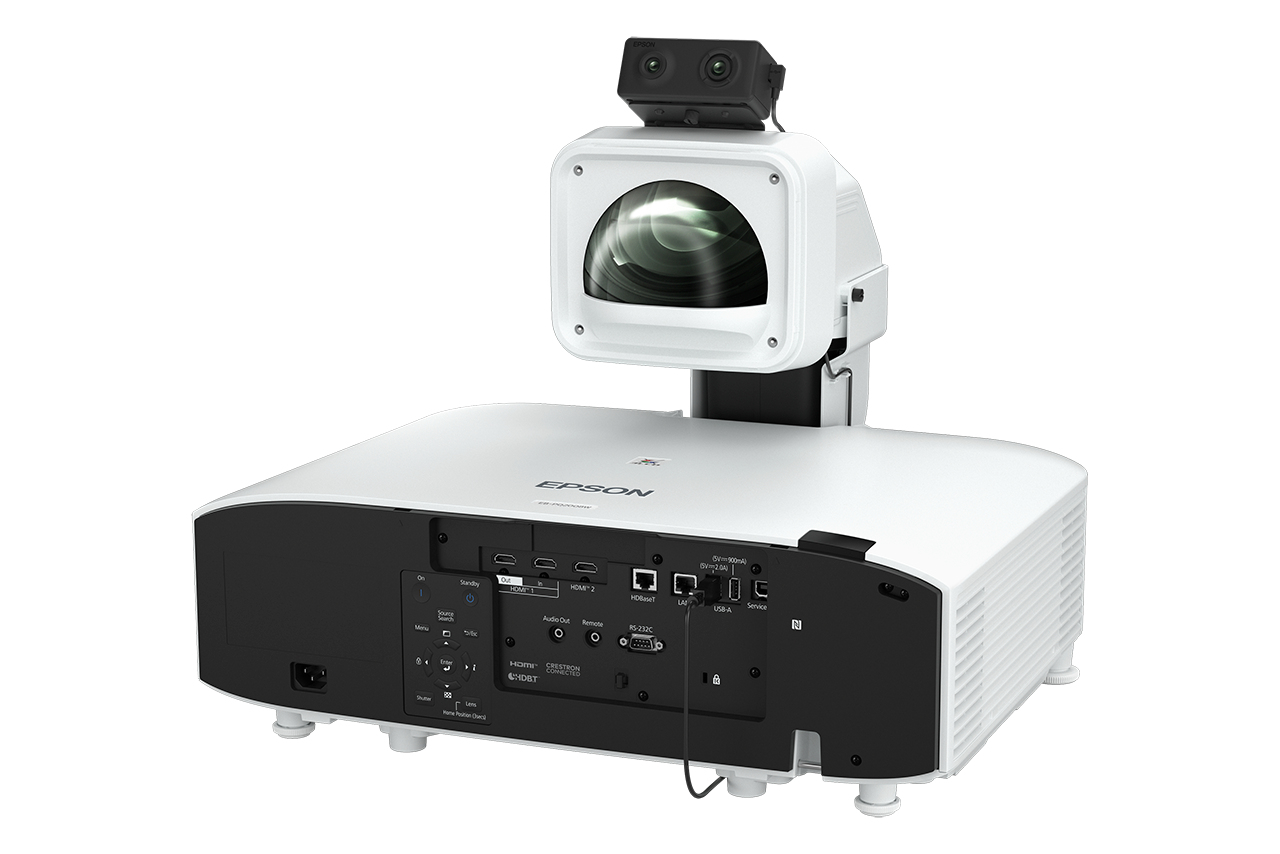

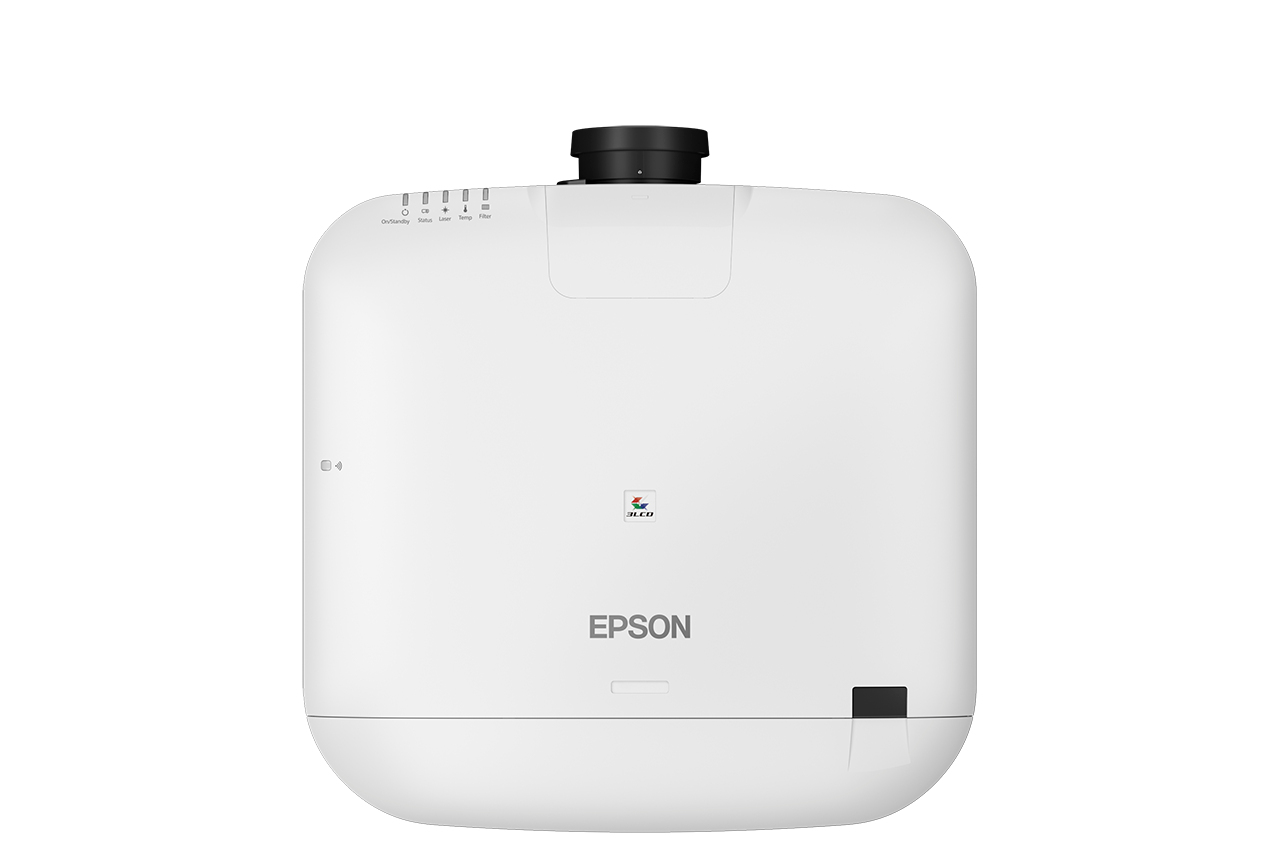

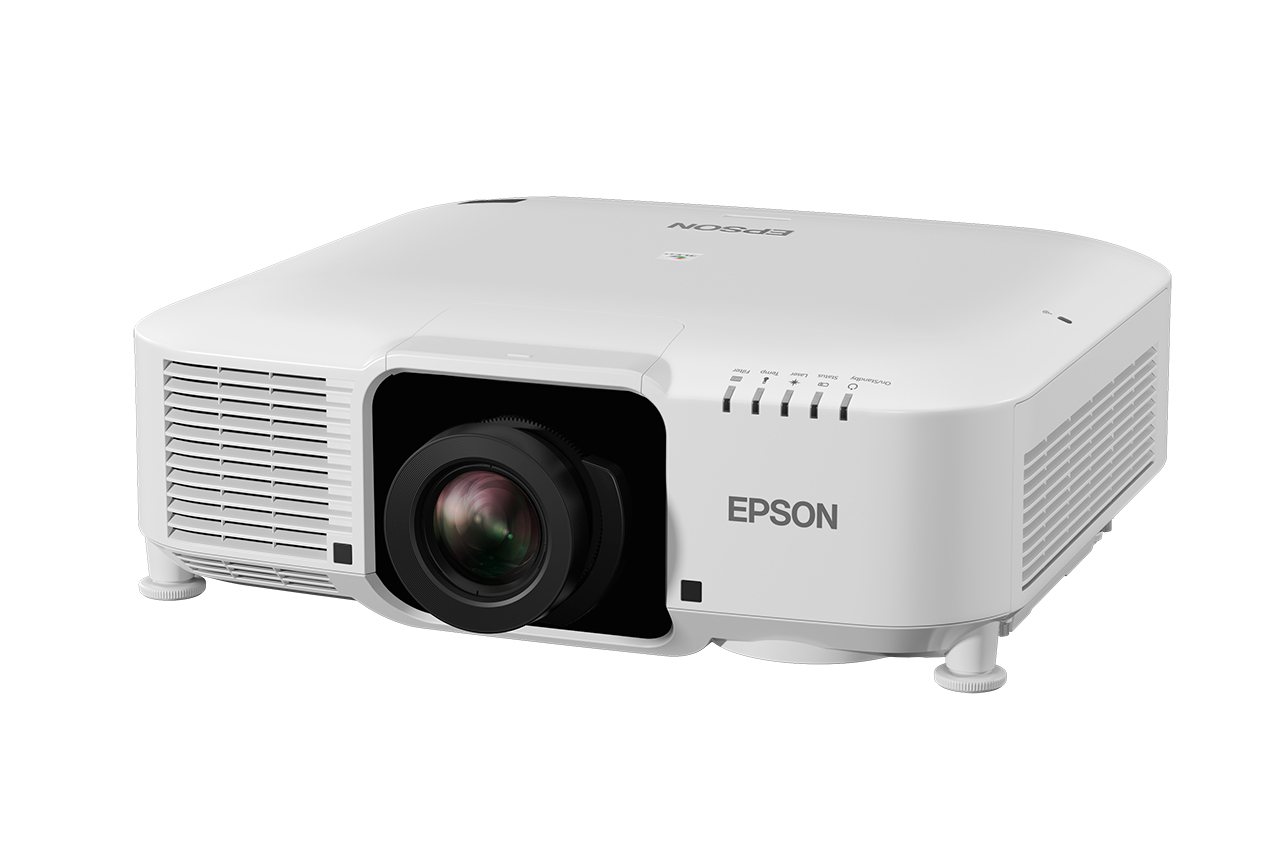

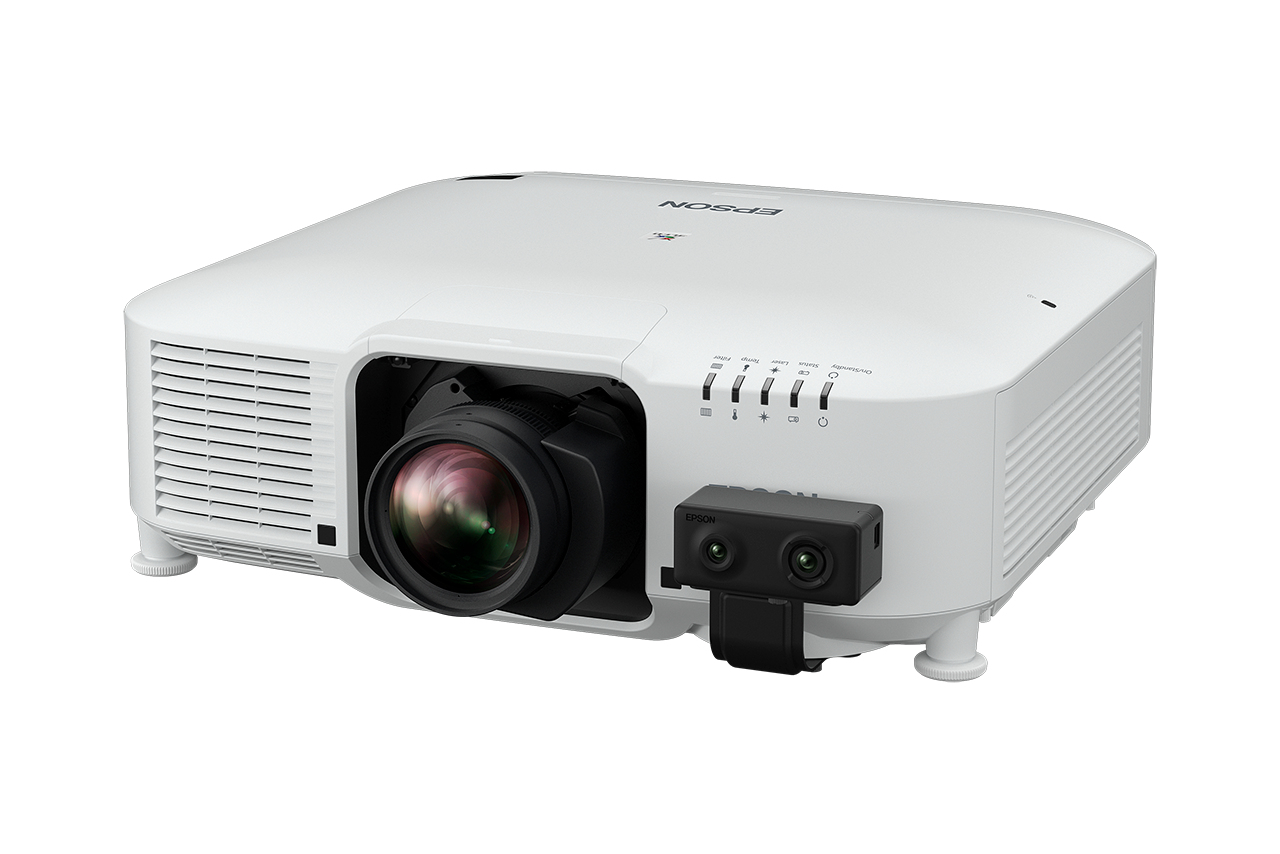

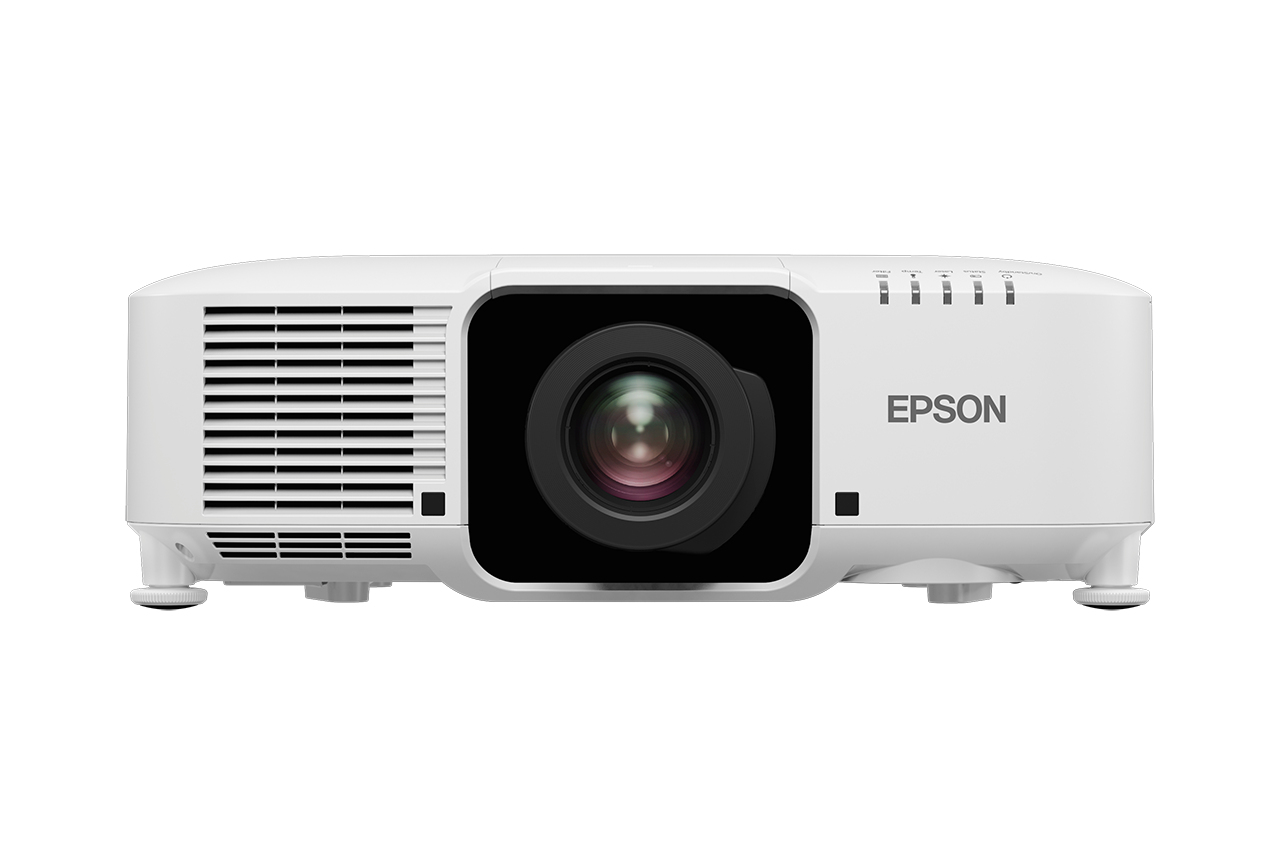

PROJECTOR Large venue projector 8000 ANSI lumens 3LCD UHD 4K (3840x2160) White
Model PROJECTORPart no. V11HB01920EAN 010343987159
69 specifications
- Noise35 dB
- TypeLarge venue projector
- Weight18.6 kg
- ColourWhite
- Projector brightness8000 ANSI lumens
- Light source typeLaser
Overview
- Noise
- 35 dB
- Type
- Large venue projector
- Weight
- 18.6 kg
- Colour
- White
- Projector brightness
- 8000 ANSI lumens
- Light source type
- Laser
- Brand
- Epson
- Category
- Data Projector
- Model
- PROJECTOR
- Part number
- V11HB01920
- EAN / UPC
- 010343987159
- Also known as
- Epson PROJECTOR Large venue projector 8000 ANSI lumens 3LCD UHD 4K (3840x2160) White
Specifications
69 specifications in 14 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 8000 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | UHD 4K (3840x2160) |
| Contrast ratio (typical) | 5000000:1 |
| Native aspect ratio | 16:9 |
| Supported aspect ratios | 4:3, 16:10 |
| Smart projector | No |
| Number of colours | 1.07 billion colours |
| Keystone correction, horizontal | -30 - 30° |
| Keystone correction, vertical | -45 - 45° |
| Matrix size | 2.64 cm (1.04") |
| Matrix type | 3-panel (p-Si TFT active) |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
| Service life of light source (economic mode) | 30000 h |
Lens system
| Specification | Value |
|---|---|
| Focus | No |
| Focal length range | 14.8 – 17 |
| Aperture range (F-F) | 2 - 2.1 |
| Zoom ratio | 1.6:1 |
| Throw ratio | 1.52 – 2.47 |
| Horizontal lens shift range | -18 - 18% |
| Vertical lens shift range | -60 - 60% |
Video
| Specification | Value |
|---|---|
| Analog signal format system | Not supported |
| Full HD | Yes |
| 3D | No |
| Supported video modes | 480p, 480i, 576i, 576p, 720p, 1080i, 1080p |
| Video colour modes | Cinema, Dynamic, Natural, Presentation |

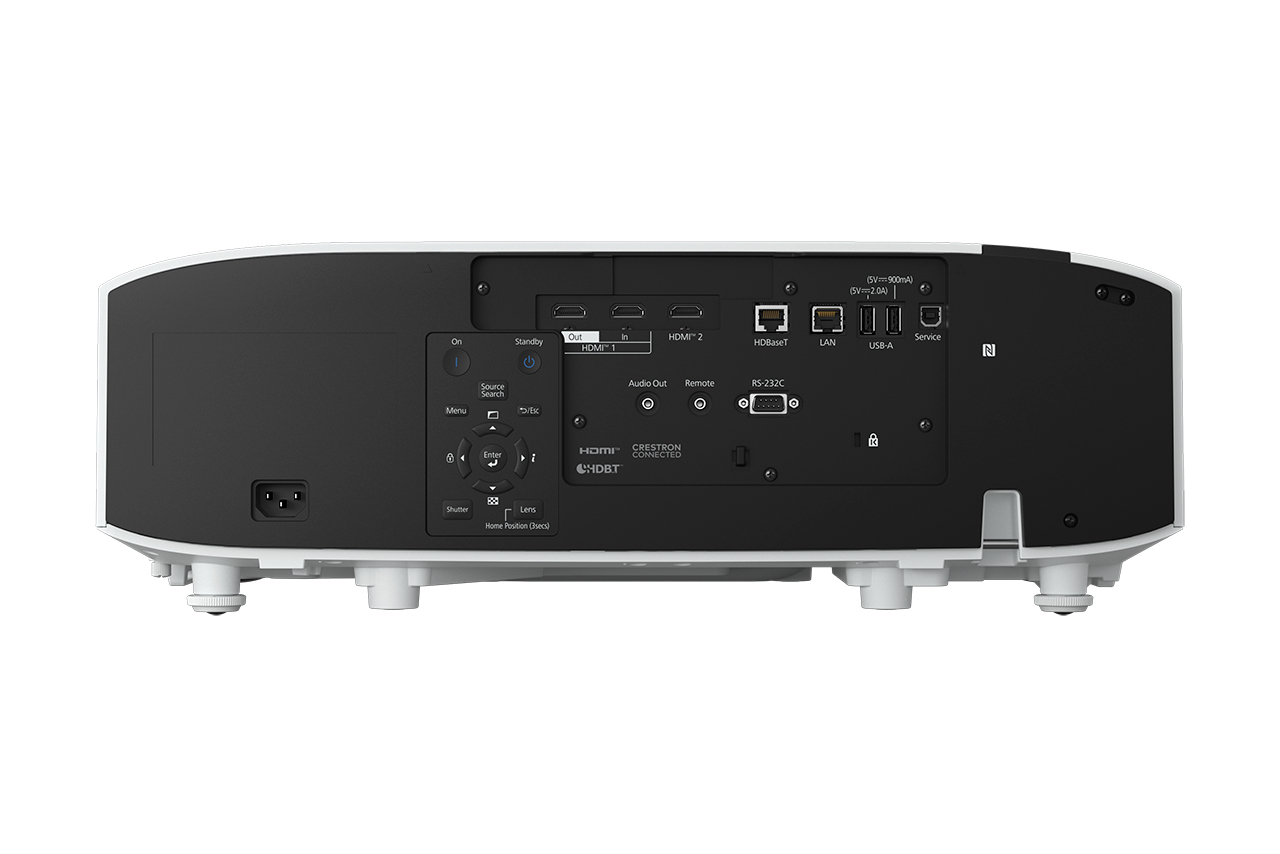

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 3 |
| DVI port | No |
| HDBaseT port | Yes |
| Service port type | USB Type-B |
| USB 2.0 Type-A ports quantity | 1 |
| USB 2.0 Type-B ports quantity | 1 |
| Serial interface type | RS-232C |
Network
| Specification | Value |
|---|---|
| Smart TV | No |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Wi-Fi | No |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Interactive | No |
| Noise level | 35 dB |
| Noise level (economic mode) | 29 dB |
| HDCP | Yes |
| On Screen Display (OSD) | Yes |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10), Hybrid Log-Gamma (HLG) |
Design
| Specification | Value |
|---|---|
| Product type | Large venue projector |
| Market positioning | Presentation |
| Product colour | White |
| Placement | Ceiling, Desktop, Floor |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
| Colour depth | 10 bit |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 522 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 18.6 kg |
| Width | 545 mm |
| Depth | 436 mm |
| Height | 189 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
