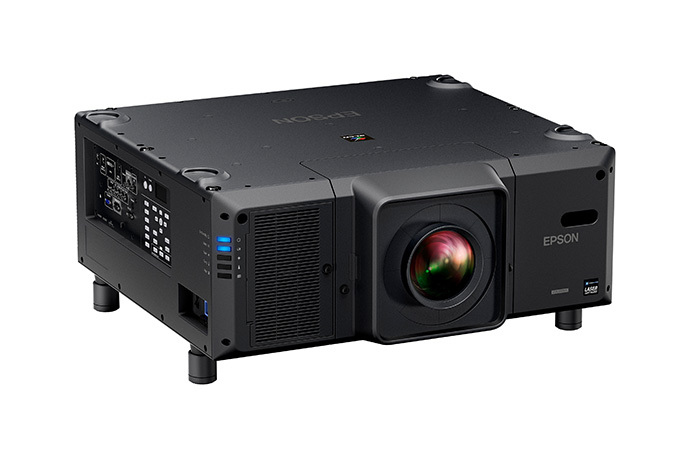

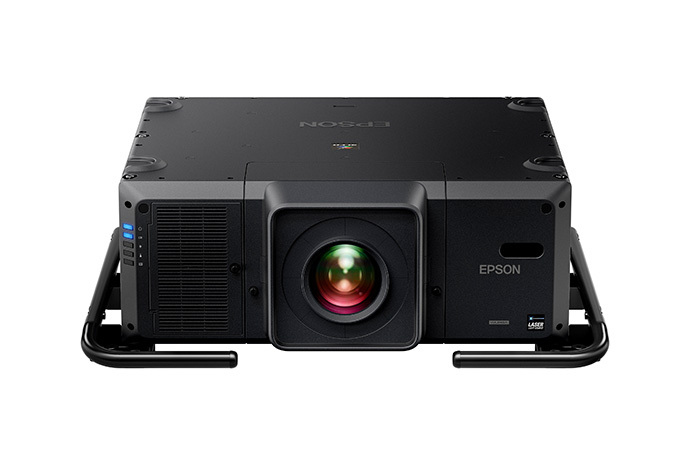

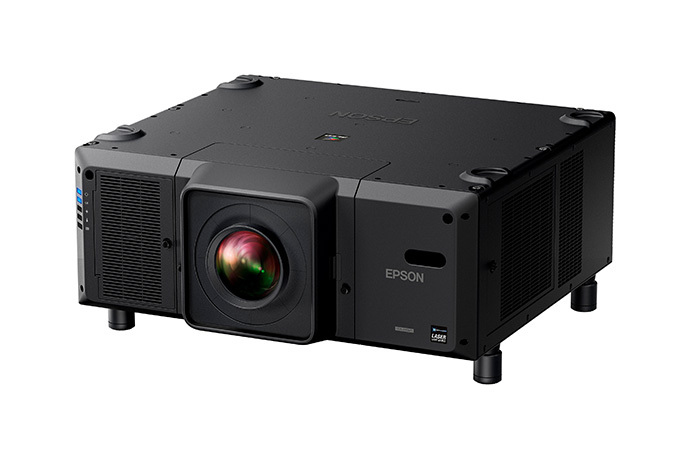

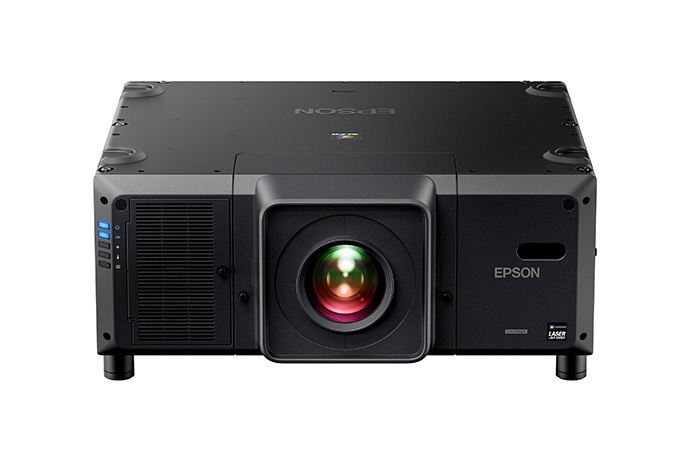

Pro L30000UNL
Model Pro L30000UNLPart no. V11H944820EAN 010343955578
59 specifications
- Noise49 dB
- TypeLarge venue projector
- Weight63.8 kg
- ColourBlack
- Projector brightness30000 ANSI lumens
- Light source typeLaser
Overview
- Noise
- 49 dB
- Type
- Large venue projector
- Weight
- 63.8 kg
- Colour
- Black
- Projector brightness
- 30000 ANSI lumens
- Light source type
- Laser
- Brand
- Epson
- Category
- Data Projector
- Model
- Pro L30000UNL
- Part number
- V11H944820
- EAN / UPC
- 010343955578
- Also known as
- Epson Pro L30000UNL Large venue projector 30000 ANSI lumens 3LCD WUXGA (1920x1200) Black
Specifications
59 specifications in 12 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 30000 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | WUXGA (1920x1200) |
| Contrast ratio (typical) | 2000001:1 |
| Supported aspect ratios | 4:3, 16:10, 16:9 |
| Screen size compatibility | 2540 - 25400 mm (100 - 1000") |
| Contrast ratio (dynamic) | 2000001:1 |
| Number of colours | 1.07 billion colours |
| Uniformity | 90% |
| Colour light output | 30000 ANSI lumens |
| Keystone correction, horizontal | 30° |
| Keystone correction, vertical | 45° |
| Matrix type | 3-panel (p-Si TFT active) |
| White light output | 30000 ANSI lumens |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
| Service life of light source (economic mode) | 30000 h |
Lens system
| Specification | Value |
|---|---|
| Focal length range | 54.7 - 73 mm |
| Aperture range (F-F) | 1.9 - 2.1 |
| Zoom ratio | 1.35:1 |
| Throw ratio | 1.74 - 2.35 |
Video
| Specification | Value |
|---|---|
| Full HD | Yes |
| Supported graphics resolutions | 1920 x 1200 (WUXGA) |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |

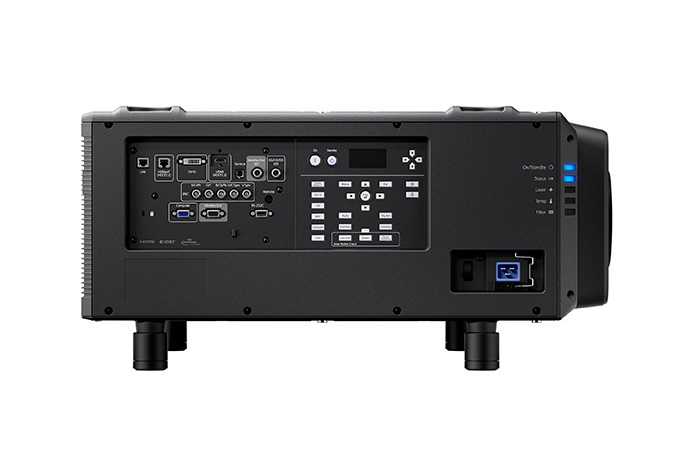

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.2 |
| DVI port | Yes |
| HDBaseT port | Yes |
| USB 2.0 ports quantity | 2 |
| USB 2.0 Type-A ports quantity | 1 |
| USB 2.0 Type-B ports quantity | 1 |
| Serial interface type | RS-232C |
| BNC input ports | 5 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
Features
| Specification | Value |
|---|---|
| Noise level | 49 dB |
| Noise level (economic mode) | 41 dB |
| Projection modes | Ceiling, Front, Rear |
Design
| Specification | Value |
|---|---|
| Product type | Large venue projector |
| Product colour | Black |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 2325 W |
| Power consumption (standby) | 2.5 W |
| Power consumption (PowerSave) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 63.8 kg |
| Width | 790 mm |
| Depth | 290 mm |
| Height | 710 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | AC, HDMI |
| Manual | Yes |
| Mounting brackets included | Yes |
