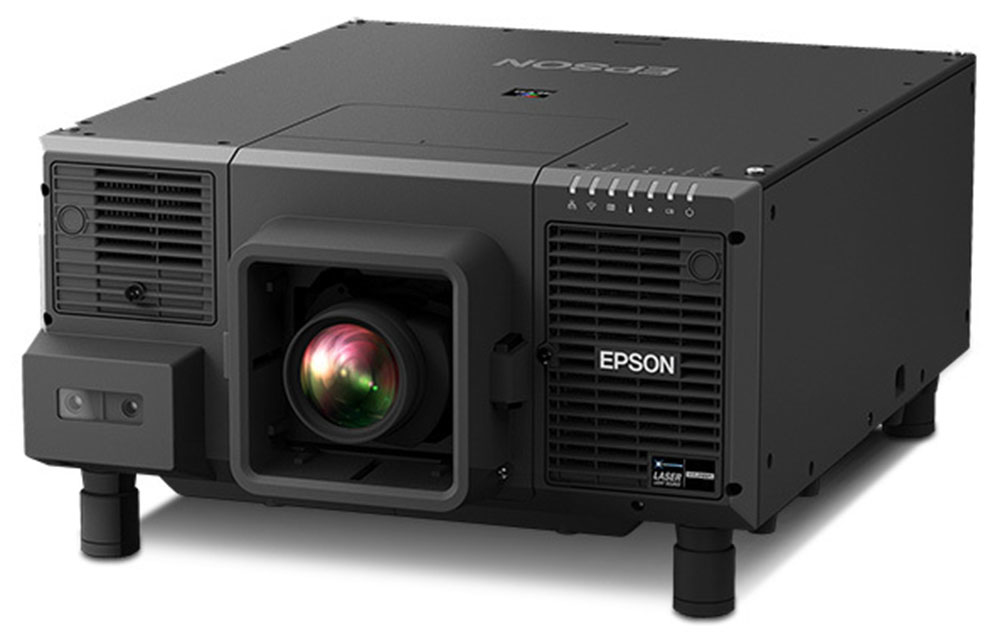

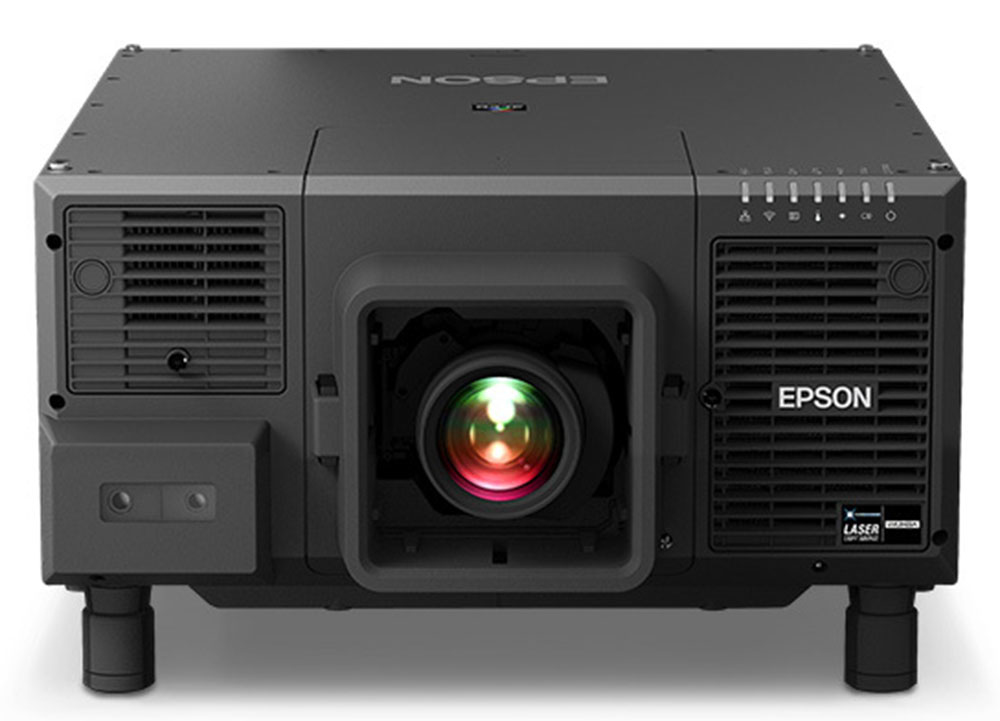

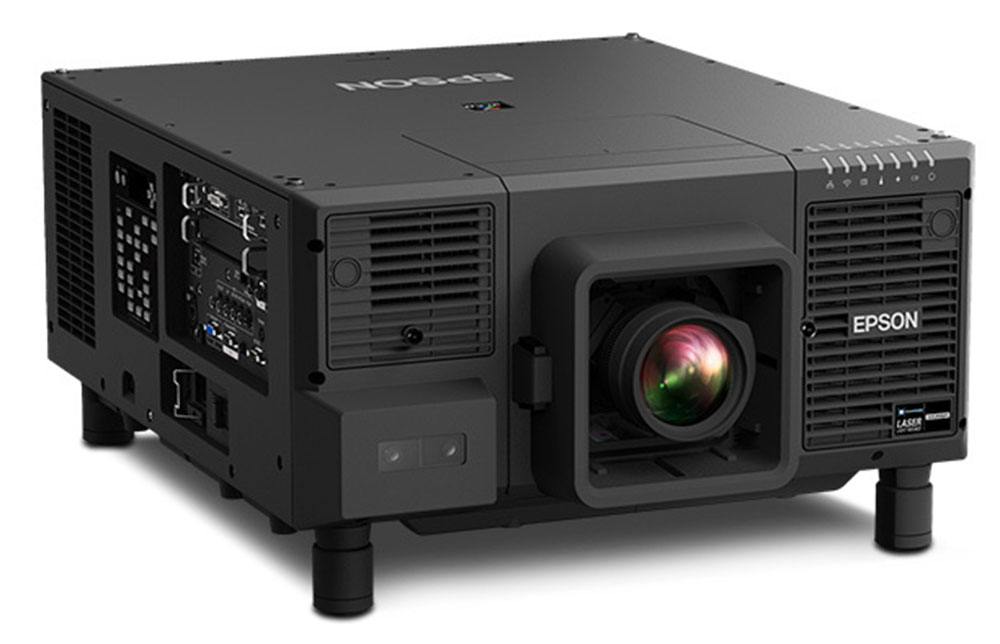

PRO-L20000UNL Large venue projector 20000 ANSI lumens 3LCD WUXGA (1920x1200) Black
Model PRO-L20000UNLPart no. V11H833820EAN 010343945326
75 specifications
- Noise45 dB
- TypeLarge venue projector
- Weight49.6 kg
- ColourBlack
- Projector brightness20000 ANSI lumens
- Light source typeLaser
Overview
- Noise
- 45 dB
- Type
- Large venue projector
- Weight
- 49.6 kg
- Colour
- Black
- Projector brightness
- 20000 ANSI lumens
- Light source type
- Laser
- Brand
- Epson
- Category
- Data Projector
- Model
- PRO-L20000UNL
- Part number
- V11H833820
- EAN / UPC
- 010343945326
- Also known as
- Epson PRO-L20000UNL Large venue projector 20000 ANSI lumens 3LCD WUXGA (1920x1200) Black
Specifications
75 specifications in 16 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 20000 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | WUXGA (1920x1200) |
| Contrast ratio (typical) | 2500000:1 |
| Native aspect ratio | 16:10 |
| Supported aspect ratios | 4:3, 16:9 |
| Smart projector | No |
| Number of colours | 1.07 billion colours |
| Uniformity | 90% |
| Colour light output | 20000 ANSI lumens |
| White light output | 20000 ANSI lumens |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
| Service life of light source (economic mode) | 30000 h |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Focal length range | 36.0 – 57.4 |
| Aperture range (F-F) | 1.8 - 2.35 |
| Zoom capability | Yes |
| Zoom type | Auto |
| Zoom ratio | 1.6:1 |
| Throw ratio | 1.57 – 2.56 |
| Horizontal lens shift range | -18 - 18% |
| Vertical lens shift range | -60 - 60% |
Video
| Specification | Value |
|---|---|
| Full HD | Yes |
| 3D | No |
| Video colour modes | BT.709 |
Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 2 |
| HDMI ports quantity | 1 |
| Component video (YPbPr/YCbCr) in | 0 |
| Composite video in | 0 |
| DVI port | Yes |
| DisplayPorts quantity | 2 |
| HDBaseT port | Yes |
| USB 2.0 ports quantity | 2 |
| USB 2.0 Type-A ports quantity | 1 |
| USB 2.0 Type-B ports quantity | 1 |
| Audio (L/R) in | 0 |
| Serial interface type | RS-232C |
| BNC input ports | 1 |
Network
| Specification | Value |
|---|---|
| Smart TV | No |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | No |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Interactive | No |
| Noise level | 45 dB |
| HDCP | Yes |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10), Hybrid Log-Gamma (HLG) |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
Design
| Specification | Value |
|---|---|
| Product type | Large venue projector |
| Market positioning | Presentation |
| Product colour | Black |
| Placement | Ceiling, Desktop |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 1860 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (economy mode) | 1123 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 49.6 kg |
| Width | 620 mm |
| Depth | 790 mm |
| Height | 358.5 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | AC |
| Manual | Yes |
| Quick start guide | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Sustainability compliance | Yes |
