Pro L1070
Model Pro L1070Part no. V11H957920EAN 010343949911
54 specifications
- Noise34 dB
- Weight15.6 kg
- ColourWhite
- Projector brightness7000 ANSI lumens
- Light source typeLaser
- FocusAuto
Overview
- Noise
- 34 dB
- Weight
- 15.6 kg
- Colour
- White
- Projector brightness
- 7000 ANSI lumens
- Light source type
- Laser
- Focus
- Auto
- Brand
- Epson
- Category
- Data Projector
- Model
- Pro L1070
- Part number
- V11H957920
- EAN / UPC
- 010343949911
- Also known as
- Epson Pro L1070 Ceiling / Floor mounted projector 7000 ANSI lumens 3LCD WXGA (1280x800) White
Specifications
54 specifications in 14 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 7000 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | WXGA (1280x800) |
| Contrast ratio (typical) | 2500000:1 |
| Native aspect ratio | 16:10 |
| Supported aspect ratios | 4:3, 16:10, 16:9 |
| Number of colours | 1.073 billion colours |
| Uniformity | 85% |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
Lens system
| Specification | Value |
|---|---|
| Focus | Auto |
| Focal length range | 24 - 38 mm |
| Zoom capability | Yes |
| Zoom type | Auto |
| Horizontal lens shift range | -30 - 30% |
| Vertical lens shift range | -67 - 67% |

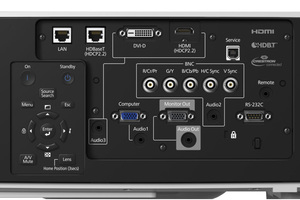

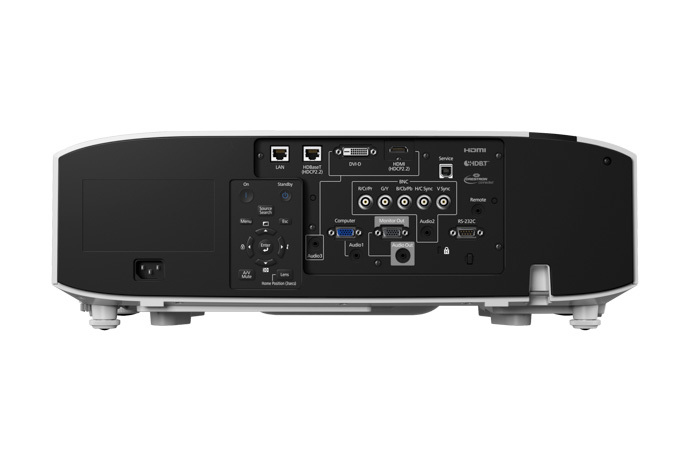

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI connector type | Full-size |
| HDMI version | 2.2 |
| DVI port | Yes |
| HDBaseT port | Yes |
| USB 2.0 ports quantity | 2 |
| USB 2.0 Type-B ports quantity | 1 |
| Serial interface type | RS-232C |
| PC Audio in | Yes |
| PC in (D-Sub) | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
Features
| Specification | Value |
|---|---|
| Noise level | 34 dB |
| HDCP | Yes |
| Projection modes | Ceiling, Front, Rear |
Design
| Specification | Value |
|---|---|
| Product type | Ceiling / Floor mounted projector |
| Market positioning | Business |
| Product colour | White |
| Placement | Ceiling, Floor |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 361 W |
| Power consumption (standby) | 2 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Supplier features
| Specification | Value |
|---|---|
| Number of pieces | 1 pc(s) |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 15.6 kg |
| Width | 545 mm |
| Depth | 189 mm |
| Height | 484 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | AC |
| Manual | Yes |
| Packaging content | Pro L1070WNL projector power cable cable cover projector remote control with batteries Quick Setup Sheet |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
