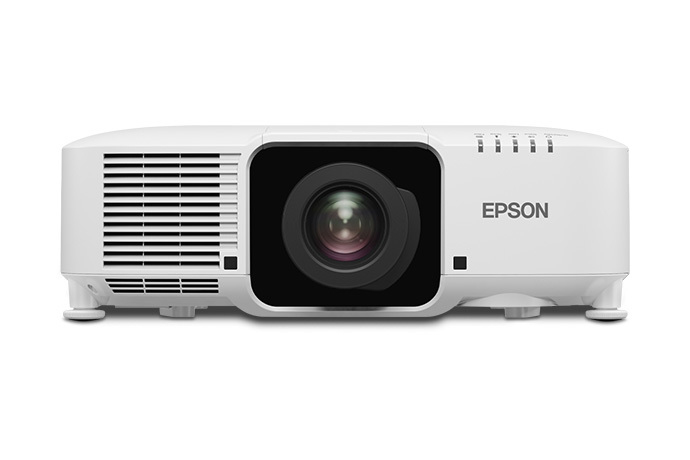

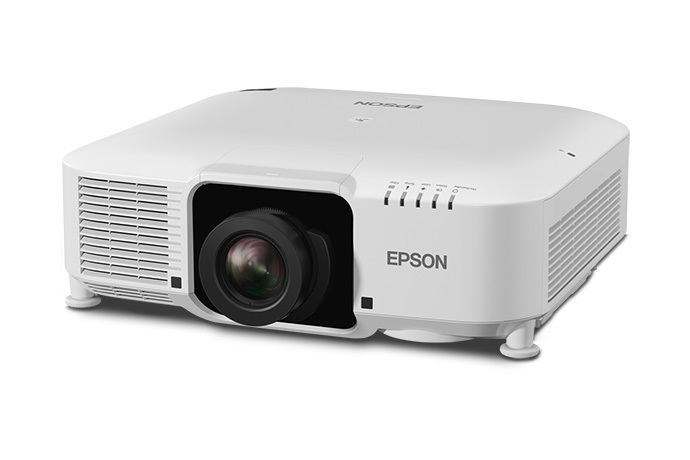

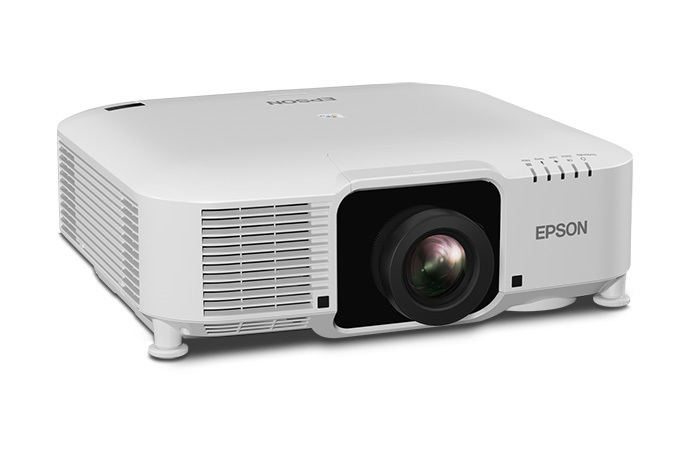

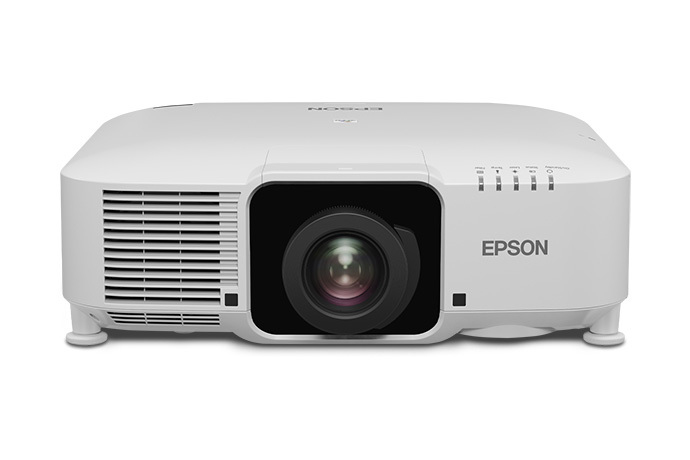

Pro L1060UNL
Model Pro L1060UNLPart no. V11H941920EAN 010343949874
52 specifications
- Noise34 dB
- Weight15.6 kg
- ColourGrey
- Projector brightness6000 ANSI lumens
- Light source typeLaser
- Focal length range24 - 38.2 mm
Overview
- Noise
- 34 dB
- Weight
- 15.6 kg
- Colour
- Grey
- Projector brightness
- 6000 ANSI lumens
- Light source type
- Laser
- Focal length range
- 24 - 38.2 mm
- Brand
- Epson
- Category
- Data Projector
- Model
- Pro L1060UNL
- Part number
- V11H941920
- EAN / UPC
- 010343949874
- Also known as
- Epson Pro Cinema Pro L1060UNL 6000 ANSI lumens 3LCD WUXGA (1920x1200) Grey
Specifications
52 specifications in 12 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 6000 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | WUXGA (1920x1200) |
| Contrast ratio (typical) | 2500000:1 |
| Supported aspect ratios | 4:3, 16:10, 16:9 |
| Number of colours | 1.07 billion colours |
| Uniformity | 85% |
| Colour light output | 6000 ANSI lumens |
| Keystone correction, horizontal | - 30 - 30° |
| Keystone correction, vertical | - 45 - 45° |
| White light output | 6000 ANSI lumens |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
Lens system
| Specification | Value |
|---|---|
| Focal length range | 24 - 38.2 mm |
| Zoom capability | Yes |
| Zoom ratio | 1.6:1 |
| Throw ratio | 1.44 - 2.33 |
| Horizontal lens shift range | 30 - 30% |
| Vertical lens shift range | 67 - 67% |
Video
| Specification | Value |
|---|---|
| Full HD | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI port | Yes |
| HDBaseT port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Audio (L/R) in | 1 |
| Serial interface type | RS-232C |
| PC in (D-Sub) | Yes |
| BNC input ports | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
Features
| Specification | Value |
|---|---|
| Noise level | 34 dB |
| Noise level (economic mode) | 30 dB |
Design
| Specification | Value |
|---|---|
| Market positioning | Portable |
| Product colour | Grey |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 361 W |
| Power consumption (standby) | 2 W |
| Power consumption (PowerSave) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 15.6 kg |
| Width | 545 mm |
| Depth | 189 mm |
| Height | 484 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | AC |
| Manual | Yes |
