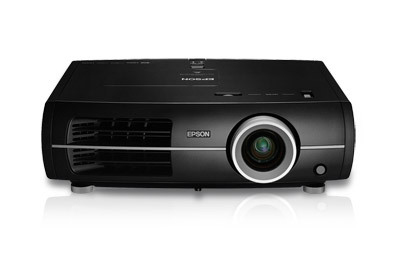

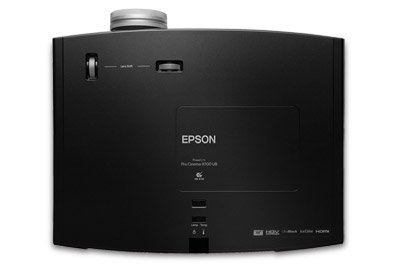

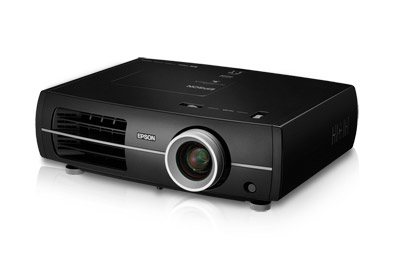

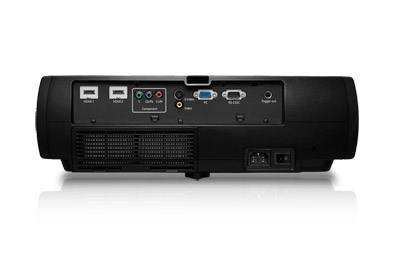

Epson PowerLite Pro Cinema 9700UB

Epson PowerLite Pro Cinema 9700UB

Model PowerLite Pro Cinema 9700UBPart no. V11H420320MB

67 specifications
  • ConnectivityWired
  • Noise28 dB
  • Weight7.3 kg
  • ColourBlack
  • Projector brightness1600 ANSI lumens
  • Light source typeLamp
See all specifications

Overview

Connectivity
Wired
Noise
28 dB
Weight
7.3 kg
Colour
Black
Projector brightness
1600 ANSI lumens
Light source type
Lamp
Brand
Epson
Model
PowerLite Pro Cinema 9700UB
Part number
V11H420320MB
Also known as
Epson PowerLite Pro Cinema 9700UB 1600 ANSI lumens LCD 1080p (1920x1080) Black

Specifications

67 specifications in 16 groups

Projector

Projector brightness1600 ANSI lumens
Projection technologyLCD
Projector native resolution1080p (1920x1080)
Screen size compatibility100
Projection distance2.9 - 6.37 m
Matrix type3-panel (p-Si TFT active)

Light source

Light source typeLamp
Service life of light source4000 h
Lamp typeUHE
Lamp power200 W
Lamps quantity1 lamp(s)

Lens system

FocusManual
Focal length range22.5 - 47.2 mm
F-number (relative aperture)2
Zoom capabilityYes
Zoom typeManual

Video

Analog signal format systemNTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM
Full HDYes
HD-ReadyYes
3DNo
3D ReadyNo
Supported graphics resolutions720 x 480, 720 x 576, 832 x 624, 1152 x 870, 1280 x 960, 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1360 x 768 (WXGA), 1920 x 1080 (HD 1080), 640 x 480 (VGA), 800 x 600 (SVGA)
Supported video modes1080i, 1080p, 480i, 480p, 576i, 576p, 720p

Ports & interfaces

VGA (D-Sub) ports quantity1
HDMI ports quantity2
Component video (YPbPr/YCbCr) in1
Composite video in1
DVI portNo
S-Video inputs quantity1
USB 2.0 ports quantity0
Audio (L/R) in0
Serial interface typeRS-232
AC (power) inYes

Network

Ethernet LANNo
Ethernet LAN (RJ-45) ports0
Wi-FiNo
BluetoothNo

Storage

Card reader integratedNo

Features

Noise level28 dB
Noise level (economic mode)22 dB
Preset modesCinema, Vivid photo

Multimedia

Built-in speaker(s)No
TV tuner integratedNo

Design

Market positioningHome cinema
Product colourBlack
PlacementCeiling

Power

Power consumption (typical)297 W
Power consumption (standby)0.4 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Operational conditions

Operating temperature (T-T)5 - 35 °C
Storage temperature (T-T)-10 - 60 °C
Operating relative humidity (H-H)20 - 80%
Storage relative humidity (H-H)10 - 90%
Operating altitude0 - 2286 m

Certificates

SafetyFCC, UL, ICES, CSA

Weight & dimensions

Weight7.3 kg
Width449.5 mm
Depth393.7 mm
Height144.7 mm

Packaging content

Remote control includedYes
Batteries includedYes

Other features

Aspect ratio2.35:1
Connectivity technologyWired
Dimensions (WxDxH)449.5 x 393.7 x 144.7 mm
Power supply1 W
RS-232 ports1
