Epson PowerLite 580

Epson PowerLite 580

Model PowerLite 580Part no. V11H604020EAN 010343910720

69 specifications
  • Noise35 dB
  • TypeUltra short throw projector
  • Weight5.31 kg
  • ColourWhite
  • Projector brightness3200 ANSI lumens
  • Light source typeLamp
See all specifications

Overview

Noise
35 dB
Type
Ultra short throw projector
Weight
5.31 kg
Colour
White
Projector brightness
3200 ANSI lumens
Light source type
Lamp
Brand
Epson
Model
PowerLite 580
Part number
V11H604020
EAN / UPC
010343910720, 012302436111, 103439107200
Also known as
Epson PowerLite 580 Ultra short throw projector 3200 ANSI lumens 3LCD XGA (1024x768) White

Specifications

69 specifications in 15 groups

Projector

Projector brightness3200 ANSI lumens
Projection technology3LCD
Projector native resolutionXGA (1024x768)
Contrast ratio (typical)10000:1
Native aspect ratio4:3
Supported aspect ratios4:3
Screen size compatibility304.8 - 2540 mm (12 - 100")
Projection distance0.348 - 0.597 m
Number of colours1.073 billion colours
Colour light output3200 ANSI lumens
Keystone correction, horizontal3°
Keystone correction, vertical3°
Matrix type3-panel (p-Si TFT active)
White light output3200 ANSI lumens

Light source

Light source typeLamp
Service life of light source4000 h
Service life of light source (economic mode)6000 h
Lamp typeUHE
Lamp power245 W

Lens system

FocusManual
Digital zoom1.35x

Video

Analog signal format systemNTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM
Full HDNo
Supported graphics resolutions1280 x 960, 1600 x 900, 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1360 x 768 (WXGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 800 x 600 (SVGA)

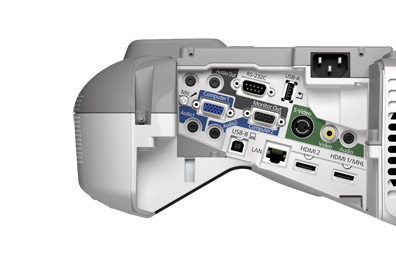

Ports & interfaces

VGA (D-Sub) ports quantity2
HDMI ports quantity2
Composite video in1
DisplayPorts quantity1
S-Video inputs quantity1
USB 2.0 ports quantity2
Audio (L/R) in3
Audio (L/R) out1
Microphone inYes
Serial interface typeRS-232
PC in (D-Sub)Yes
USB connector typeUSB Type-A, USB Type-B

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Wi-Fi standards802.11b, 802.11g, Wi-Fi 4 (802.11n)

Features

Noise level35 dB
Noise level (economic mode)28 dB

Multimedia

Built-in speaker(s)Yes
Number of built-in speakers1
RMS rated power16 W

Design

Product typeUltra short throw projector
Market positioningPortable
Product colourWhite
Cable lock slotYes
Cable lock slot typeKensington
LED indicatorsStatus

Display

Built-in displayNo

Power

Power sourceAC
Power consumption (typical)376 W
Power consumption (standby)4.3 W
Power consumption (PowerSave)280 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Operational conditions

Operating temperature (T-T)5 - 35 °C

Weight & dimensions

Weight5.31 kg
Width336 mm
Depth376 mm
Height155 mm

Packaging content

Remote control includedYes
Batteries includedYes
Cables includedAC, VGA
ManualYes
Mounting brackets includedYes
Quick start guideYes

Other features

RS-232 ports1
