PowerLite L635SU Projector module 6000 ANSI lumens LCOS WUXGA (1920x1200)
Model L635SUPart no. V11HA29120EAN 010343964723
60 specifications
- Noise38 dB
- TypeProjector module
- Weight8.39 kg
- Projector brightness6000 ANSI lumens
- Light source typeLaser/LED hybrid
- FocusManual
Overview
- Noise
- 38 dB
- Type
- Projector module
- Weight
- 8.39 kg
- Projector brightness
- 6000 ANSI lumens
- Light source type
- Laser/LED hybrid
- Focus
- Manual
- Brand
- Epson
- Category
- Data Projector
- Model
- L635SU
- Part number
- V11HA29120
- EAN / UPC
- 010343964723
- Also known as
- Epson PowerLite L635SU Projector module 6000 ANSI lumens LCOS WUXGA (1920x1200)
Specifications
60 specifications in 14 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 6000 ANSI lumens |
| Projection technology | LCOS |
| Projector native resolution | WUXGA (1920x1200) |
| Contrast ratio (typical) | 2500000:1 |
| Native aspect ratio | 16:10 |
| Supported aspect ratios | 16:10 |
| Screen size compatibility | 1270 - 5080 mm (50 - 200") |
| Number of colours | 1.07 billion colours |
| Uniformity | 86% |
| Horizontal scan range | 15 - 135 kHz |
| Vertical scan range | 23.98 - 60 Hz |
| Keystone correction, horizontal | -30 - 30° |
| Keystone correction, vertical | -30 - 30° |
| Matrix size | 1.7 cm (0.67") |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser/LED hybrid |
| Service life of light source | 20000 h |
| Service life of light source (economic mode) | 30000 h |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Fixed focal length | 11.8 mm |
| Zoom capability | Yes |
| Zoom type | Manual |
| Zoom ratio | 1.35:1 |
| Throw ratio | 0.85 - 1.07 |
Video
| Specification | Value |
|---|---|
| Full HD | Yes |
| Supported graphics resolutions | 640 x 480 (VGA), 800 x 600 (SVGA), 1280 x 1024 (SXGA), 1400 x 1050 (SXGA+) |

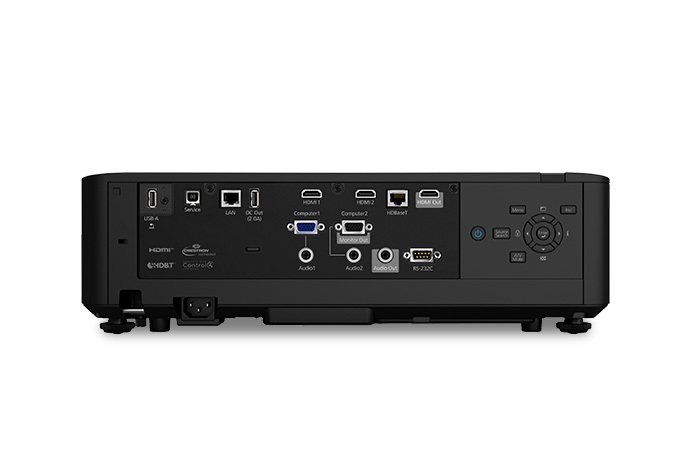

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 2 |
| HDMI ports quantity | 2 |
| HDMI connector type | Full-size |
| HDBaseT port | Yes |
| Audio (L/R) in | 2 |
| Audio (L/R) out | 1 |
| Serial interface type | RS-232C |
| PC in (D-Sub) | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
Features
| Specification | Value |
|---|---|
| Noise level | 38 dB |
| Noise level (economic mode) | 27 dB |
| Screen mirroring | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| RMS rated power | 10 W |
Design
| Specification | Value |
|---|---|
| Product type | Projector module |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 358 W |
| Power consumption (standby) | 2 W |
| Power consumption (economy mode) | 267 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 8.39 kg |
| Width | 439.9 mm |
| Depth | 304 mm |
| Height | 121 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Cables included | AC, HDMI |
| Packaging content | PowerLite L635SU projector, power cable, computer cable (HDMI), projector remote control with batteries, Quick Setup Sheet, cable cover and Quick Setup poster |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Sustainability certificates | Good for recycling |
| Sustainability compliance | Yes |
