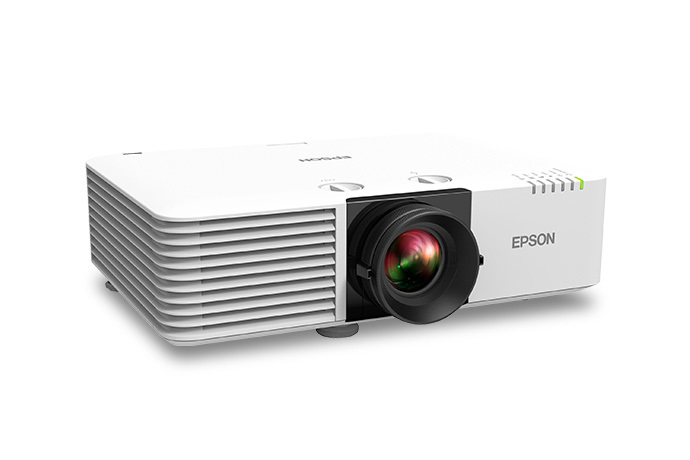

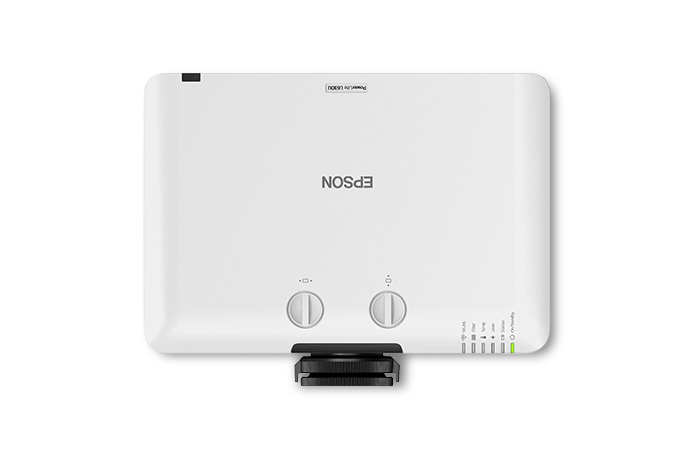

PowerLite L630U Standard throw projector 6200 ANSI lumens 3LCD WUXGA (1920x1200) Black, White
Model L630UPart no. V11HA26020EAN 010343964655
58 specifications
- Noise38 dB
- TypeStandard throw projector
- Weight8.39 kg
- ColourBlack, White
- Projector brightness6200 ANSI lumens
- Light source typeLaser
Overview
- Noise
- 38 dB
- Type
- Standard throw projector
- Weight
- 8.39 kg
- Colour
- Black, White
- Projector brightness
- 6200 ANSI lumens
- Light source type
- Laser
- Brand
- Epson
- Category
- Data Projector
- Model
- L630U
- Part number
- V11HA26020
- EAN / UPC
- 010343964655
- Also known as
- Epson PowerLite L630U Standard throw projector 6200 ANSI lumens 3LCD WUXGA (1920x1200) Black, White
Specifications
58 specifications in 14 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 6200 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | WUXGA (1920x1200) |
| Contrast ratio (typical) | 2500000:1 |
| Native aspect ratio | 16:10 |
| Screen size compatibility | 1270 - 12700 mm (50 - 500") |
| Number of colours | 1.07 billion colours |
| Keystone correction, horizontal | -30 - 30° |
| Keystone correction, vertical | -30 - 30° |
| Matrix size | 1.7 cm (0.67") |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
| Service life of light source (economic mode) | 30000 h |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Zoom capability | Yes |
| Zoom ratio | 1.6:1 |
| Throw ratio | 1.35/2.2 |
| Horizontal lens shift range | -20 - 20% |
| Vertical lens shift range | -50 - 50% |
Video
| Specification | Value |
|---|---|
| Analog signal format system | Not supported |
| Full HD | Yes |
| 3D | No |

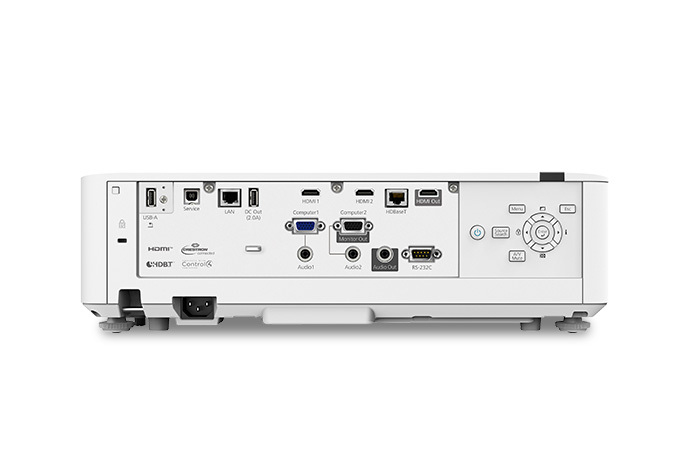

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 3 |
| HDMI ports quantity | 3 |
| HDBaseT port | Yes |
| USB 2.0 ports quantity | 1 |
| USB 2.0 Type-B ports quantity | 1 |
| Audio (L/R) in | 2 |
| Audio (L/R) out | 1 |
| Serial interface type | RS-232C |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | Yes |
| Miracast | Yes |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Noise level | 38 dB |
| Noise level (economic mode) | 27 dB |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 10 W |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Market positioning | Business |
| Product colour | Black, White |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 358 W |
| Power consumption (standby) | 2 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 8.39 kg |
| Width | 439.9 mm |
| Depth | 319.8 mm |
| Height | 135.9 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | AC, HDMI |
