PowerLite L630SU Standard throw projector 6000 ANSI lumens WUXGA (1920x1200) White
Model L630SUPart no. V11HA29020EAN 010343964716
58 specifications
- Noise38 dB
- TypeStandard throw projector
- Weight8.39 kg
- ColourWhite
- Projector brightness6000 ANSI lumens
- Light source typeLaser
Overview
- Noise
- 38 dB
- Type
- Standard throw projector
- Weight
- 8.39 kg
- Colour
- White
- Projector brightness
- 6000 ANSI lumens
- Light source type
- Laser
- Brand
- Epson
- Category
- Data Projector
- Model
- L630SU
- Part number
- V11HA29020
- EAN / UPC
- 010343964716
- Also known as
- Epson PowerLite L630SU Standard throw projector 6000 ANSI lumens WUXGA (1920x1200) White
Specifications
58 specifications in 14 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 6000 ANSI lumens |
| Projector native resolution | WUXGA (1920x1200) |
| Contrast ratio (typical) | 2500000:1 |
| Native aspect ratio | 16:10 |
| Smart projector | Yes |
| Screen size compatibility | 1270 - 5080 mm (50 - 200") |
| Projection distance | 1.27 - 5.08 m |
| Number of colours | 1.07 billion colours |
| Keystone correction, horizontal | -30 - 30° |
| Keystone correction, vertical | -30 - 30° |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
| Service life of light source (economic mode) | 30000 h |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Fixed focal length | 11.8 mm |
| Zoom type | Manual |
| Zoom ratio | 1.35:1 |
| Throw ratio | 0.85 – 1.07 |
| Horizontal lens shift range | -20 - 20% |
| Vertical lens shift range | -50 - 50% |
Video
| Specification | Value |
|---|---|
| Full HD | Yes |
| Supported graphics resolutions | 640 x 480 (VGA), 800 x 600 (SVGA), 1280 x 1024 (SXGA), 1400 x 1050 (SXGA+) |

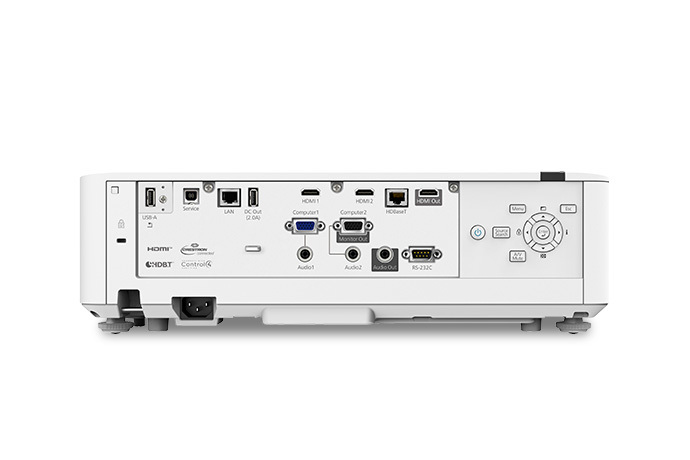

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 3 |
| HDMI ports quantity | 3 |
| USB 2.0 Type-B ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Audio (L/R) in | 2 |
| Serial interface type | RJ-45, RS-232C |
| PC in (D-Sub) | Yes |
| AC (power) in | Yes |
Network
| Specification | Value |
|---|---|
| Smart TV | No |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
Features
| Specification | Value |
|---|---|
| Noise level | 38 dB |
| Noise level (economic mode) | 27 dB |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 10 W |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Market positioning | Business |
| Product colour | White |
| Cable lock slot | Yes |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 358 W |
| Power consumption (standby) | 2 W |
| Power consumption (PowerSave) | 267 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50-60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 8.39 kg |
| Width | 439.9 mm |
| Depth | 304 mm |
| Height | 121.9 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | AC, HDMI |
| Manual | Yes |
Logistics data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
