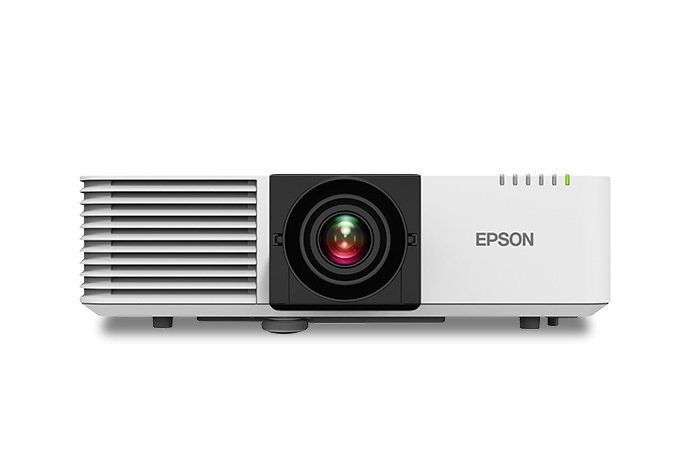

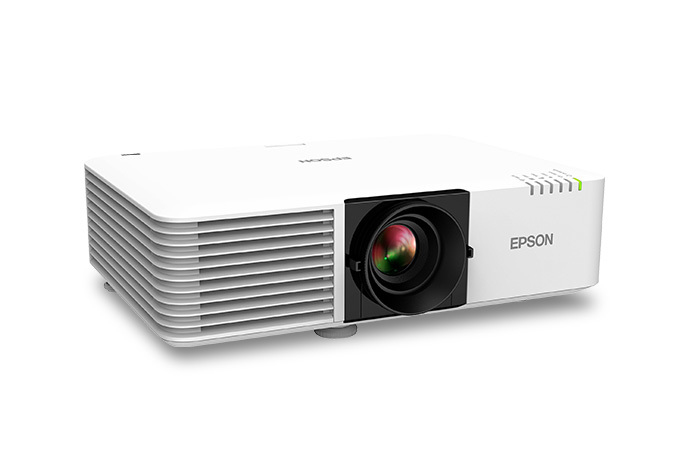

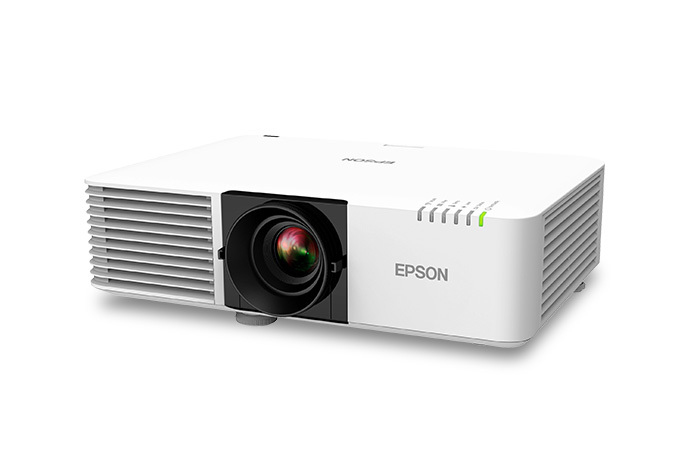

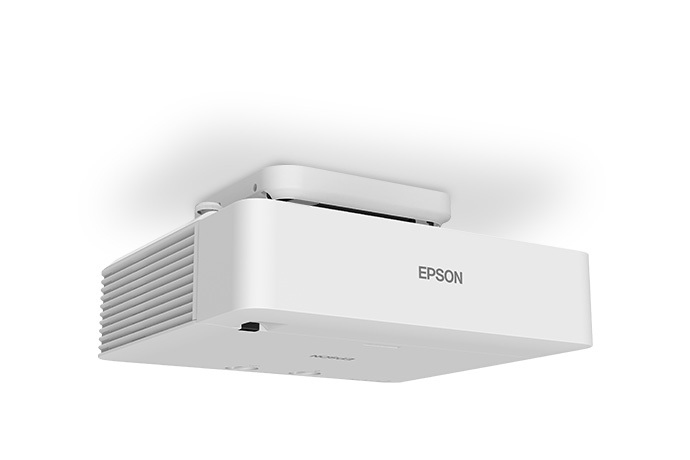

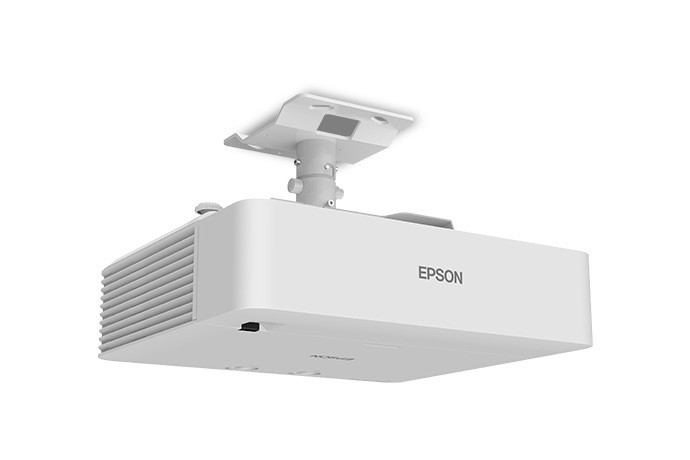

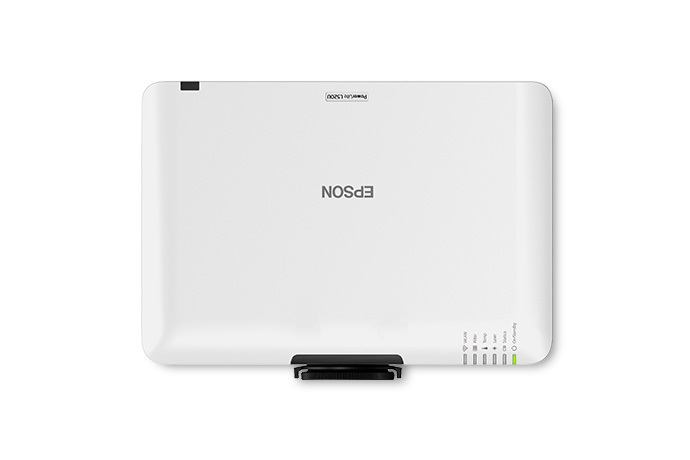

PowerLite L520U Standard throw projector 5200 ANSI lumens LCOS WUXGA (1920x1200) White
Model L520UPart no. V11HA30020EAN 010343964693
62 specifications
- Noise31 dB
- TypeStandard throw projector
- Weight7.71 kg
- ColourWhite
- Projector brightness5200 ANSI lumens
- Light source typeLaser/LED hybrid
Overview
- Noise
- 31 dB
- Type
- Standard throw projector
- Weight
- 7.71 kg
- Colour
- White
- Projector brightness
- 5200 ANSI lumens
- Light source type
- Laser/LED hybrid
- Brand
- Epson
- Category
- Data Projector
- Model
- L520U
- Part number
- V11HA30020
- EAN / UPC
- 010343964693
- Also known as
- Epson PowerLite L520U Standard throw projector 5200 ANSI lumens LCOS WUXGA (1920x1200) White
Specifications
62 specifications in 14 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 5200 ANSI lumens |
| Projection technology | LCOS |
| Projector native resolution | WUXGA (1920x1200) |
| Contrast ratio (typical) | 2500000:1 |
| Native aspect ratio | 16:10 |
| Screen size compatibility | 1270 - 12700 mm (50 - 500") |
| Number of colours | 1.07 billion colours |
| Uniformity | 86% |
| Horizontal scan range | 15 - 135 kHz |
| Vertical scan range | 23.98 - 60 Hz |
| Keystone correction, horizontal | -30 - 30° |
| Keystone correction, vertical | -30 - 30° |
| Matrix size | 1.7 cm (0.67") |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser/LED hybrid |
| Service life of light source | 20000 h |
| Service life of light source (economic mode) | 30000 h |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Focal length range | 20 - 31.8 mm |
| Zoom capability | Yes |
| Zoom type | Manual |
| Zoom ratio | 1.6:1 |
| Throw ratio | 1.35 - 2.20 |
Video
| Specification | Value |
|---|---|
| Full HD | Yes |
| Supported graphics resolutions | 640 x 480 (VGA), 800 x 600 (SVGA), 1280 x 1024 (SXGA), 1400 x 1050 (SXGA+) |

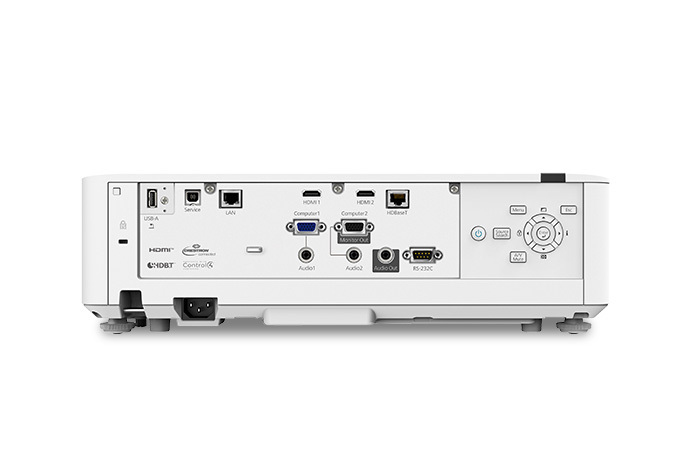

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 2 |
| HDMI ports quantity | 2 |
| HDMI connector type | Full-size |
| HDBaseT port | Yes |
| Audio (L/R) in | 2 |
| Audio (L/R) out | 1 |
| Serial interface type | RS-232C |
| AUX in | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
Features
| Specification | Value |
|---|---|
| Noise level | 31 dB |
| Noise level (economic mode) | 23 dB |
| Projection modes | Ceiling, Front, Rear |
| Screen mirroring | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| RMS rated power | 10 W |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Product colour | White |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 301 W |
| Power consumption (standby) | 2 W |
| Power consumption (economy mode) | 232 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 7.71 kg |
| Width | 439.9 mm |
| Depth | 304 mm |
| Height | 121 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | AC, HDMI |
| Packaging content | PowerLite L520U projector, power cable, computer cable (HDMI), projector remote control with batteries, Quick Setup Sheet, cable cover |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Sustainability certificates | Good for recycling |
| Sustainability compliance | Yes |
