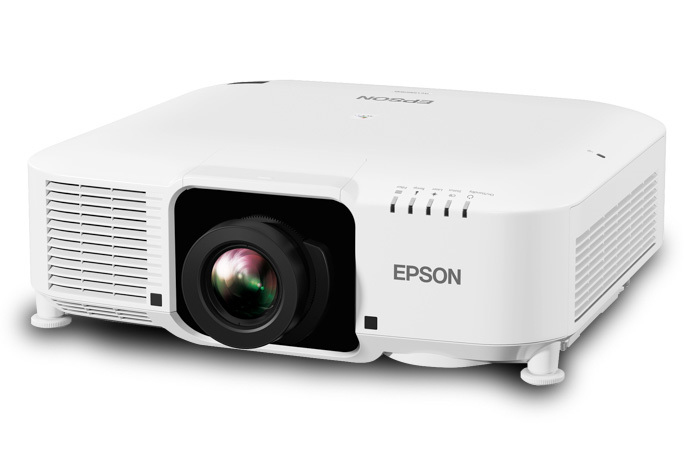

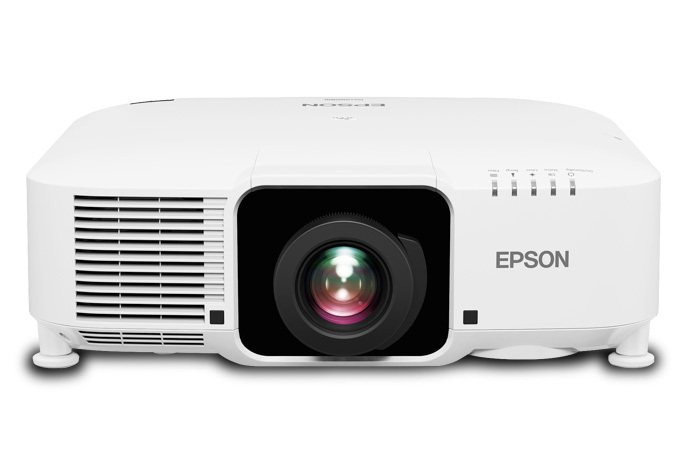

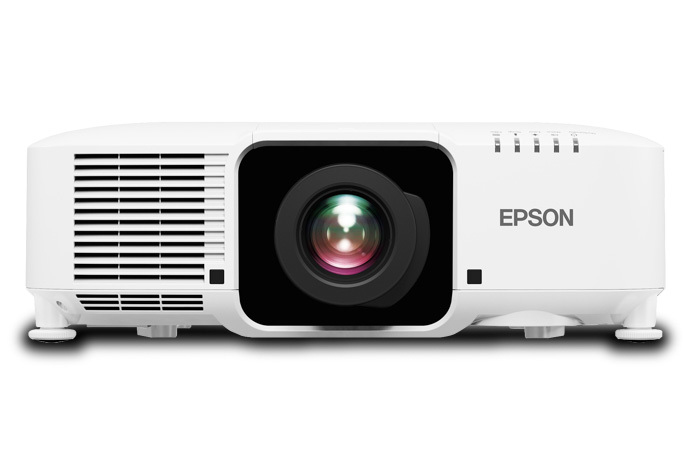

L1070W Projector module 7000 ANSI lumens 3LCD WXGA (1200x800) Black, White
Model L1070WPart no. V11H957020EAN 010343949904
49 specifications
- Noise34 dB
- TypeProjector module
- Weight15.6 kg
- ColourBlack, White
- Projector brightness7000 ANSI lumens
- Light source typeLaser
Overview
- Noise
- 34 dB
- Type
- Projector module
- Weight
- 15.6 kg
- Colour
- Black, White
- Projector brightness
- 7000 ANSI lumens
- Light source type
- Laser
- Brand
- Epson
- Category
- Data Projector
- Model
- L1070W
- Part number
- V11H957020
- EAN / UPC
- 010343949904
- Also known as
- Epson L1070W Projector module 7000 ANSI lumens 3LCD WXGA (1200x800) Black, White
Specifications
49 specifications in 13 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 7000 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | WXGA (1200x800) |
| Native aspect ratio | 4:3 |
| Supported aspect ratios | 4:3, 16:10, 16:9 |
| Contrast ratio (dynamic) | 2500000:1 |
| Number of colours | 1.07 billion colours |
| Keystone correction, horizontal | 30° |
| Keystone correction, vertical | 45° |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
Lens system
| Specification | Value |
|---|---|
| Focal length range | 24 - 38.2 mm |
| Aperture range (F-F) | 1.7 - 2.3 |
| Zoom ratio | 1.6:1 |
| Throw ratio | 1.44 – 2.32 |
Video
| Specification | Value |
|---|---|
| Full HD | Yes |
| 3D | No |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |

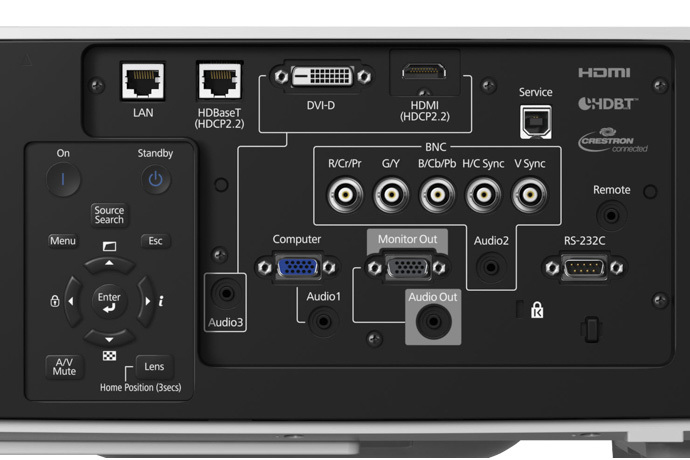

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 2 |
| HDMI ports quantity | 1 |
| DVI port | Yes |
| HDBaseT port | Yes |
| USB 2.0 ports quantity | 2 |
| USB 2.0 Type-A ports quantity | 1 |
| USB 2.0 Type-B ports quantity | 1 |
| Serial interface type | RS-232C |
| BNC input ports | 5 |
Network
| Specification | Value |
|---|---|
| Smart TV | No |
| Ethernet LAN | Yes |
| Wi-Fi | No |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Noise level | 34 dB |
| HDCP | Yes |
Design
| Specification | Value |
|---|---|
| Product type | Projector module |
| Product colour | Black, White |
| Placement | Ceiling |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 361 W |
| Power consumption (standby) | 2 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 15.6 kg |
| Width | 545 mm |
| Depth | 484 mm |
| Height | 189 mm |
