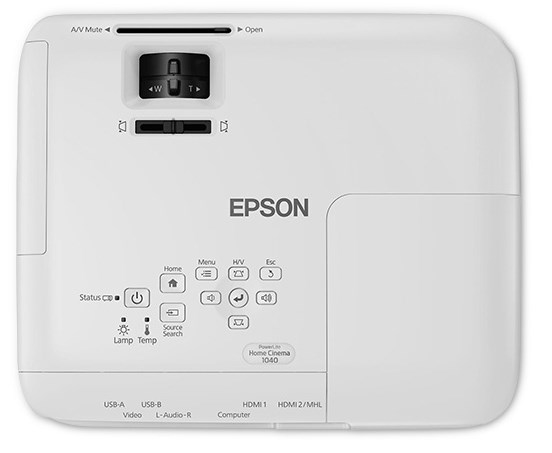

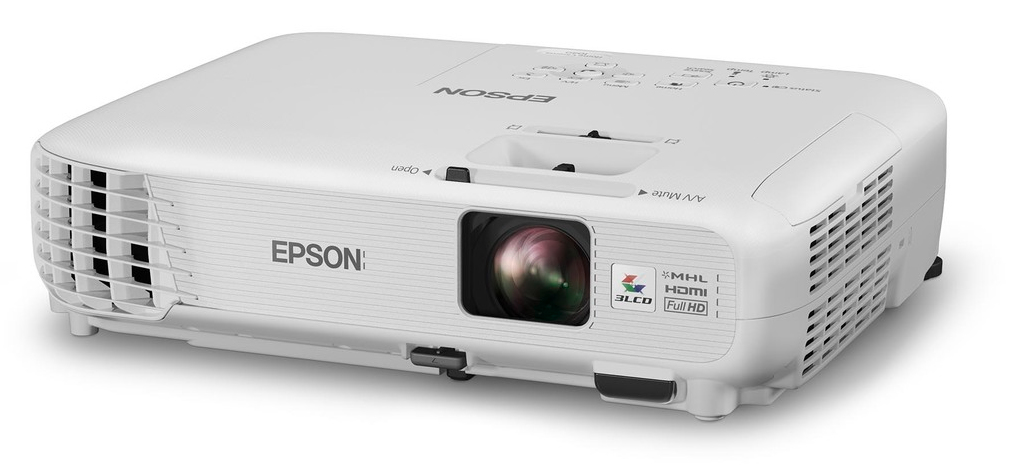

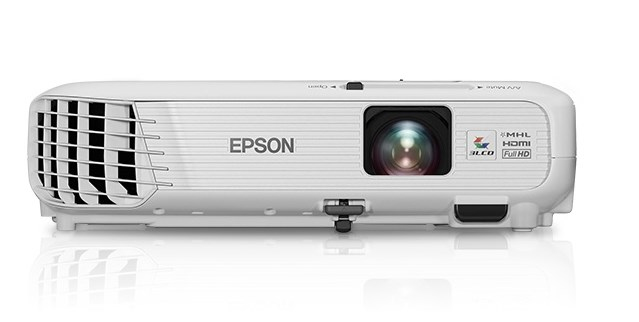

Epson Home Cinema 1040

Epson Home Cinema 1040

Model Home Cinema 1040Part no. V11H772020EAN 010343923652

62 specifications
  • Noise37 dB
  • TypeStandard throw projector
  • Weight2.58 kg
  • ColourWhite
  • Projector brightness3000 ANSI lumens
  • Light source typeLamp
See all specifications

Overview

Noise
37 dB
Type
Standard throw projector
Weight
2.58 kg
Colour
White
Projector brightness
3000 ANSI lumens
Light source type
Lamp
Brand
Epson
Model
Home Cinema 1040
Part number
V11H772020
EAN / UPC
010343923652
Also known as
Epson PowerLite Home Cinema 1040 Standard throw projector 3000 ANSI lumens 3LCD WUXGA (1920x1200) White

Specifications

62 specifications in 16 groups

Projector

Projector brightness3000 ANSI lumens
Projection technology3LCD
Projector native resolutionWUXGA (1920x1200)
Contrast ratio (typical)15000:1
Native aspect ratio16:10
Supported aspect ratios4:3, 16:10
Screen size compatibility762 - 7620 mm (30 - 300")
Number of colours1.073 billion colours
Projector brightness (economic mode)3000 ANSI lumens
Keystone correction, horizontal- 30 - 30°
Keystone correction, vertical- 30 - 30°

Light source

Light source typeLamp
Service life of light source5000 h
Service life of light source (economic mode)10000 h
Lamp power200 W

Lens system

FocusManual
Focal length range20.42 - 24.5 mm
Aperture range (F-F)1.5 - 1.71
Zoom capabilityYes
Zoom typeManual
Zoom ratio1.2:1
Throw ratio1.38 - 1.68:1

Video

Full HDYes
3DNo
Supported video modes480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Video colour modesBright cinema, Cinema, Dynamic, Game

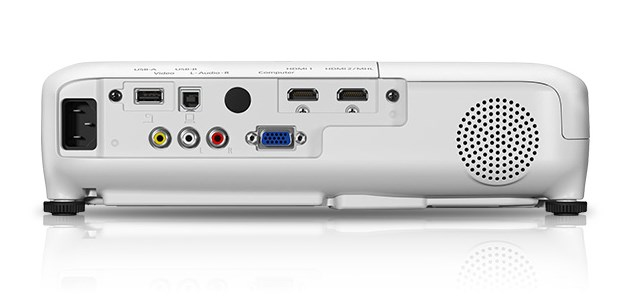

Ports & interfaces

VGA (D-Sub) ports quantity1
HDMI ports quantity2
Component video (YPbPr/YCbCr) in0
Composite video in1
DVI portNo
S-Video inputs quantity0
USB 2.0 ports quantity1
Audio (L/R) in1

Network

Ethernet LANNo
Wi-FiNo

Storage

Card reader integratedNo

Features

Noise level37 dB
Noise level (economic mode)28 dB

Multimedia

Built-in speaker(s)Yes
Number of built-in speakers1
RMS rated power2 W

Design

Product typeStandard throw projector
Market positioningHome cinema
Product colourWhite
PlacementDesktop, Ceiling

Power

Power sourceAC
Power consumption (typical)291 W
Power consumption (standby)0.2 W
Power consumption (economy mode)214 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Software

Windows operating systems supportedYes
Mac operating systems supportedYes

Operational conditions

Operating temperature (T-T)5 - 35 °C

Weight & dimensions

Weight2.58 kg
Width297 mm
Depth243.8 mm
Height83.8 mm

Packaging content

Remote control includedYes
ManualYes

Other features

RS-232 ports0
