Epson G6170NL XGA

Epson G6170NL XGA

Model G6170NL XGAPart no. V11H705920EAN 010343918481

80 specifications
  • Noise39 dB
  • TypeLarge venue projector
  • Weight9.75 kg
  • ColourWhite
  • Projector brightness6500 ANSI lumens
  • Light source typeLamp
See all specifications

Overview

Noise
39 dB
Type
Large venue projector
Weight
9.75 kg
Colour
White
Projector brightness
6500 ANSI lumens
Light source type
Lamp
Brand
Epson
Model
G6170NL XGA
Part number
V11H705920
EAN / UPC
010343918481
Also known as
Epson PowerLite G6170NL XGA Large venue projector 6500 ANSI lumens 3LCD XGA (1024x768) White

Specifications

80 specifications in 16 groups

Projector

Projector brightness6500 ANSI lumens
Projection technology3LCD
Projector native resolutionXGA (1024x768)
Supported aspect ratios4:3, 16:10, 16:9
Screen size compatibility1270 - 7620 mm (50 - 300")
Projection distance1.27 - 7.62 m
Uniformity90%
Colour light output6500 ANSI lumens
Horizontal synchronization (max)92 kHz
Horizontal synchronization (min)15 kHz
Keystone correction, horizontal±30°
Keystone correction, vertical±30°
Matrix type3-panel (p-Si TFT active)
Vertical synchronization (max)85 kHz
Vertical synchronization (min)50 kHz
White light output6500 ANSI lumens

Light source

Light source typeLamp
Service life of light source2000 h
Service life of light source (economic mode)4000 h
Lamp typeUHE
Lamp power380 W
Lamps quantity1 lamp(s)

Lens system

FocusManual
Focal length range21.28 - 37.94 mm
Aperture range (F-F)1.65 - 2.55
Zoom capabilityYes
Zoom typeManual
Zoom ratio1.8:1
Throw ratio1.29 - 2.35:1

Video

Analog signal format systemNTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM
Full HDNo
3DNo
Supported graphics resolutions640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1400 x 1050 (SXGA+)
Supported video modes480i, 480p, 576i, 576p, 720p, 1080i, 1080p

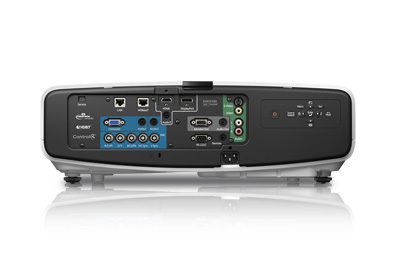

Ports & interfaces

VGA (D-Sub) ports quantity2
HDMI ports quantity1
Component video (YPbPr/YCbCr) in0
Composite video in1
DVI portNo
DisplayPorts quantity1
S-Video inputs quantity1
USB 2.0 ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
Audio (L/R) in1
Serial interface typeRS-232C
PC in (D-Sub)Yes
USB connector typeUSB Type-A, USB Type-B

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates100,1000 Mbit/s
Wi-FiNo

Storage

Card reader integratedNo

Features

Noise level39 dB
Noise level (economic mode)31 dB
HDCPNo
Noise reductionYes

Multimedia

Built-in speaker(s)No

Design

Product typeLarge venue projector
Product colourWhite
PlacementDesktop, Ceiling
Cable lock slotYes
Cable lock slot typeKensington

Display

Built-in displayNo

Power

Power sourceAC
Power consumption (typical)528 W
Power consumption (standby)3.3 W
Power consumption (economy mode)421 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Voltage tolerance10%

Operational conditions

Operating temperature (T-T)0 - 45 °C

Weight & dimensions

Weight9.75 kg
Width504.9 mm
Depth404.9 mm
Height170.9 mm

Packaging content

Remote control includedYes
Cables includedAC, RS-232

Other features

Horizontal resolution1024 lines
RS-232 ports1
RS-232CYes
