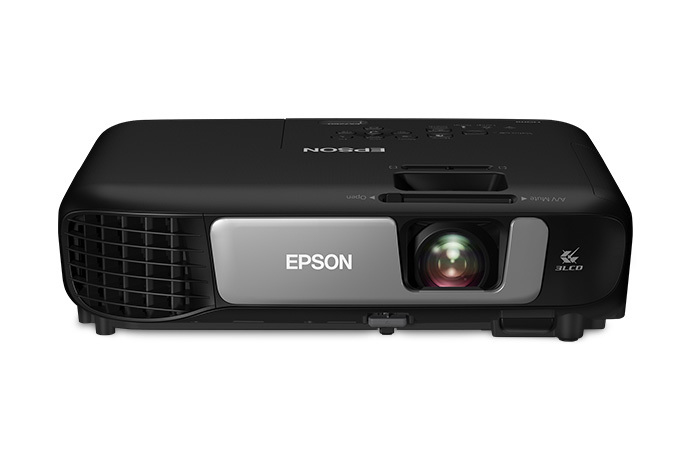

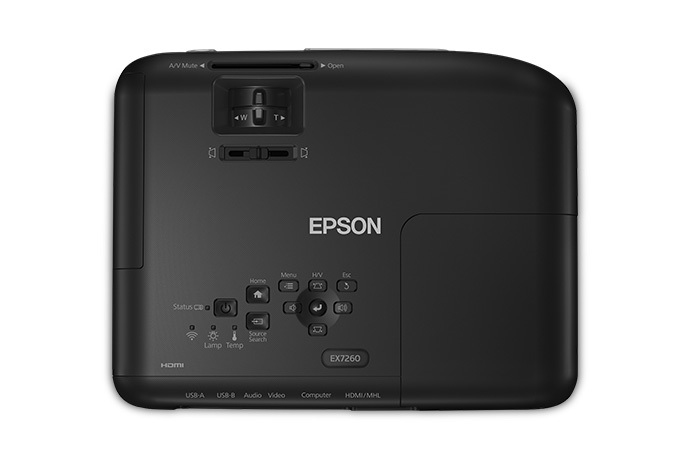

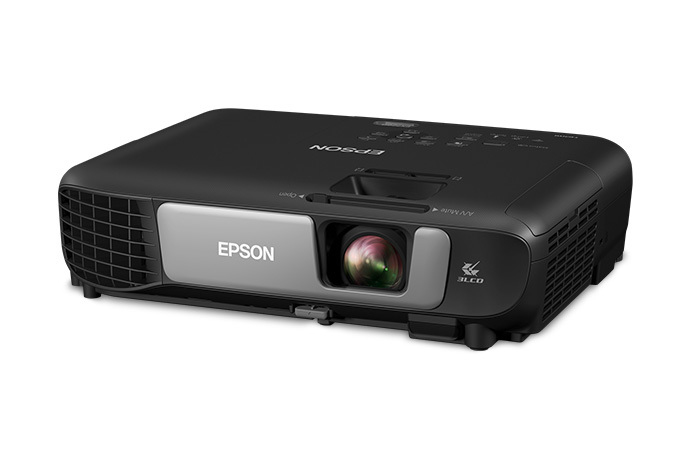

EX7260 Projector module 3600 ANSI lumens 3LCD WXGA (1280x800) Black
Model EX7260Part no. V11H845020EAN 010343936812
50 specifications
- Noise37 dB
- TypeProjector module
- Weight2.5 kg
- ColourBlack
- Projector brightness3600 ANSI lumens
- Light source typeLamp
Overview
- Noise
- 37 dB
- Type
- Projector module
- Weight
- 2.5 kg
- Colour
- Black
- Projector brightness
- 3600 ANSI lumens
- Light source type
- Lamp
- Brand
- Epson
- Category
- Data Projector
- Model
- EX7260
- Part number
- V11H845020
- EAN / UPC
- 010343936812
- Also known as
- Epson EX7260 Projector module 3600 ANSI lumens 3LCD WXGA (1280x800) Black
Specifications
50 specifications in 13 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 3600 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | WXGA (1280x800) |
| Contrast ratio (typical) | 1500:1 |
| Native aspect ratio | 16:10 |
| Supported aspect ratios | 4:3, 16:10, 16:9 |
| Screen size compatibility | 838.2 - 8128 mm (33 - 320") |
| Number of colours | 1.07 billion colours |
| Keystone correction, horizontal | -30 - 30° |
| Keystone correction, vertical | -30 - 30° |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 6000 h |
| Service life of light source (economic mode) | 10000 h |
| Lamp type | UHE |
| Lamp power | 210 W |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Focal length range | 16.9 - 20.28 mm |
| Zoom capability | Yes |
| Zoom ratio | 1.2:1 |
| Throw ratio | 1.30 - 1.56 |
Video
| Specification | Value |
|---|---|
| Analog signal format system | NTSC, NTSC 4.43, PAL, PAL 60, SECAM |
| Full HD | Yes |
| Supported graphics resolutions | 800 x 600 (SVGA), 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 960, 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1600 x 900, 1680 x 1050 (WSXGA+) |

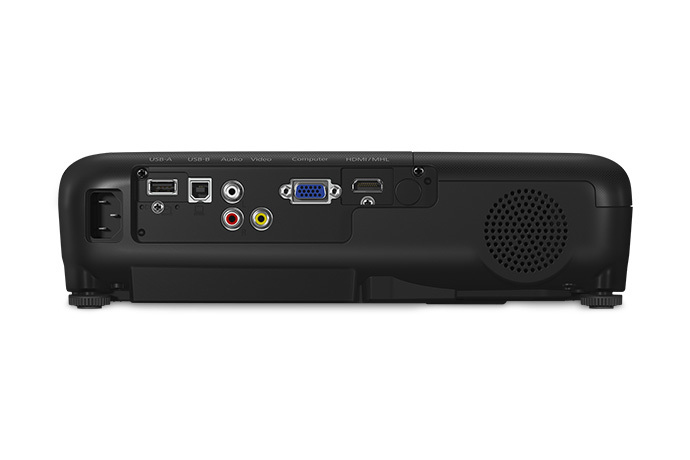

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 1 |
| Composite video in | 1 |
| S-Video inputs quantity | 1 |
| Audio (L/R) in | 1 |
| PC in (D-Sub) | Yes |
| Composite video out | 1 |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
Features
| Specification | Value |
|---|---|
| Noise level | 37 dB |
| Noise level (economic mode) | 28 dB |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| RMS rated power | 2 W |
Design
| Specification | Value |
|---|---|
| Product type | Projector module |
| Market positioning | Portable |
| Product colour | Black |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 296 W |
| Power consumption (economy mode) | 211 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.5 kg |
| Width | 302 mm |
| Depth | 251 mm |
| Height | 91 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
