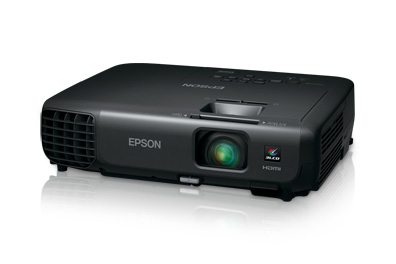

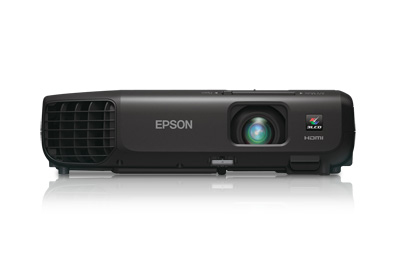

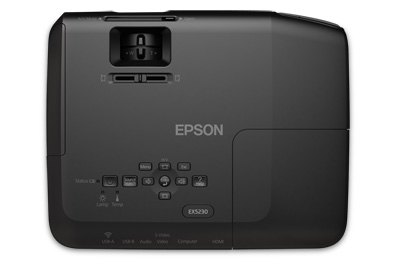

Epson EX5230 Large venue projector 3500 ANSI lumens 3LCD XGA (1024x768) Black

Epson EX5230 Large venue projector 3500 ANSI lumens 3LCD XGA (1024x768) Black

Model EX5230Part no. EX5230 - V11H553020EAN 010343914223

70 specifications
  • Noise37 dB
  • TypeLarge venue projector
  • Weight24 kg
  • ColourBlack
  • Projector brightness3500 ANSI lumens
  • Light source typeLamp
See all specifications

Overview

Noise
37 dB
Type
Large venue projector
Weight
24 kg
Colour
Black
Projector brightness
3500 ANSI lumens
Light source type
Lamp
Brand
Epson
Model
EX5230
Part numbers
EX5230 - V11H553020, V11H553020-N
EAN / UPC
010343914223
Also known as
Epson EX5230 Large venue projector 3500 ANSI lumens 3LCD XGA (1024x768) Black

Specifications

70 specifications in 14 groups

Projector

Projector brightness3500 ANSI lumens
Projection technology3LCD
Projector native resolutionXGA (1024x768)
Contrast ratio (typical)10000:1
Native aspect ratio4:3
Supported aspect ratios4:3
Projection distance0.8 - 8 m
Projection distance (wide)0.8 - 0.8 m
Projection distance (tele)8 - 8 m
Colour light output3500 ANSI lumens
Keystone correction, horizontal-30 - 30°
Keystone correction, vertical-30 - 30°
Matrix type3-panel (p-Si TFT active)
White light output3500 ANSI lumens

Light source

Light source typeLamp
Service life of light source5000 h
Service life of light source (economic mode)6000 h
Lamp typeUHE
Lamp power200 W
Lamps quantity1 lamp(s)

Lens system

FocusManual
Focal length range16.9 - 20.28 mm
Aperture range (F-F)1.58 - 1.72
Zoom capabilityYes
Zoom typeManual
Zoom ratio1.2:1
Throw ratio1.48 - 1.77:1

Video

Analog signal format systemSECAM, NTSC, PAL, NTSC 4.43, PAL 60, PAL M, PAL N
Full HDNo
HD-ReadyYes
3DNo
Supported graphics resolutions640 x 480 (VGA), 1440 x 900 (WXGA+), 1024 x 768 (XGA), 1440 x 1050, 1440 x 900, 1152 x 864 (XGA+), 1280 x 800 (WXGA)

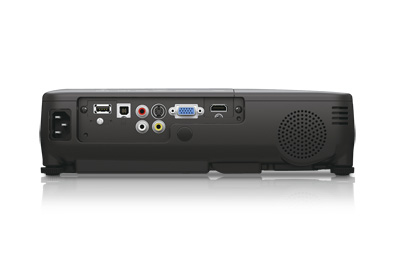

Ports & interfaces

VGA (D-Sub) ports quantity1
HDMI ports quantity1
Composite video in1
S-Video inputs quantity1
USB 2.0 ports quantity2
Audio (L/R) in1
PC in (D-Sub)Yes
USB connector typeUSB Type-A, USB Type-B
DC-in jackYes

Network

Ethernet LANNo
Wi-FiNo
BluetoothNo

Features

Noise level37 dB
Noise level (economic mode)29 dB

Multimedia

Built-in speaker(s)Yes
Number of built-in speakers1
RMS rated power2 W

Design

Product typeLarge venue projector
Product colourBlack
PlacementDesktop, Ceiling
Cable lock slotYes
Cable lock slot typeKensington
LED indicatorsYes

Power

Power sourceAC
Power consumption (typical)283 W
Power consumption (economy mode)207 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Voltage tolerance10%

Software

Windows operating systems supportedYes
Mac operating systems supportedYes

Operational conditions

Operating temperature (T-T)5 - 35 °C

Weight & dimensions

Weight24 kg
Width294.6 mm
Depth228.6 mm
Height76.2 mm

Packaging content

Remote control includedYes
Remote control typeIR
