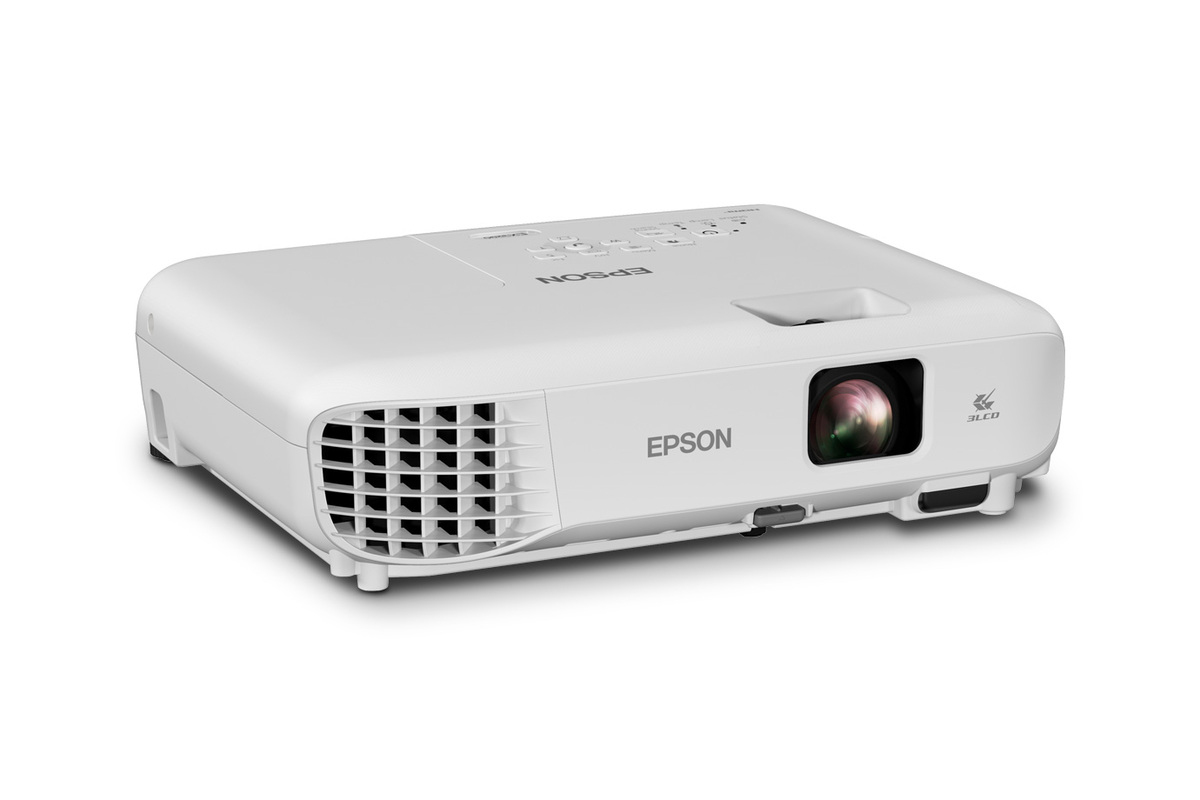

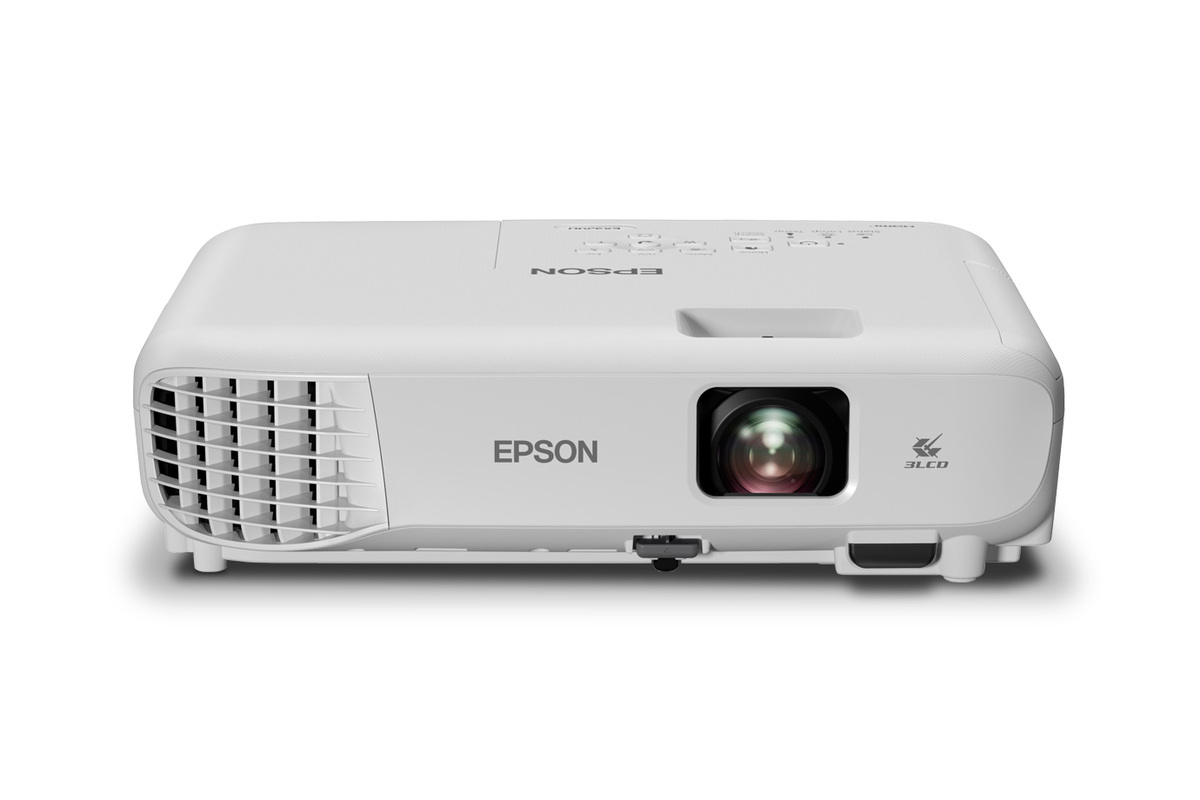

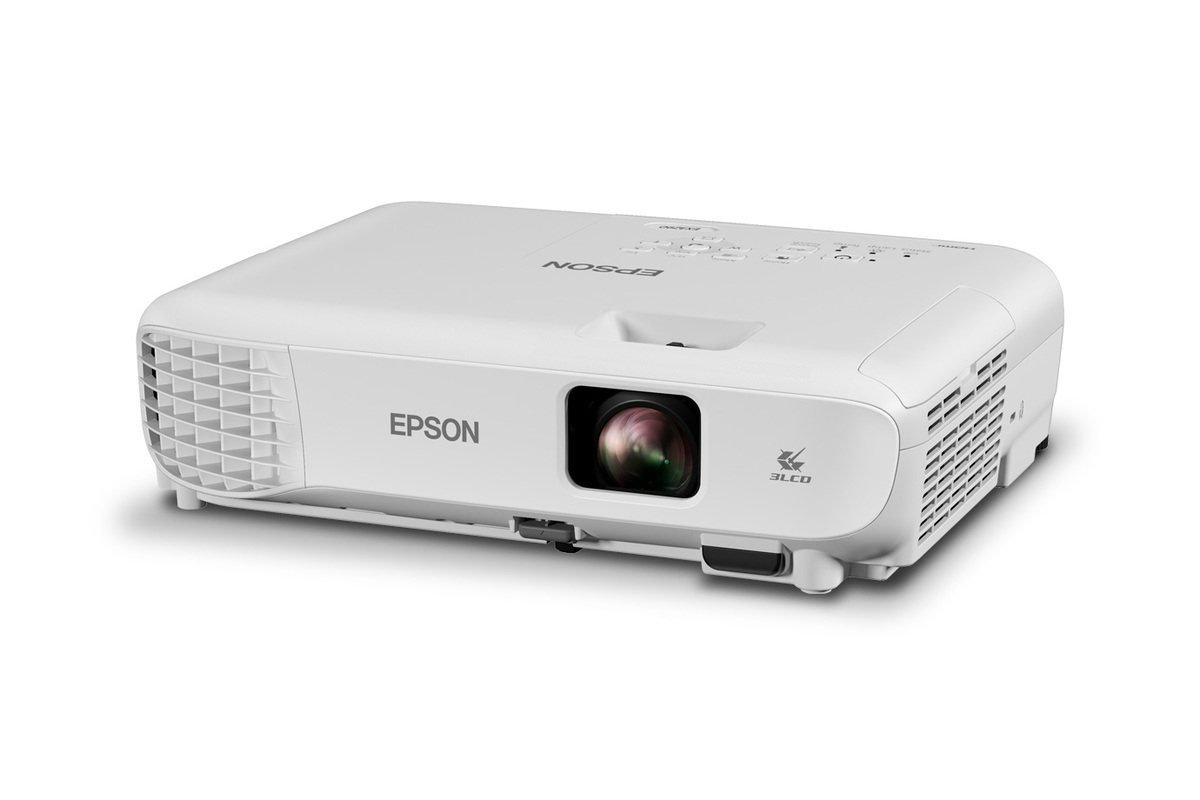

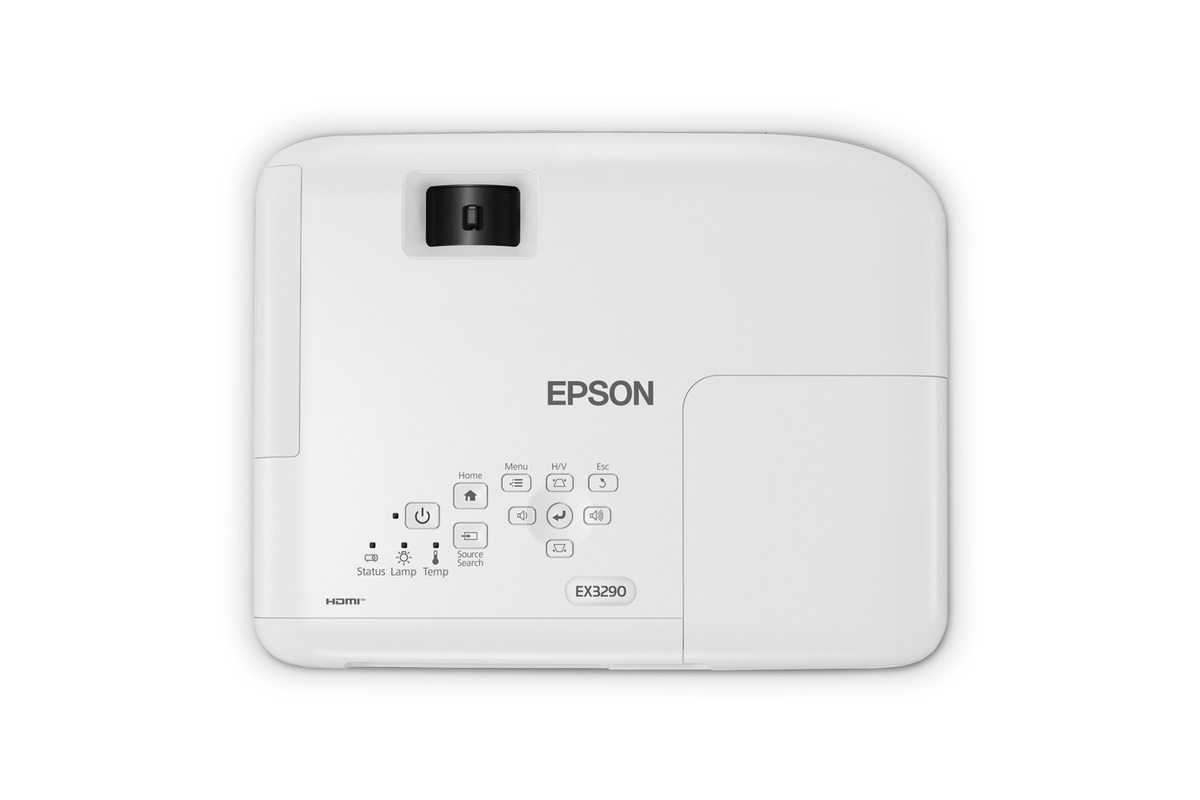

EX3290 4000 ANSI lumens 3LCD WXGA (1200x800) White
Model EX3290Part no. V11HB57020EAN 198390001834
65 specifications
- Noise37 dB
- Weight2.5 kg
- ColourWhite
- Projector brightness4000 ANSI lumens
- Light source typeLamp
- FocusManual
Overview
- Noise
- 37 dB
- Weight
- 2.5 kg
- Colour
- White
- Projector brightness
- 4000 ANSI lumens
- Light source type
- Lamp
- Focus
- Manual
- Brand
- Epson
- Category
- Data Projector
- Model
- EX3290
- Part number
- V11HB57020
- EAN / UPC
- 198390001834
- Also known as
- Epson EX3290 4000 ANSI lumens 3LCD WXGA (1200x800) White
Specifications
65 specifications in 15 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 4000 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | WXGA (1200x800) |
| Contrast ratio (typical) | 16000:1 |
| Native aspect ratio | 16:10 |
| Smart projector | No |
| Screen size compatibility | 838.2 - 9525 mm (33 - 375") |
| Number of colours | 16.78 million colours |
| Keystone correction, horizontal | -30 - 30° |
| Keystone correction, vertical | -30 - 30° |
| Matrix type | 3-panel (p-Si TFT active) |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 6000 h |
| Service life of light source (economic mode) | 12000 h |
| Lamp type | UHE |
| Lamp power | 210 W |
| Lamps quantity | 1 lamp(s) |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Fixed focal length | 16.7 mm |
| F-number (relative aperture) | 1.44 |
| Zoom capability | Yes |
| Zoom ratio | 2.0:1 |
| Throw ratio | 1.44 - 1.95 |
Video
| Specification | Value |
|---|---|
| Analog signal format system | Not supported |
| Full HD | No |
| 3D | No |

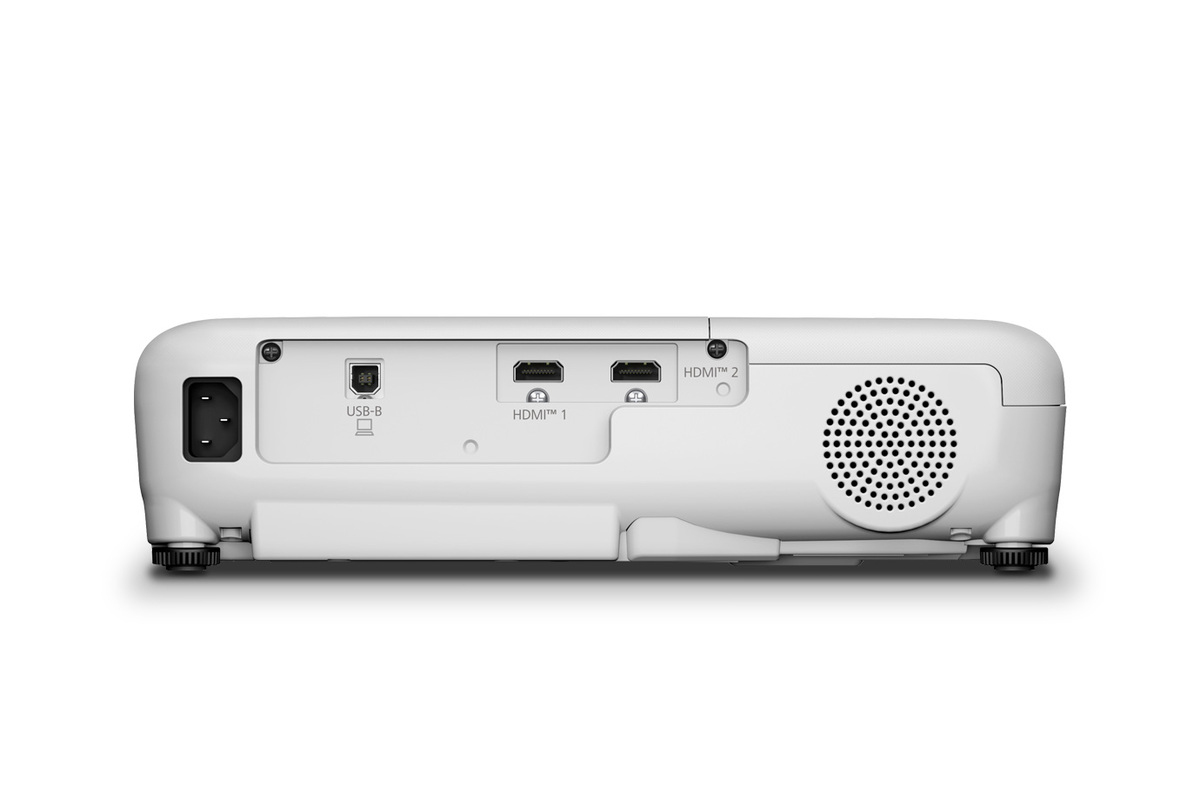

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 2 |
| Component video (YPbPr/YCbCr) in | 0 |
| Composite video in | 0 |
| DVI port | No |
| Service port type | USB Type-B |
| Audio (L/R) in | 0 |
| AC (power) in | Yes |
Network
| Specification | Value |
|---|---|
| Smart TV | No |
| Ethernet LAN | No |
| Wi-Fi | No |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Interactive | No |
| Noise level | 37 dB |
| Noise level (economic mode) | 28 dB |
| Preset modes | Blackboard, Cinema, Dynamic, Presentation, sRGB |
| Password protection | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 2 W |
Design
| Specification | Value |
|---|---|
| Market positioning | Portable |
| Product colour | White |
| Placement | Ceiling, Desktop |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 187 W |
| Power consumption (economy mode) | 235 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.5 kg |
| Width | 302 mm |
| Depth | 237 mm |
| Height | 82 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | AC |
