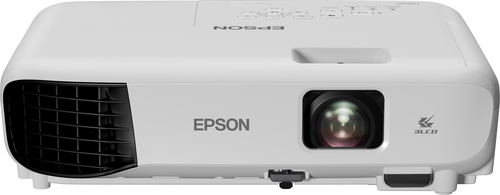

EX3280 Standard throw projector 3600 ANSI lumens 3LCD XGA (1024x768) White
Model EX3280Part no. V11H975020EAN 010343955141
76 specifications
- Noise37 dB
- TypeStandard throw projector
- Weight2.4 kg
- ColourWhite
- Projector brightness3600 ANSI lumens
- Light source typeLamp
Overview
- Noise
- 37 dB
- Type
- Standard throw projector
- Weight
- 2.4 kg
- Colour
- White
- Projector brightness
- 3600 ANSI lumens
- Light source type
- Lamp
- Brand
- Epson
- Category
- Data Projector
- Model
- EX3280
- Part number
- V11H975020
- EAN / UPC
- 010343955141
- Also known as
- Epson EX3280 Standard throw projector 3600 ANSI lumens 3LCD XGA (1024x768) White
Specifications
76 specifications in 17 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 3600 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | XGA (1024x768) |
| Contrast ratio (typical) | 15000:1 |
| Native aspect ratio | 4:3 |
| Screen size compatibility | 762 - 8890 mm (30 - 350") |
| Number of colours | 1.07 billion colours |
| Keystone correction, horizontal | -30 - 30° |
| Keystone correction, vertical | -30 - 30° |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 6000 h |
| Service life of light source (economic mode) | 12000 h |
| Lamp type | UHE |
| Lamp power | 210 W |
| Lamps quantity | 1 lamp(s) |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Fixed focal length | 16.7 mm |
| Zoom type | Auto |
| Zoom ratio | 1.35:1 |
| Throw ratio | 1.44 - 1.95:1 |
Video
| Specification | Value |
|---|---|
| Analog signal format system | NTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM |
| Full HD | No |
| 3D | No |
| Video colour modes | Blackboard, Cinema, Dynamic, Presentation, sRGB |
| Video processing | 10 bit |
Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI connector type | Full-size |
| Component video (YPbPr/YCbCr) in | 0 |
| Composite video in | 0 |
| DVI port | No |
| S-Video inputs quantity | 0 |
| USB 2.0 ports quantity | 1 |
| USB 2.0 Type-B ports quantity | 1 |
| Audio (L/R) in | 0 |
| AC (power) in | Yes |
Network
| Specification | Value |
|---|---|
| Smart TV | No |
| Ethernet LAN | No |
| Wi-Fi | No |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Interactive | No |
| Noise level | 37 dB |
| Noise level (economic mode) | 28 dB |
| On Screen Display (OSD) | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 2 W |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Market positioning | Presentation |
| Housing material | Plastic |
| Product colour | White |
| Placement | Ceiling, Desktop |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 345 W |
| Power consumption (standby) | 0.3 W |
| Power consumption (economy mode) | 235 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.4 kg |
| Width | 302.3 mm |
| Depth | 236.2 mm |
| Height | 81.3 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Carrying case | Yes |
| Manual | Yes |
| Bundled software | Inhalt DIY-App, Epson Projektor Management, Epson Projektor Professional Tool |
Technical details
| Specification | Value |
|---|---|
| USB display function | 2 in 1: Image / Mouse |
Logistics data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Pallet gross weight | 0 g |
| Pallet weight (UK) | 0 g |
| Products per pallet | 84 pc(s) |
| Products per pallet (UK) | 126 pc(s) |
