LightScene EV-110
Model EV-110Part no. V11HA22040EAN 8715946689326
84 specifications
- Noise34 dB
- TypeStandard throw projector
- Weight5 kg
- ColourWhite
- Projector brightness2200 ANSI lumens
- Light source typeLaser
Overview
- Noise
- 34 dB
- Type
- Standard throw projector
- Weight
- 5 kg
- Colour
- White
- Projector brightness
- 2200 ANSI lumens
- Light source type
- Laser
- Brand
- Epson
- Category
- Data Projector
- Model
- EV-110
- Part number
- V11HA22040
- EAN / UPC
- 8715946689326
- Also known as
- Epson LightScene EV-110
Specifications
84 specifications in 18 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 2200 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | WXGA (1280x800) |
| Contrast ratio (typical) | 2000:1 |
| Native aspect ratio | 16:10 |
| Screen size compatibility | 762 - 3810 mm (30 - 150") |
| Projection distance | 0.9 - 4.5 m |
| Projection distance (wide) | 0.9 - 4.5 m |
| Contrast ratio (dynamic) | 5000000:1 |
| Number of colours | 16.78 million colours |
| Projector brightness (economic mode) | 1100 ANSI lumens |
| Keystone correction, horizontal | ±40° |
| Keystone correction, vertical | ±45° |
| Matrix size | 1.5 cm (0.59") |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
| Service life of light source (economic mode) | 30000 h |
Lens system
| Specification | Value |
|---|---|
| Focus | Motorized |
| Focal length range | 18.2 - 28.4 mm |
| Aperture range (F-F) | 1.51 - 1.92 |
| Zoom capability | Yes |
| Zoom type | Auto |
| Zoom ratio | 1.58:1 |
| Throw ratio | 1.38 - 2.19:1 |
Video
| Specification | Value |
|---|---|
| Analog signal format system | Not supported |
| Full HD | No |
| 3D | No |
| Video colour modes | Dynamic, Standard |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| USB 2.0 Type-B ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | Yes |
| Compatible memory cards | SD |
Features
| Specification | Value |
|---|---|
| Noise level | 34 dB |
| Noise level (economic mode) | 22 dB |
| Country of origin | China |
| Password protection | Yes |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Market positioning | Business |
| Product colour | White |
| Placement | Ceiling, Floor, Lighting track, Wall |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 149 W |
| Power consumption (standby) | 0.4 W |
| Power consumption (economy mode) | 112 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Software
| Specification | Value |
|---|---|
| Software support | via: Crestron (Network), Crestron Integrated Partner, Crestron RoomView |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 5 kg |
| Width | 175 mm |
| Depth | 260 mm |
| Height | 175 mm |
| Package width | 471 mm |
| Package depth | 530 mm |
| Package height | 247 mm |
| Package weight | 9.43 kg |
| Power adapter width | 36.1 cm |
| Power adapter depth | 11 cm |
| Power adapter height | 6.5 cm |
Packaging content
| Specification | Value |
|---|---|

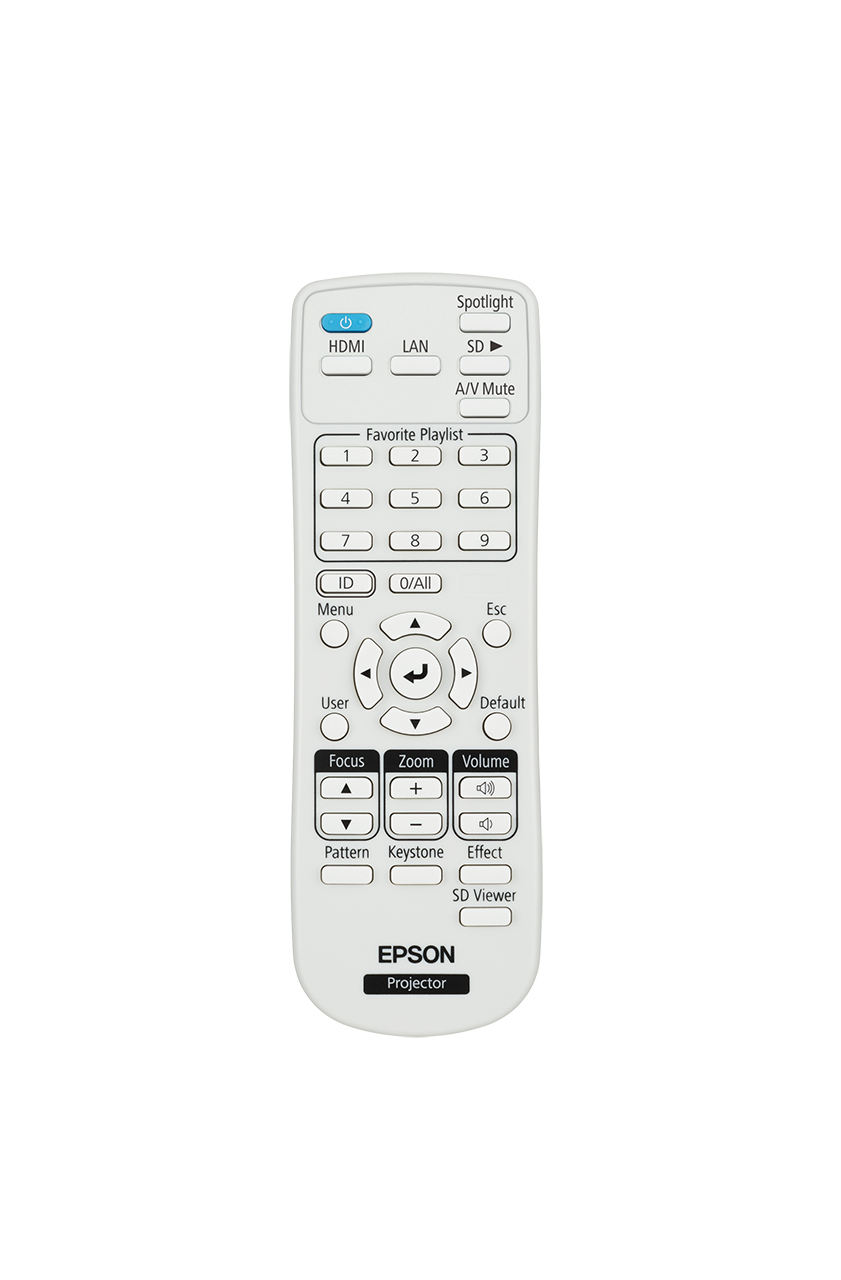

| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | AC |
| Manual | Yes |
| Bundled software | Epson Creative Projection, Epson Projector Content Manager |
Technical details
| Specification | Value |
|---|---|
| Other features | A/V mute, Auto Power On, Digital zoom, Edge Blending, Horizontal and vertical keystone correction, Image Shift, Long light source life, Quick Corner, Web Control, Web Remote |
| Power consumption | 124 Watt (Normal On-Mode), 149 Watt (Normal Peak-mode), 112 Watt (Eco Peak-Mode), 0.4 Watt (Energy saving standby) |
Logistics data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85286200 |
| Pallet weight (UK) | 0 g |
| Products per pallet (UK) | 32 pc(s) |
Other features
| Specification | Value |
|---|---|
| Interface | USB 2.0-A, USB 2.0 Type B (Service Only), Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN b/g/g 2.4GHz, HDMI in, Jack plug out, SD Card Slot, SD Card playback, Wireless LAN a/n (5GHz) |
| Security features | Wireless LAN security, Password protection |
| Supported network protocols | HTTPS, IPv6, SNMP, ESC/VP.net, PJLink |
| Option type | External Speaker, Floor stand, Lighting track mount |
| Box contents | Cable cover, Direct mount unit, HDMI Cable Clamp, Hexagon wrench, Installation/safety manual, Power cable, Quick Start Guide, Remote control incl. batteries, Safety wire set, User Manual (CD-ROM) |
| Control panel | 0.59 inch with C2 Fine |
