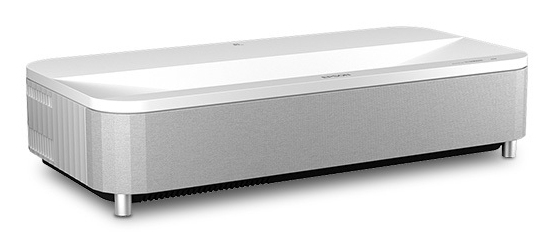

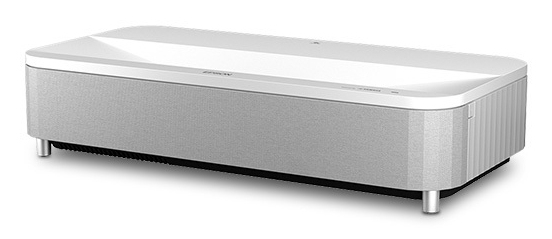

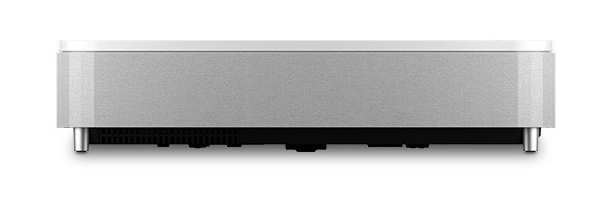

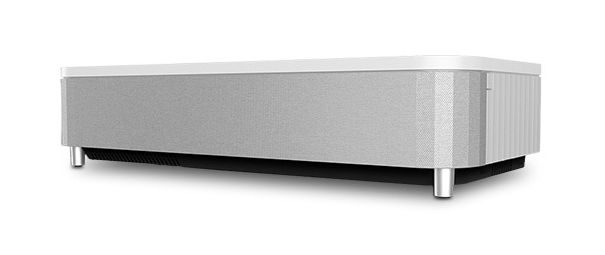

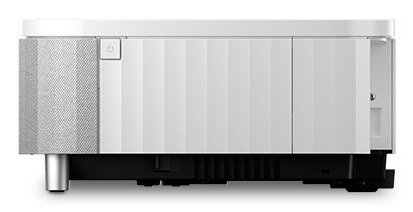

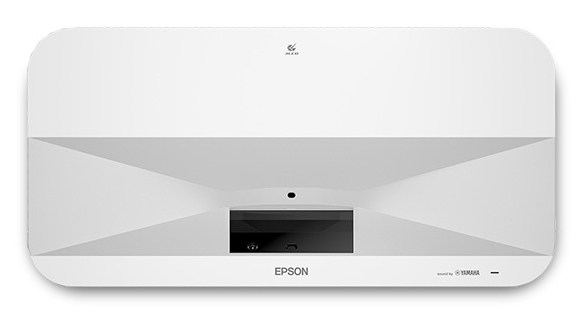

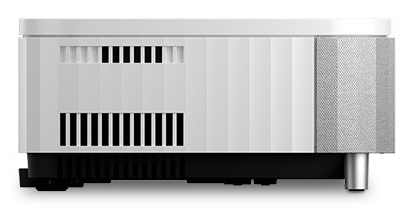

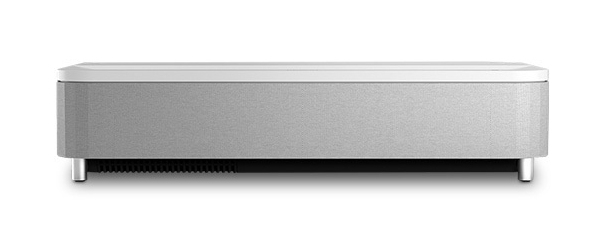

EpiqVision Ultra LS800
Model EpiqVision Ultra LS800Part no. V11HA90020EAN 010343972452
66 specifications
- Noise32 dB
- TypeUltra short throw projector
- Weight12.3 kg
- ColourWhite
- Projector brightness4000 ANSI lumens
- Light source typeLaser
Overview
- Noise
- 32 dB
- Type
- Ultra short throw projector
- Weight
- 12.3 kg
- Colour
- White
- Projector brightness
- 4000 ANSI lumens
- Light source type
- Laser
- Brand
- Epson
- Category
- Data Projector
- Model
- EpiqVision Ultra LS800
- Part numbers
- V11HA90020, V11HA90120
- EAN / UPC
- 010343972452, 010343972537
- Also known as
- Epson EpiqVision Ultra LS800 Ultra short throw projector 4000 ANSI lumens 3LCD 4K+ (5120x3200) White
Specifications
66 specifications in 15 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 4000 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | 4K+ (5120x3200) |
| Contrast ratio (typical) | 2500000:1 |
| Native aspect ratio | 16:9 |
| Screen size compatibility | 2032 - 3810 mm (80 - 150") |
| Projection distance (wide) | 0.3 - 0.5 m |
| Projection distance (tele) | 0.3 - 0.5 m |
| Number of colours | 1.07 billion colours |
| Vertical scan range | 192 - 240 Hz |
| Heat dissipation | 1.139 BTU/h |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
| Service life of light source (economic mode) | 20000 h |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Fixed focal length | 2.3 mm |
| Zoom capability | Yes |
| Zoom type | Auto |
| Throw ratio | 0,16 - 0,40:1 |
Video
| Specification | Value |
|---|---|
| Full HD | Yes |
| 3D | No |
| Video colour modes | Cinema, Dynamic, Natural, Vivid |

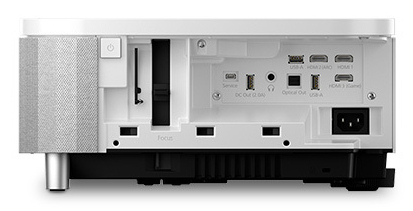

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 3 |
| USB 2.0 ports quantity | 4 |
| USB 2.0 Type-A ports quantity | 3 |
| USB 2.0 Type-B ports quantity | 1 |
| Audio (L/R) out | 1 |
| Headphone outputs | 1 |
Network
| Specification | Value |
|---|---|
| Smart TV | Yes |
| Ethernet LAN | No |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Bluetooth | Yes |
Features
| Specification | Value |
|---|---|
| Noise level | 32 dB |
| Noise level (economic mode) | 19 dB |
| Auto signal detection | Yes |
| Air filter | Yes |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10), Hybrid Log-Gamma (HLG) |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
Design
| Specification | Value |
|---|---|
| Product type | Ultra short throw projector |
| Market positioning | Home cinema |
| Product colour | White |
| Placement | Ceiling, Desktop, TV cabinet |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 350 W |
| Power consumption (standby) | 2 W |
| Power consumption (economy mode) | 217 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Auto power off | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 12.3 kg |
| Width | 695 mm |
| Depth | 341 mm |
| Height | 156 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | Power |
| Manual | Yes |
Logistics data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
