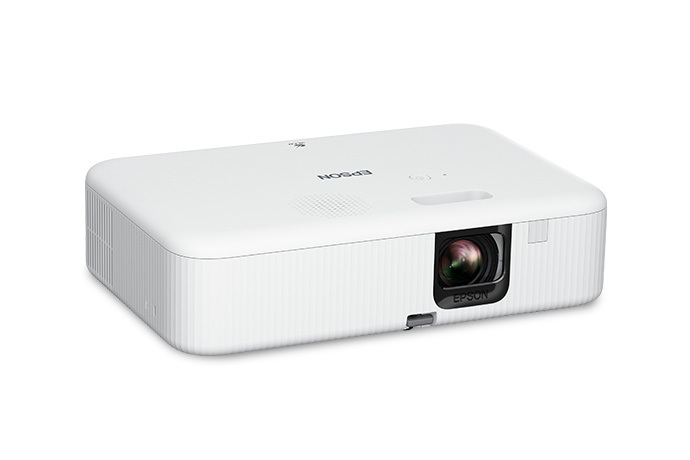

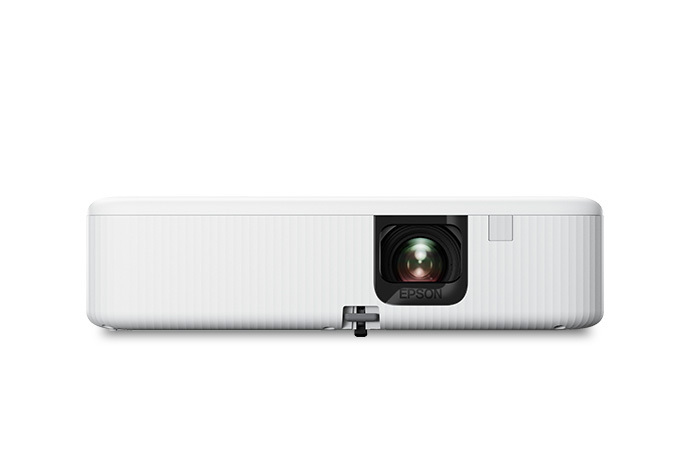

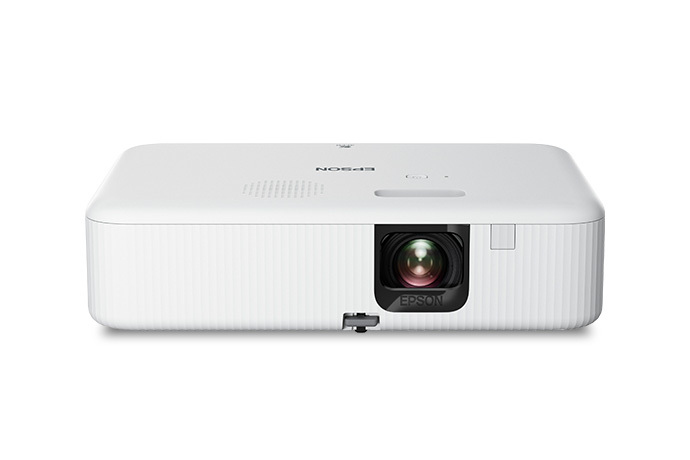

EpiqVision FH02
Model EpiqVision FH02Part no. V11HA85020EAN 010343970328
69 specifications
- Noise37 dB
- OSAndroid TV
- Weight2.6 kg
- ColourWhite
- Projector brightness3000 ANSI lumens
- Light source typeLamp
Overview
- Noise
- 37 dB
- OS
- Android TV
- Weight
- 2.6 kg
- Colour
- White
- Projector brightness
- 3000 ANSI lumens
- Light source type
- Lamp
- Brand
- Epson
- Category
- Data Projector
- Model
- EpiqVision FH02
- Part number
- V11HA85020
- EAN / UPC
- 010343970328
- Also known as
- Epson EpiqVision FH02 3000 ANSI lumens 3LCD 1080p (1920x1080) White
Specifications
69 specifications in 16 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 3000 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | 1080p (1920x1080) |
| Native aspect ratio | 16:9 |
| Supported aspect ratios | 4:3, 16:10, 16:9 |
| Smart projector | Yes |
| Screen size compatibility | 863.6 - 9931.4 mm (34 - 391") |
| Number of colours | 16.78 million colours |
| Keystone correction, horizontal | -30 - 30° |
| Keystone correction, vertical | -30 - 30° |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 6000 h |
| Service life of light source (economic mode) | 12000 h |
| Lamp type | UHE |
| Lamp power | 188 W |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Fixed focal length | 16.4 mm |
| Aperture range (F-F) | 1 - 1.35 |
| F-number (relative aperture) | 1.44 |
| Zoom capability | Yes |
| Throw ratio | 1.19 - 1.61:1 |
Video
| Specification | Value |
|---|---|
| Analog signal format system | Not supported |
| Full HD | Yes |
| 3D | No |
| Supported graphics resolutions | 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1360 x 768 (WXGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+) |
| Supported video modes | 720p, 1080i, 1080p |

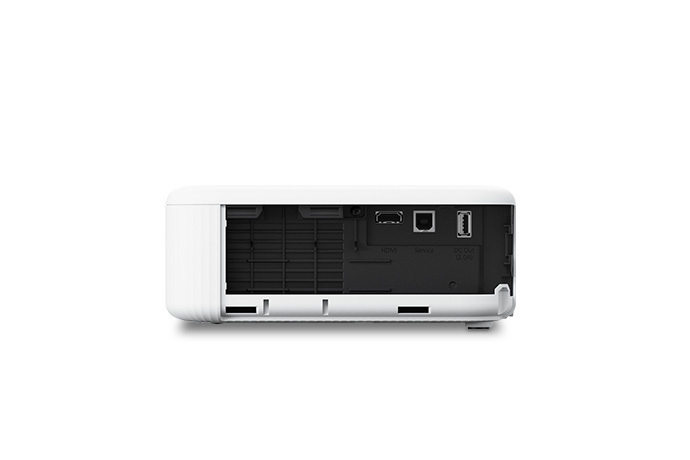

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| USB 2.0 ports quantity | 2 |
| USB 2.0 Type-A ports quantity | 1 |
| USB 2.0 Type-B ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Smart TV | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Noise level | 37 dB |
| Noise level (economic mode) | 29 dB |
| Country of origin | China, Philippines |
| Operating system installed | Android TV |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 5 W |
Design
| Specification | Value |
|---|---|
| Market positioning | Home cinema |
| Product colour | White |
| Placement | Desktop |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 284 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (economy mode) | 223 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Storage temperature (T-T) | -10 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.6 kg |
| Width | 317 mm |
| Depth | 211 mm |
| Height | 87 mm |
| Package width | 328 mm |
| Package depth | 385 mm |
| Package height | 165 mm |
| Package weight | 4.01 kg |
Packaging content
| Specification | Value |
|---|---|

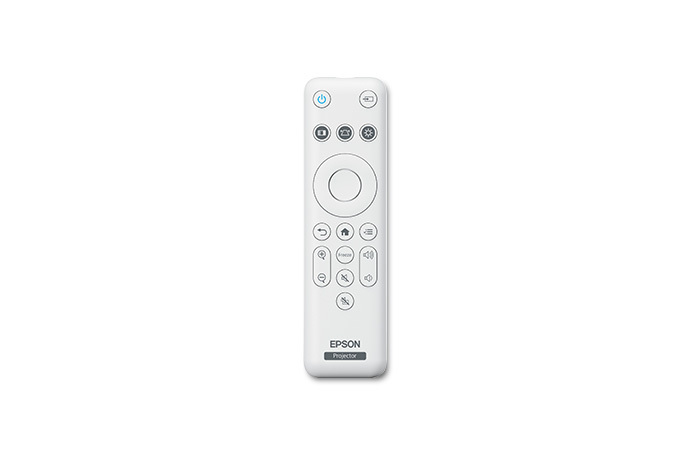

| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | AC |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85286200000 |
