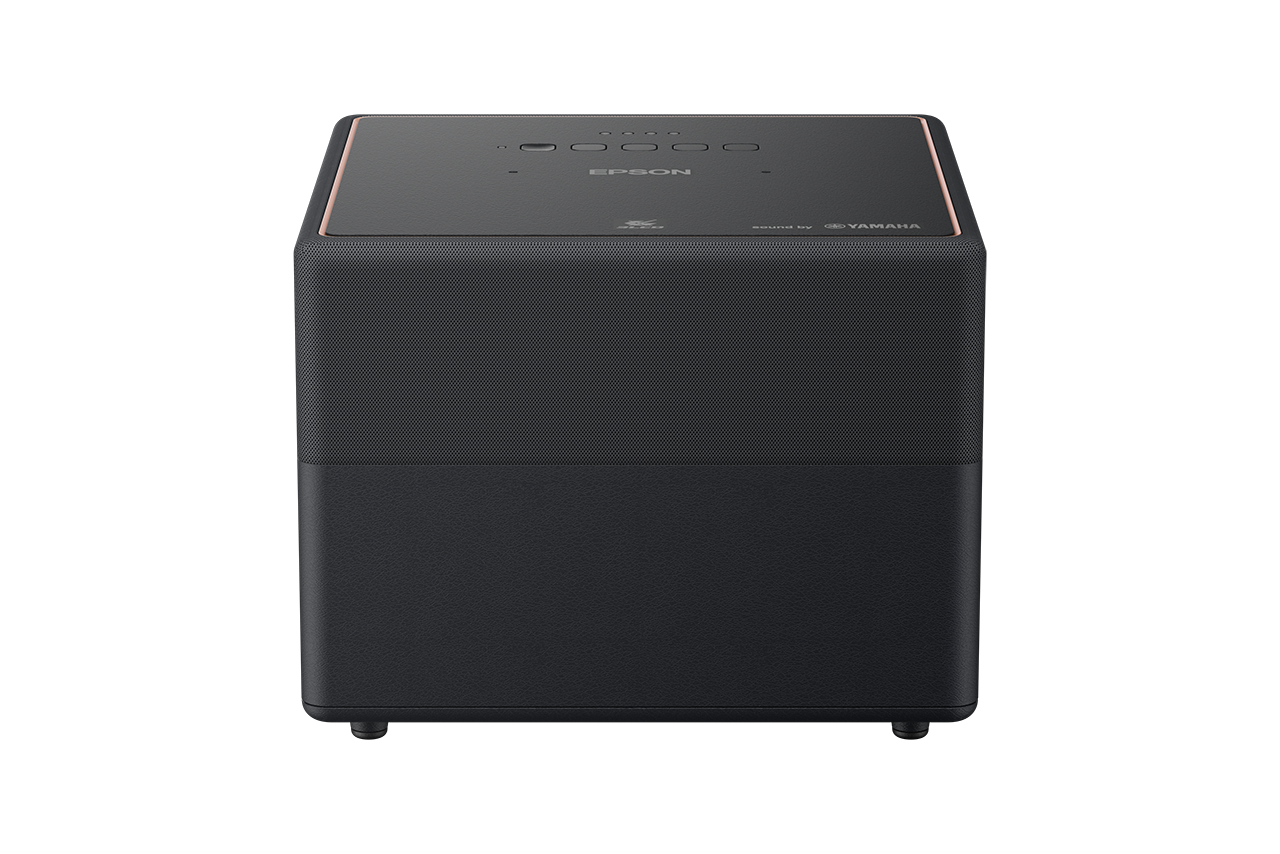

EpiqVision EF12
Model EpiqVision EF12Part no. V11HA14020EAN 010343959217
63 specifications
- Noise27 dB
- TypeStandard throw projector
- OSAndroid TV
- Weight2.1 kg
- ColourBlack
- Projector brightness1000 ANSI lumens
Overview
- Noise
- 27 dB
- Type
- Standard throw projector
- OS
- Android TV
- Weight
- 2.1 kg
- Colour
- Black
- Projector brightness
- 1000 ANSI lumens
- Brand
- Epson
- Category
- Data Projector
- Model
- EpiqVision EF12
- Part number
- V11HA14020
- EAN / UPC
- 010343959217
- Also known as
- Epson EpiqVision EF12 Standard throw projector 1000 ANSI lumens 3LCD 1080p (1920x1080) Black
Specifications
63 specifications in 14 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 1000 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | 1080p (1920x1080) |
| Contrast ratio (typical) | 200000:1 |
| Native aspect ratio | 16:9 |
| Supported aspect ratios | 16:9 |
| Smart projector | Yes |
| Screen size compatibility | 762 - 3810 mm (30 - 150") |
| Number of colours | 16.78 million colours |
| Colour light output | 1000 ANSI lumens |
| Keystone correction, horizontal | -40 - 40° |
| Keystone correction, vertical | -34 - 34° |
| Matrix size | 1.57 cm (0.62") |
| White light output | 1000 ANSI lumens |
| Heat dissipation | 347 BTU/h |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
Lens system
| Specification | Value |
|---|---|
| Fixed focal length | 13.9 mm |
| Throw ratio | 1.00 - 1.00:1 |
Video
| Specification | Value |
|---|---|
| Full HD | Yes |
| 3D | No |
| Video colour modes | Cinema, Dynamic, Natural, Bright cinema, Vivid |
| Video processing | 10 bit |

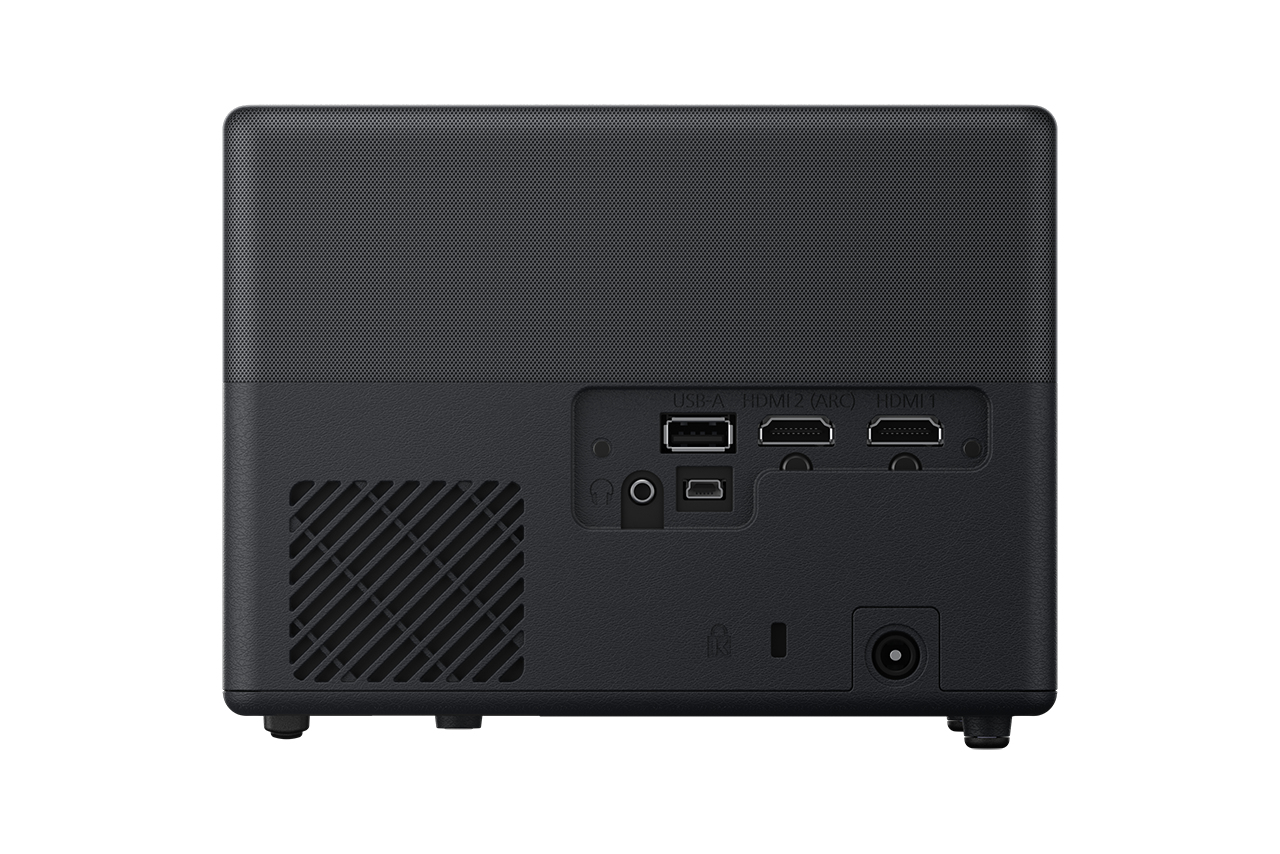

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 2 |
| USB 2.0 ports quantity | 2 |
| USB 2.0 Type-A ports quantity | 1 |
| USB 2.0 Type-B ports quantity | 1 |
| Audio (L/R) out | 1 |
| Audio Return Channel (ARC) | Yes |
Network
| Specification | Value |
|---|---|
| Smart TV | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
Features
| Specification | Value |
|---|---|
| Noise level | 27 dB |
| Noise level (economic mode) | 22 dB |
| Country of origin | Philippines |
| Operating system installed | Android TV |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Product colour | Black |
| Placement | Desktop, Floor |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 102 W |
| Power consumption (economy mode) | 73 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 30 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.1 kg |
| Width | 175 mm |
| Depth | 175 mm |
| Height | 135 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| Quick start guide | Yes |
Logistics data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85286200 |
| Pallet gross weight | 0 g |
| Pallet weight (UK) | 0 g |
| Products per pallet | 84 pc(s) |
| Products per pallet (UK) | 84 pc(s) |
