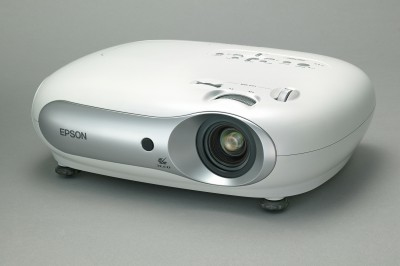

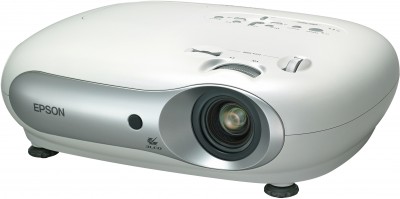

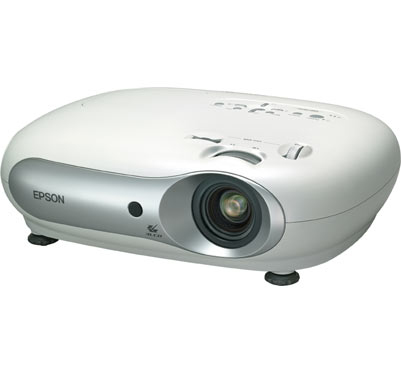

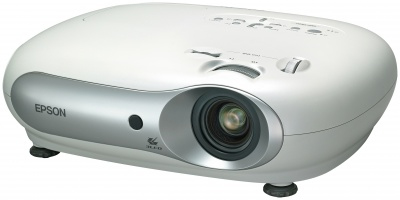

EMP-TW20 Projector 1200ANSI Lumen
Model EMP-TW20 Projector 1200ANSI LumenPart no. V11H180040EAN 8715946279718
40 specifications
- Noise28 dB
- Weight3.5 kg
- Projector brightness1200 ANSI lumens
- Light source typeLamp
- Focal length range13.7 - 20.5 mm
- Serial interface typeRS-232
Overview
- Noise
- 28 dB
- Weight
- 3.5 kg
- Projector brightness
- 1200 ANSI lumens
- Light source type
- Lamp
- Focal length range
- 13.7 - 20.5 mm
- Serial interface type
- RS-232
- Brand
- Epson
- Category
- Data Projector
- Model
- EMP-TW20 Projector 1200ANSI Lumen
- Part number
- V11H180040
- EAN / UPC
- 8715946279718
- Also known as
- Epson EMP-TW20
Specifications
40 specifications in 12 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 1200 ANSI lumens |
| Projection technology | LCD |
| Projector native resolution | XGA (1024x768) |
| Contrast ratio (typical) | 1000:1 |
| Number of colours | 16.78 million colours |
| Uniformity | 90% |
| Horizontal scan range | 15 - 92 kHz |
| Vertical scan range | 50 - 85 Hz |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 2000 h |
| Lamp type | UHE |
| Lamp power | 135 W |
Lens system
| Specification | Value |
|---|---|
| Focal length range | 13.7 - 20.5 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| Serial interface type | RS-232 |
Features
| Specification | Value |
|---|---|
| Noise level | 28 dB |
| Country of origin | China |
Design
| Specification | Value |
|---|---|
| Market positioning | Home cinema |
Display
| Specification | Value |
|---|---|
| Display | LCD |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 190 W |
| Power consumption (standby) | 5 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 3.5 kg |
| Package width | 384 mm |
| Package depth | 455 mm |
| Package height | 290 mm |
| Package weight | 6.8 kg |
Logistics data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Pallet gross height | 100 cm |
| Pallet gross width | 120 cm |
| Pallet length (UK) | 189 cm |
| Products per pallet | 24 pc(s) |
| Products per pallet (UK) | 36 pc(s) |
| Products per pallet layer | 4 pc(s) |
| Products per pallet layer (UK) | 6 pc(s) |
Other features
| Specification | Value |
|---|---|
| Aspect ratio | 16:9 |
| Audio system | 1W |
| Dimensions (WxDxH) | 295 x 373 x 111 mm |
| Power requirements | 100-240 VAC ±10%, 50/60Hz |
| RS-232 ports | 1 |
| I/O ports | I/O Terminal: D-sub 9 pin x 1; I/O Signal: RS-232C |
