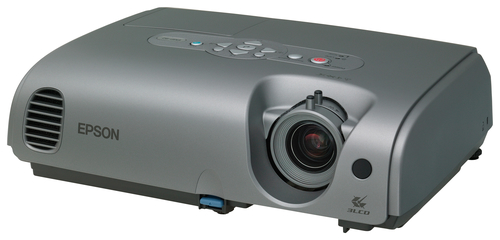

EMP-82
Model EMP-82Part no. V11H176040EAN 8715946273730
49 specifications
- Display1.52 cm (0.6")
- ConnectivityWired
- Noise30 dB
- Weight2.7 kg
- Projector brightness2000 ANSI lumens
- Light source typeLamp
Overview
- Display
- 1.52 cm (0.6")
- Connectivity
- Wired
- Noise
- 30 dB
- Weight
- 2.7 kg
- Projector brightness
- 2000 ANSI lumens
- Light source type
- Lamp
- Brand
- Epson
- Category
- Data Projector
- Model
- EMP-82
- Part numbers
- V11H176040, V11H176040DA, V11H176040LA
- EAN / UPC
- 8715946273730, 8715946308623
- Also known as
- Epson EMP-82
Specifications
49 specifications in 14 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 2000 ANSI lumens |
| Projection technology | LCD |
| Projector native resolution | XGA (1024x768) |
| Contrast ratio (typical) | 400:1 |
| Screen size compatibility | 762 - 7620 mm (30 - 300") |
| Number of colours | 16.78 million colours |
| Uniformity | 85% |
| Horizontal scan range | 15 - 92 kHz |
| Vertical scan range | 50 - 85 Hz |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 3000 h |
| Lamp type | UHE |
| Lamp power | 170 W |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
Features
| Specification | Value |
|---|---|
| Noise level | 30 dB |
| Country of origin | Japan |
| Plug and Play | Yes |
Multimedia
| Specification | Value |
|---|---|
| Number of built-in speakers | 1 |
Design
| Specification | Value |
|---|---|
| Market positioning | Home cinema |
Display
| Specification | Value |
|---|---|
| Display | LCD |
| Display diagonal | 1.52 cm (0.6") |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 240 W |
| Power consumption (standby) | 5 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 20 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.7 kg |
| Package width | 375 mm |
| Package depth | 425 mm |
| Package height | 185 mm |
| Package weight | 5.15 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
Technical details
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Logistics data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Pallet gross height | 100 cm |
| Pallet gross width | 120 cm |
| Pallet length (UK) | 2 m |
| Products per pallet | 50 pc(s) |
| Products per pallet (UK) | 60 pc(s) |
| Products per pallet layer | 5 pc(s) |
| Products per pallet layer (UK) | 6 pc(s) |
Other features
| Specification | Value |
|---|---|
| Aspect ratio | 4:3 |
| Audio input | 500mVrms / 47k-ohm |
| Connectivity technology | Wired |
| Dimensions (WxDxH) | 327 x 246 x 86 mm |
| Interface | USB 2.0 Type B |
| Power requirements | 100-240V ±10%, 50/60Hz |
| Tilt angle range | 0 - 10° |
| Video in | Composite Video / S-Video / Component Video / Video-RGB |
| I/O ports | Composite Video: RCA x 1; S-Video: Mini DIN Component Video: Mini D-sub 15pin Video-RGB: Mini D-sub 15pin Stereo mini jack x 2 USB Serial |
